OnStar control button unit, one or more buttons are not functioning: Notes

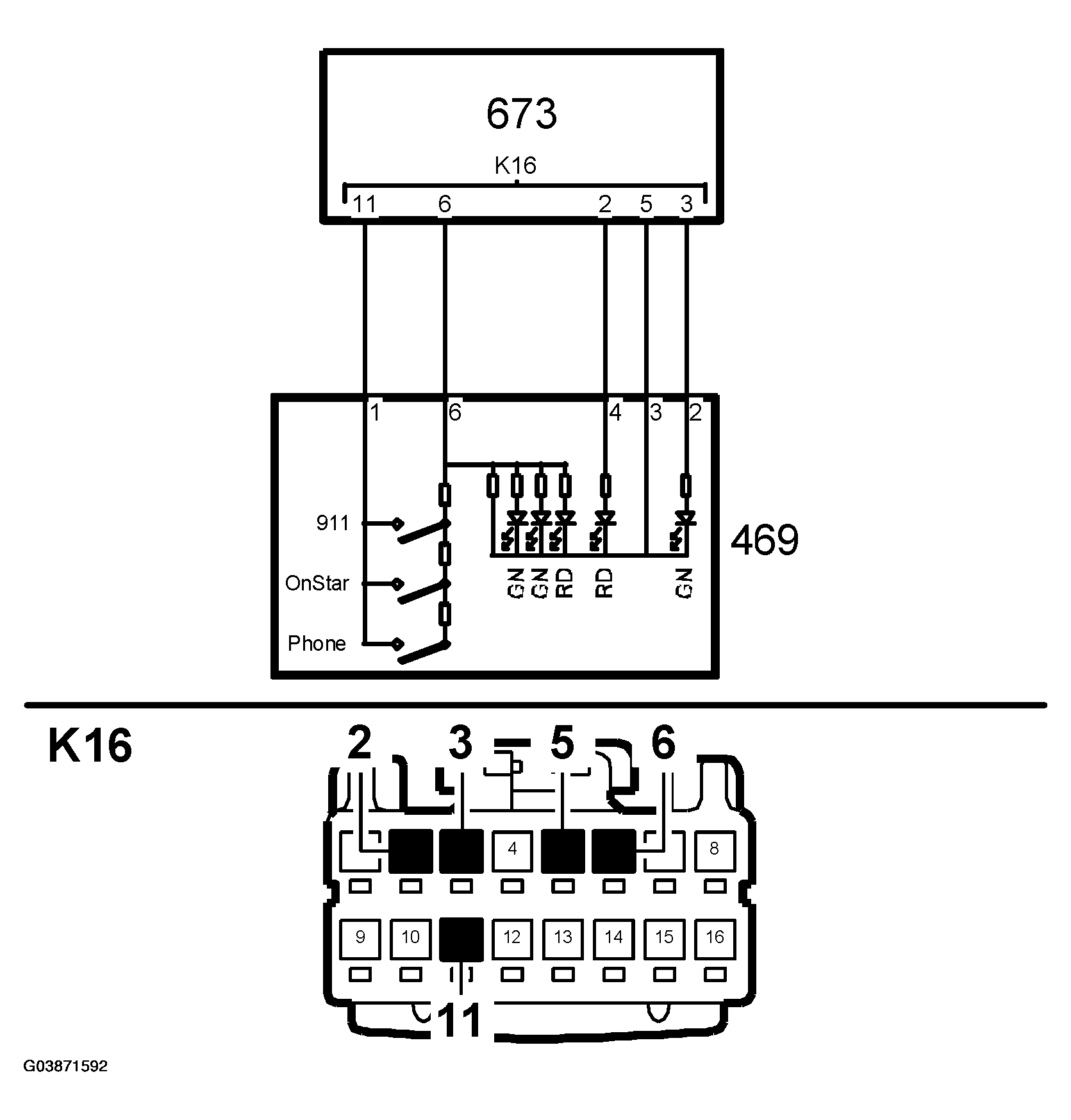

Fig 1: OnStar Control Button Unit, One Or More Buttons Are Not Functioning - Circuit Diagram
G03871592Courtesy of SAAB-SCANIA OF AMERICA, INC.
IMPORTANT: Before work begins, contact and inform the OnStar Call Centre (OCC) that a service is to be carried out on the unit.
