DTC U1000: VCIM/OIM Communication Error: Notes

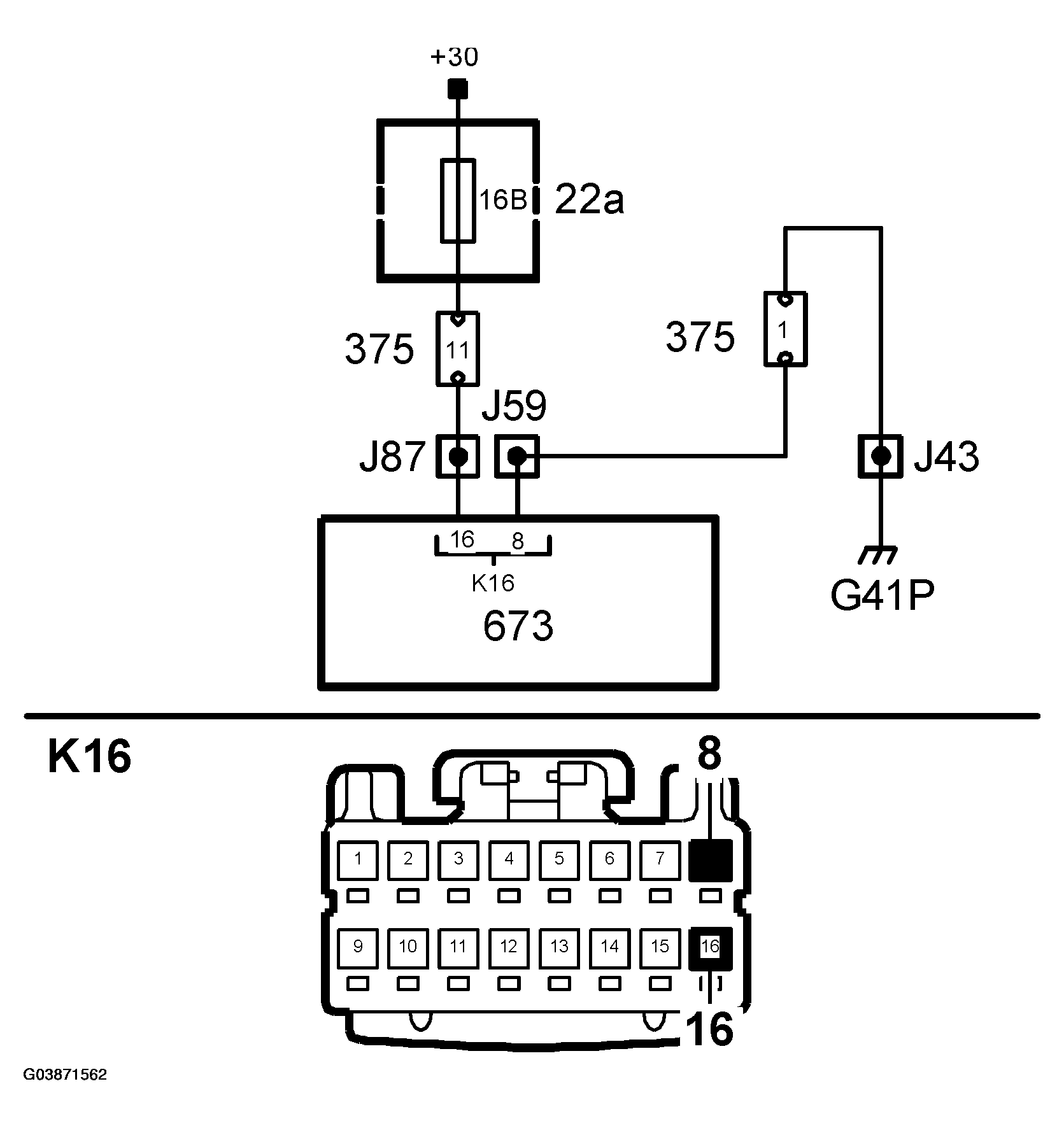

Fig 1: U1000: VCIM/OIM Communication Error - Circuit Diagram
G03871562Courtesy of SAAB-SCANIA OF AMERICA, INC.

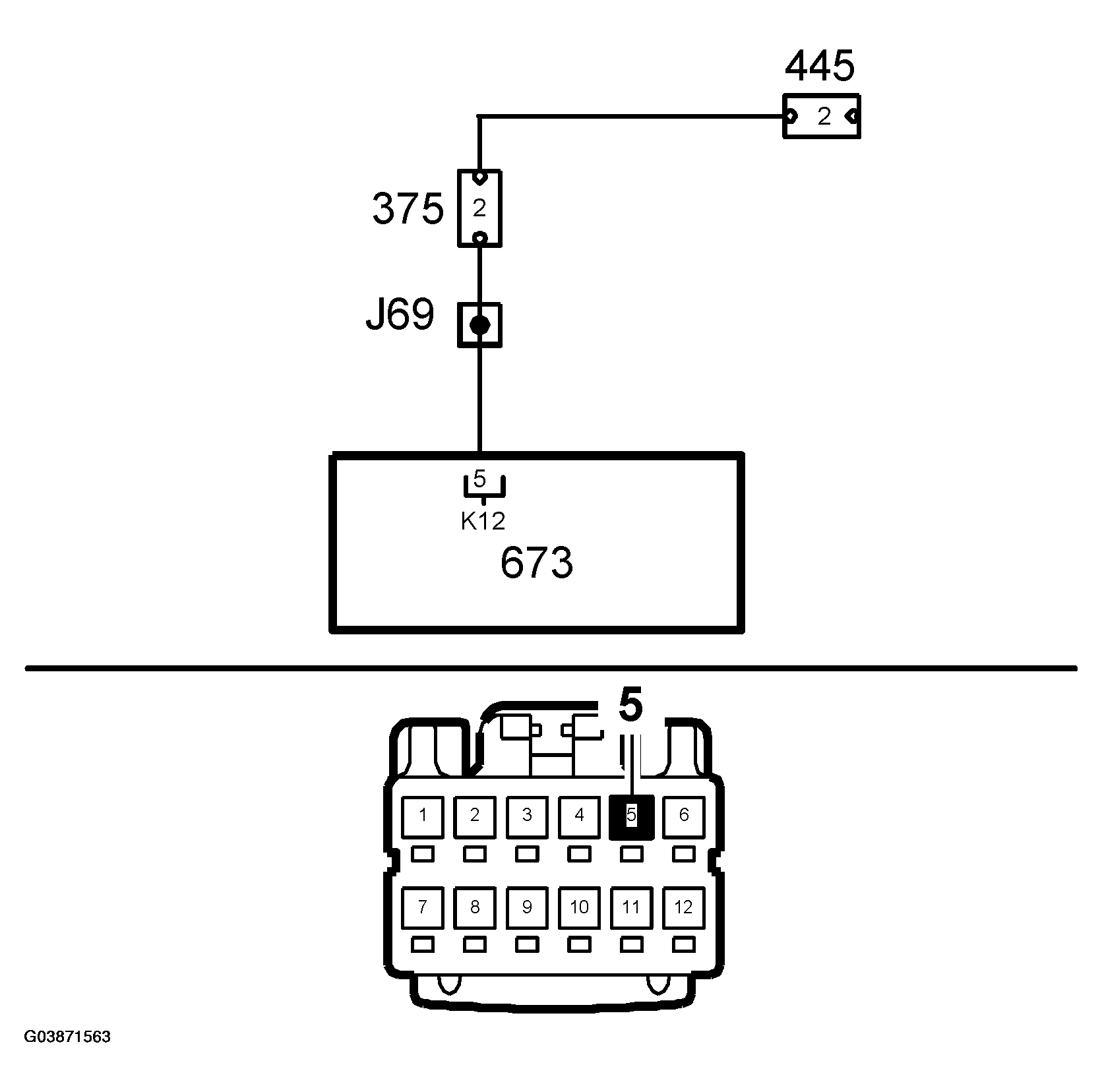

Fig 2: U1000: VCIM/OIM Communication Error - Circuit Diagram
G03871563Courtesy of SAAB-SCANIA OF AMERICA, INC.

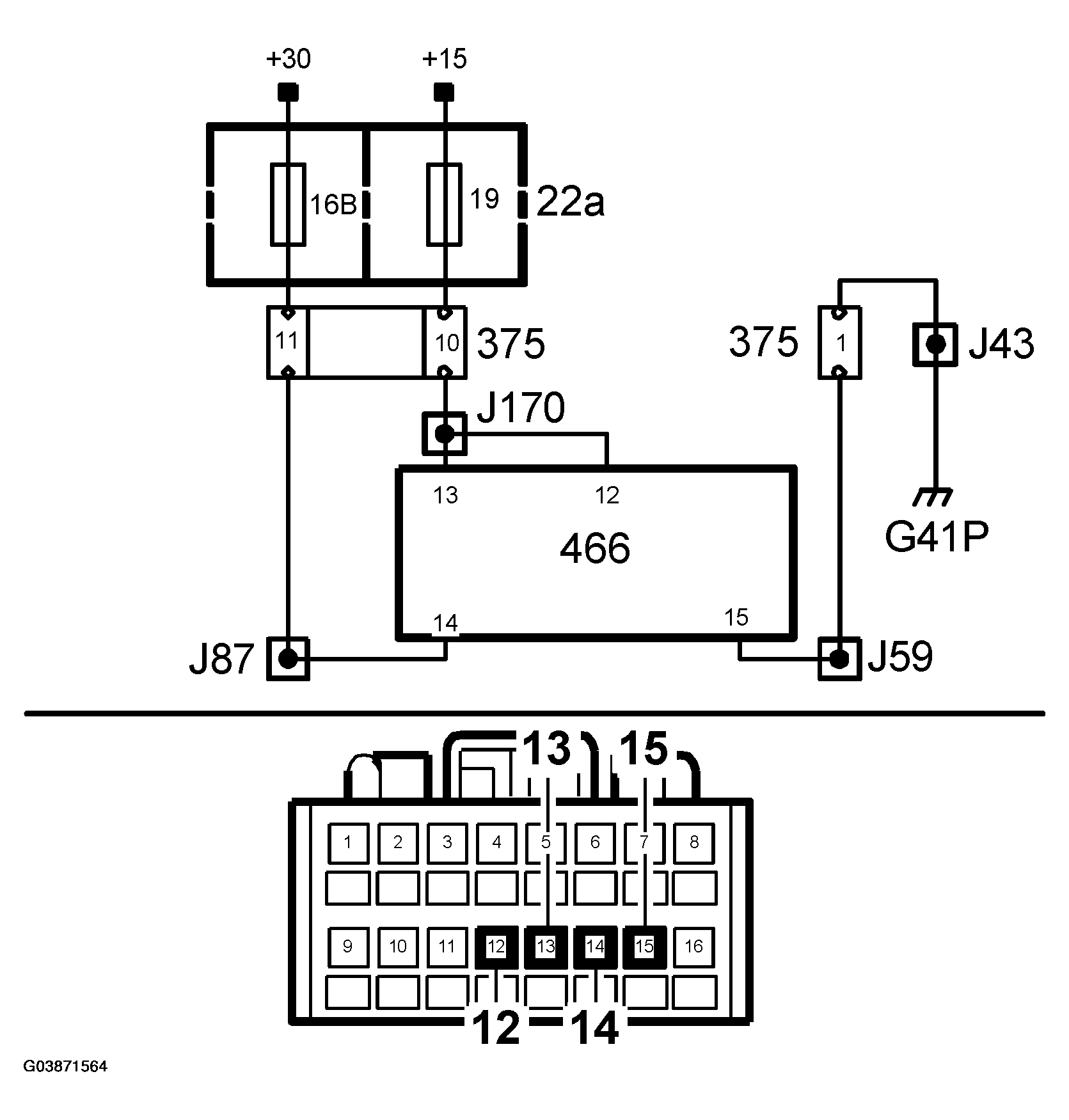

Fig 3: U1000: VCIM/OIM Communication Error - Circuit Diagram
G03871564Courtesy of SAAB-SCANIA OF AMERICA, INC.
