DTC B2482: OnStar Button Stuck: Notes

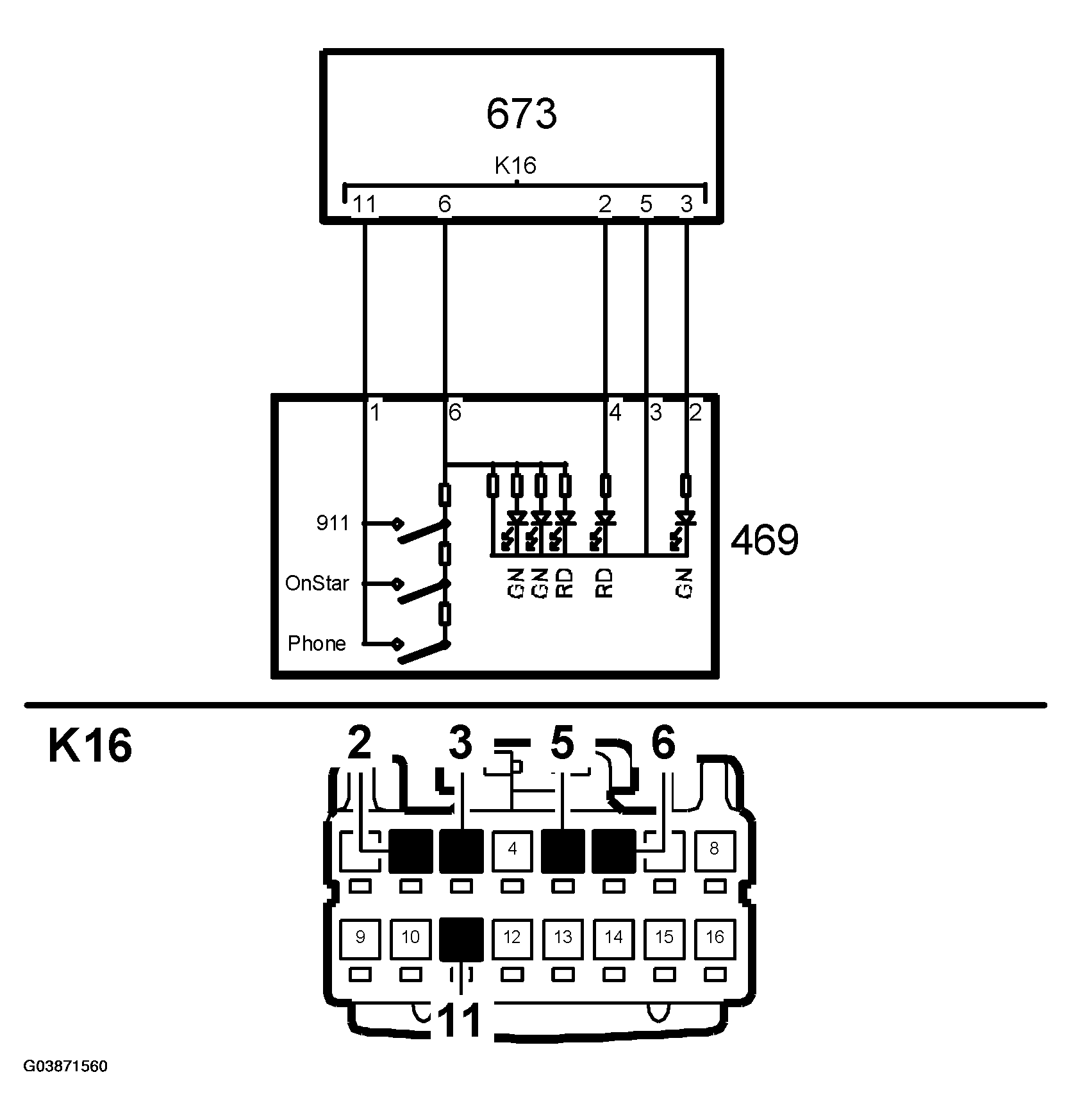

Fig 1: B2482: OnStar Button Stuck - Circuit Diagram
G03871560Courtesy of SAAB-SCANIA OF AMERICA, INC.
IMPORTANT: Before work begins, contact and inform the OnStar Call Centre (OCC) that a service is to be carried out on the unit.
