SRS/Airbag control module (331)

LHD

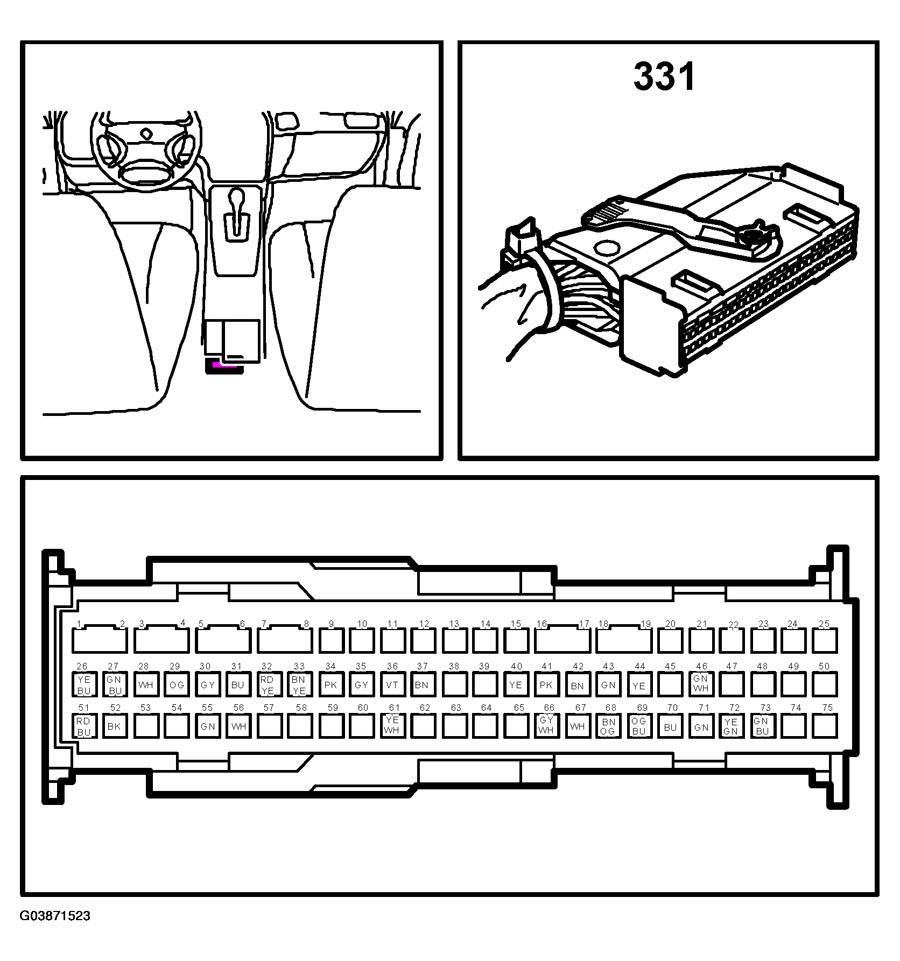

Fig 1: SRS/Airbag Control Module (331) - LHD
G03871523Courtesy of SAAB-SCANIA OF AMERICA, INC.

RHD

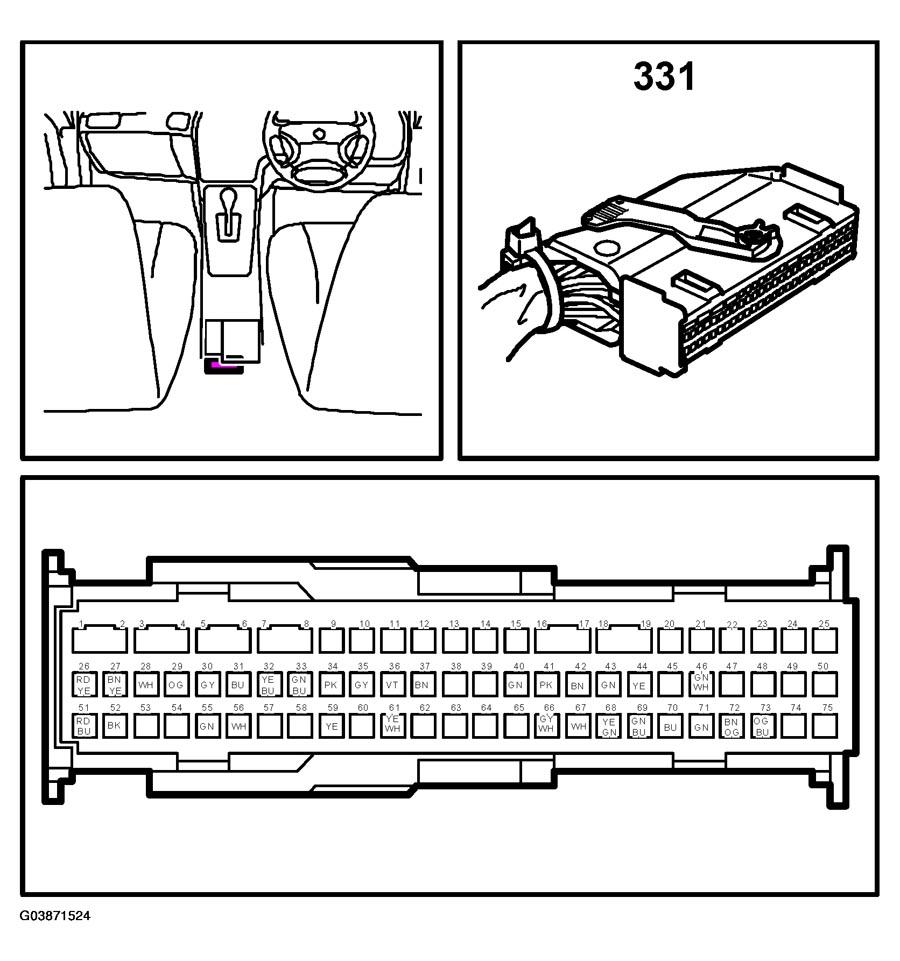

Fig 2: SRS/Airbag Control Module (331) - RHD
G03871524Courtesy of SAAB-SCANIA OF AMERICA, INC.
