Home >> Saab >> 2005 >> 9-5 Linear, Standard >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> ONSTAR - 9-5 >> Component location >> Main unit, audio system (353)

Main unit, audio system (353)

Without navigation system

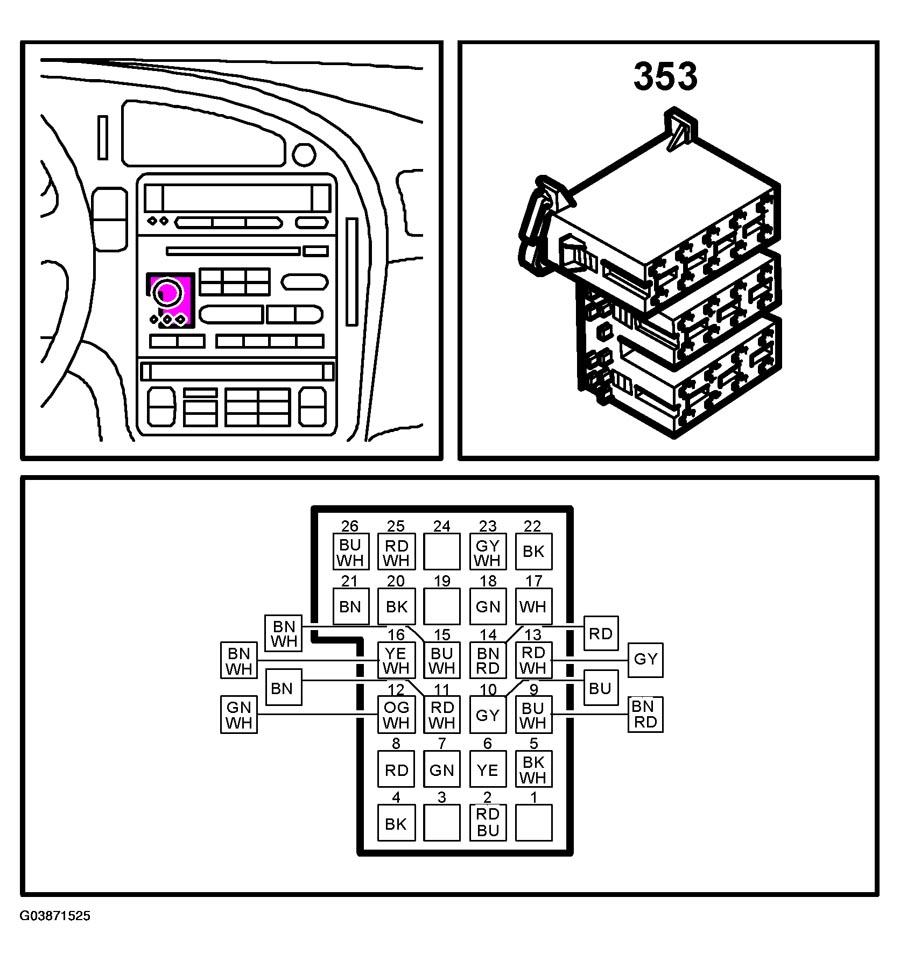

Fig 1: Main Unit, Audio System (353) - Without Navigation System
G03871525Courtesy of SAAB-SCANIA OF AMERICA, INC.

With navigation system 4D

Fig 2: Main Unit, Audio System (353) - With Navigation System 4D
G03871526Courtesy of SAAB-SCANIA OF AMERICA, INC.

With navigation system 5D

Fig 3: Main Unit, Audio System (353) - With Navigation System 5D
G03871527Courtesy of SAAB-SCANIA OF AMERICA, INC.
