Head unit, audio/navigation (635)

K16A

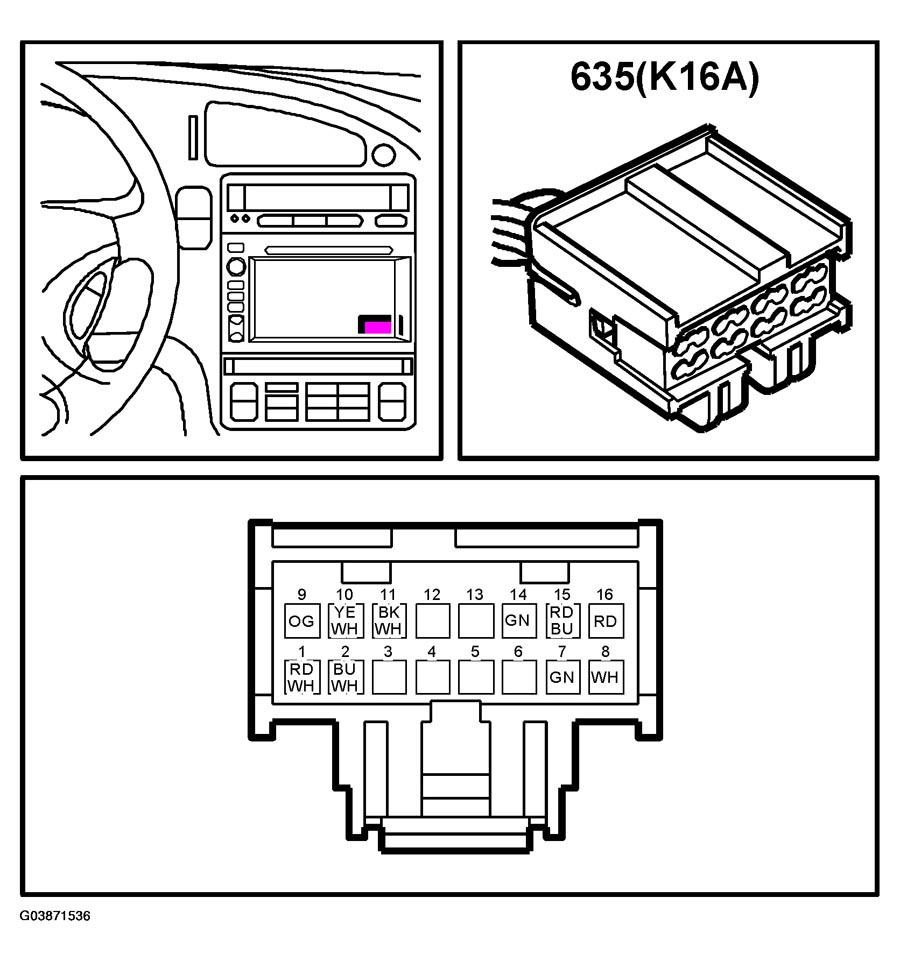

Fig 1: Head Unit, Audio/Navigation (635) (K16A) - Connector Location
G03871536Courtesy of SAAB-SCANIA OF AMERICA, INC.

K16B

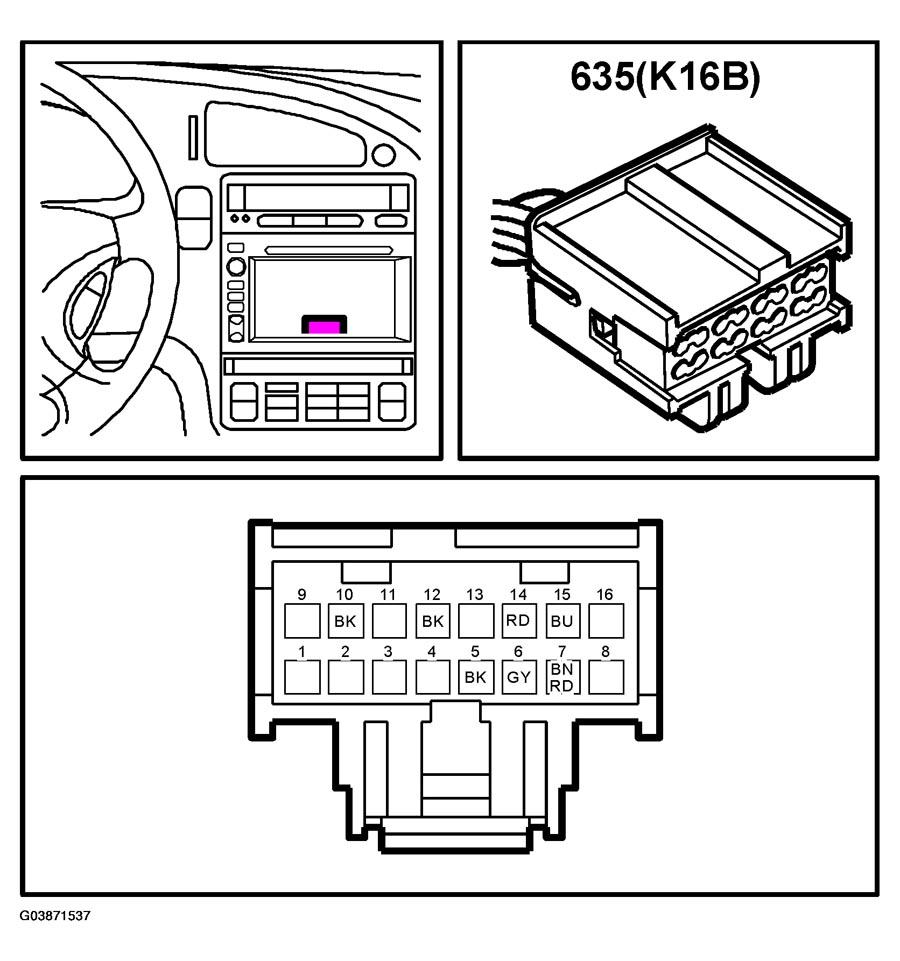

Fig 2: Head Unit, Audio/Navigation (635) (K16B) - Connector Location
G03871537Courtesy of SAAB-SCANIA OF AMERICA, INC.

K16C

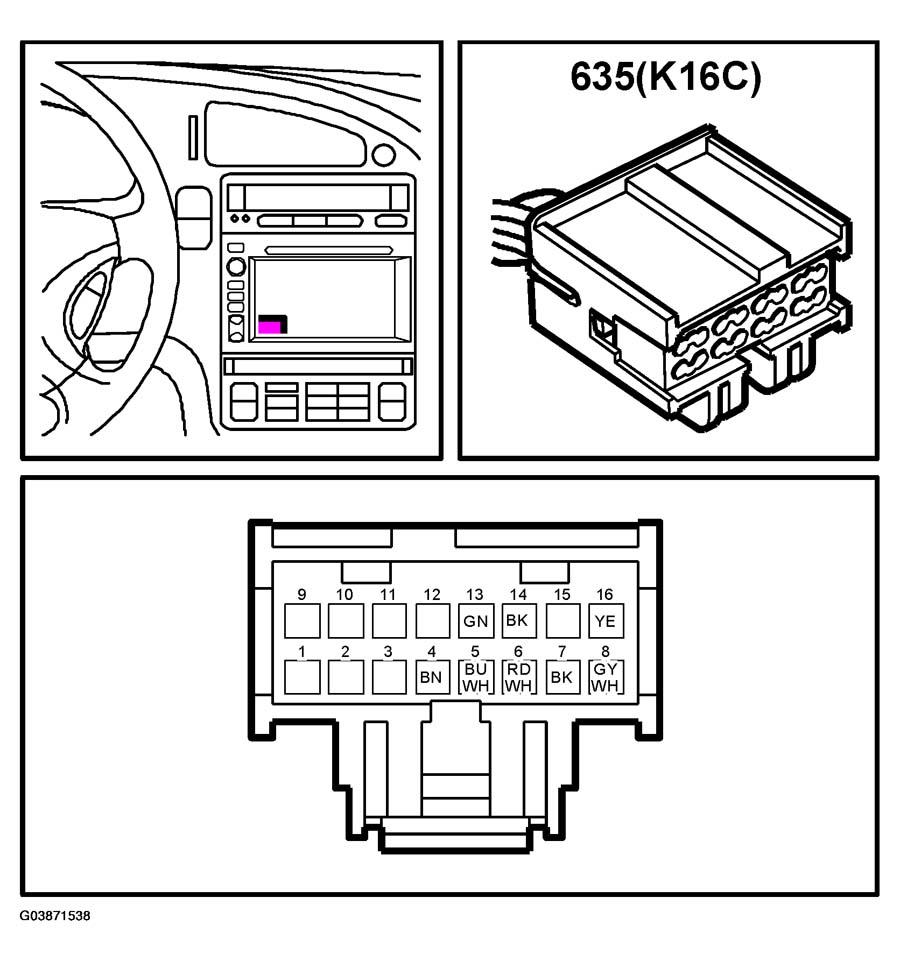

Fig 3: Head Unit, Audio/Navigation (635) (K16C) - Connector Location
G03871538Courtesy of SAAB-SCANIA OF AMERICA, INC.
