Grounding point, G41P: Notes

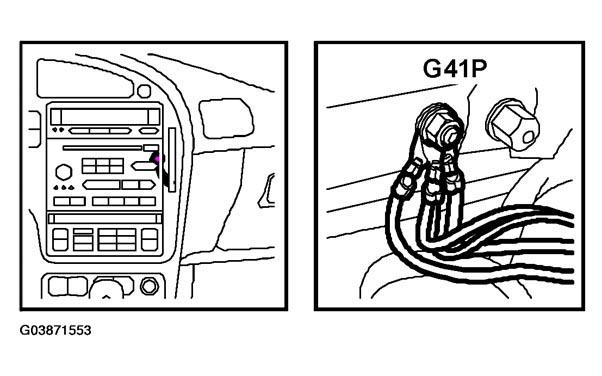

Fig 1: Identifying Grounding Point, G41P

Courtesy of SAAB-SCANIA OF AMERICA, INC.

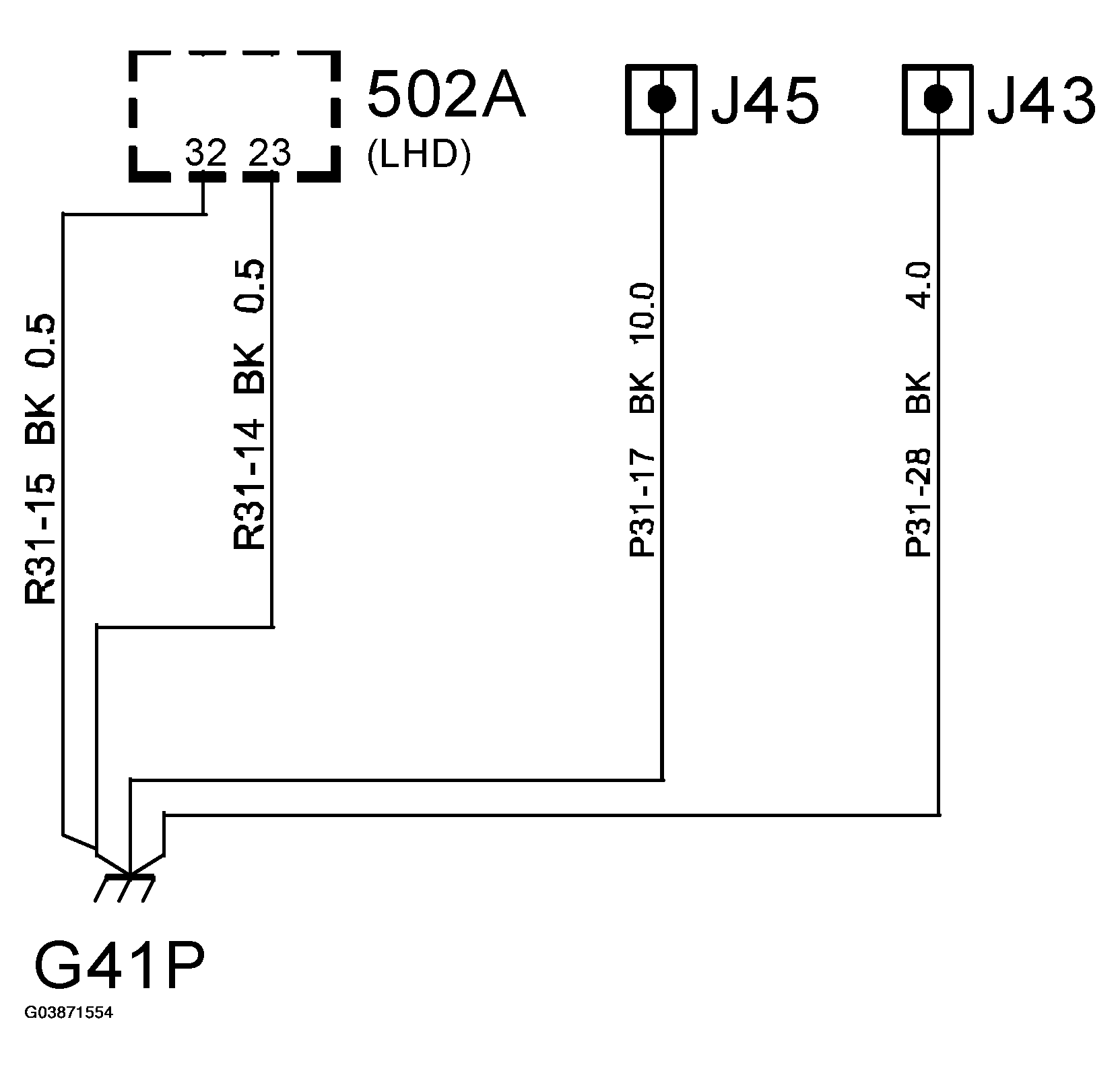

Fig 2: Grounding Point, G41P - Circuit Diagram

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Location:  Left grounding screw on middle of knee member (in cabin)
