DICE control module (628)

LHD

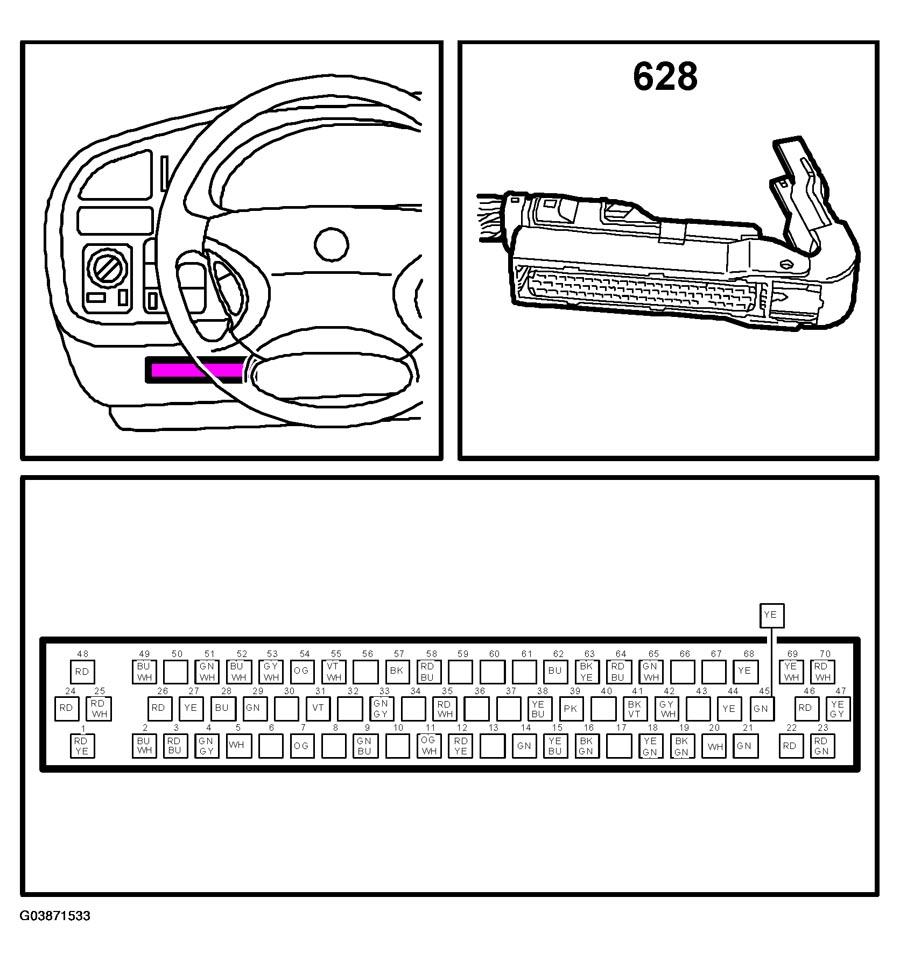

Fig 1: DICE Control Module (628) (LHD) - Connector Location
G03871533Courtesy of SAAB-SCANIA OF AMERICA, INC.

RHD

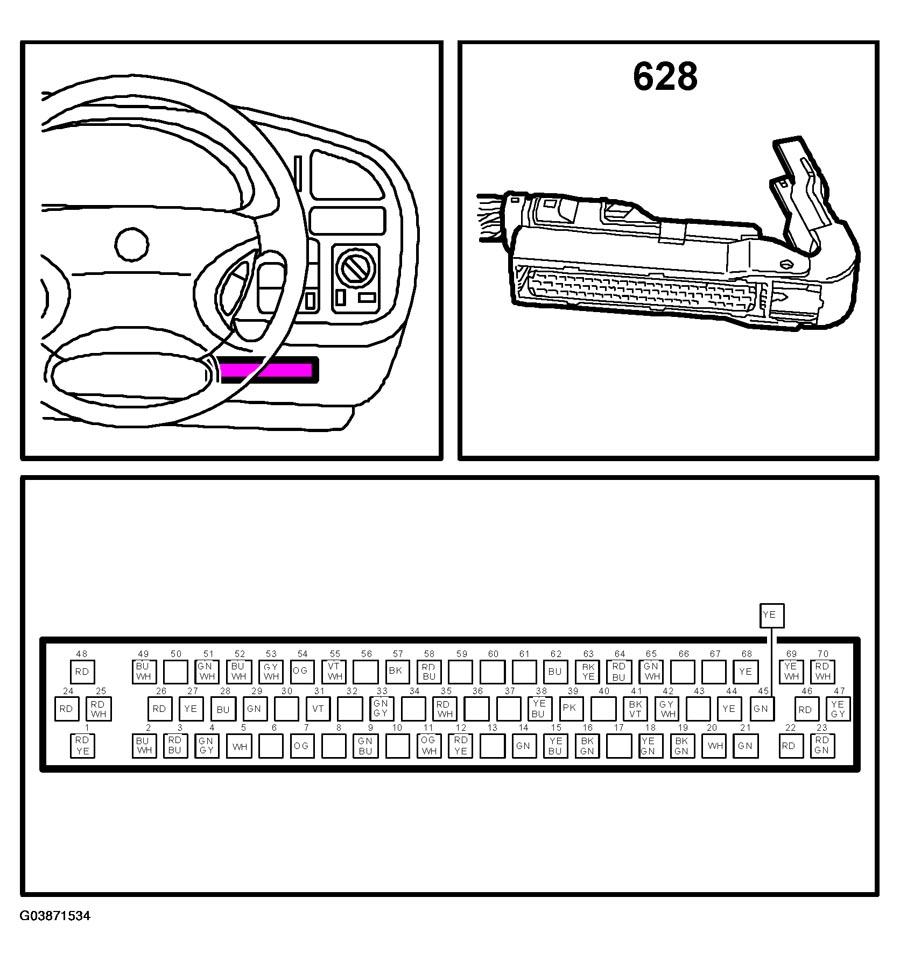

Fig 2: DICE Control Module (628) (RHD) - Connector Location
G03871534Courtesy of SAAB-SCANIA OF AMERICA, INC.
