Crimp connection J43, instrument harness

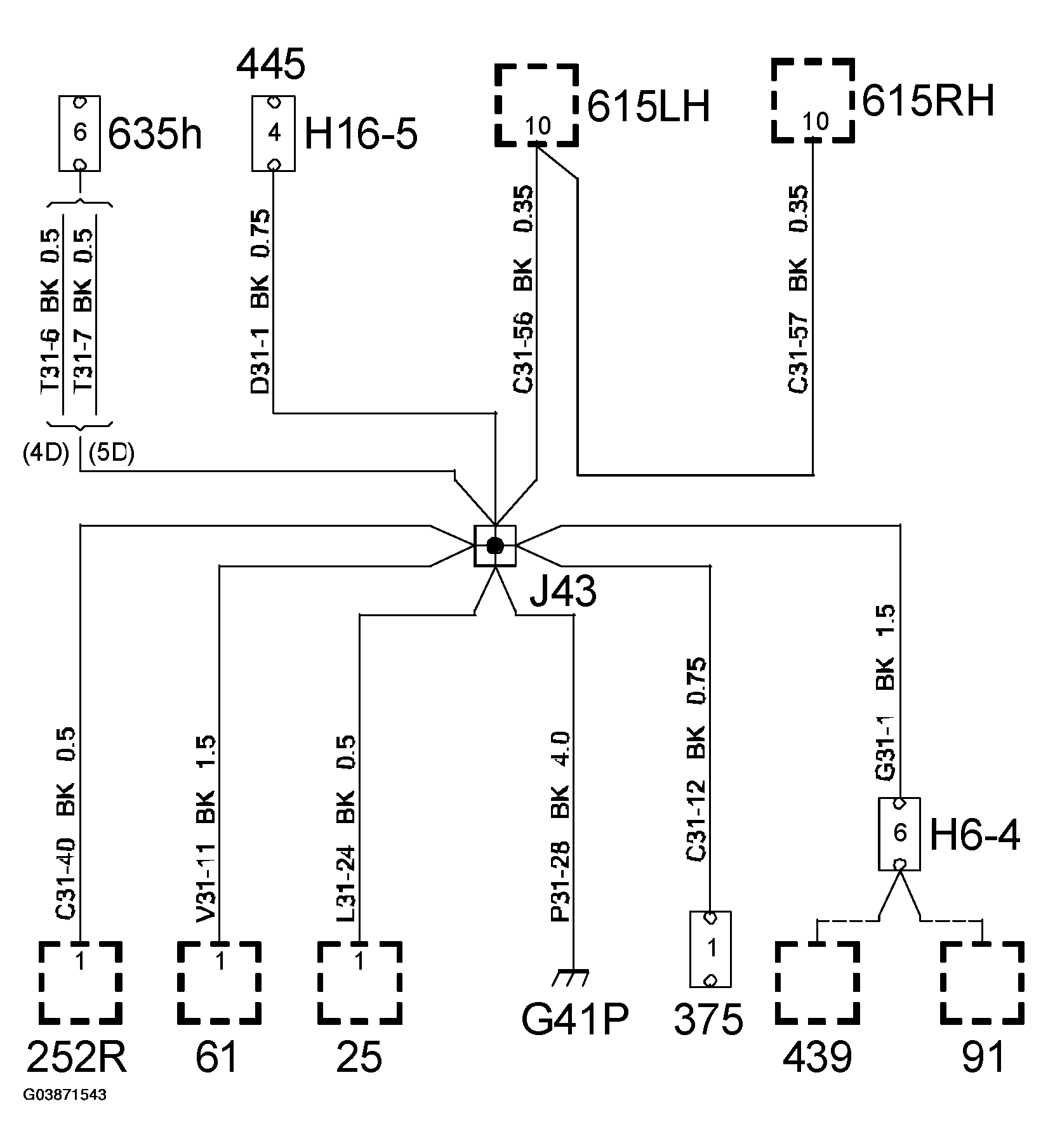

Fig 1: Crimp Connection J43, Instrument Harness - Circuit Diagram

G03871543

Courtesy of SAAB-SCANIA OF AMERICA, INC.
