Control module, OnStar, VCIM (673): 5D

K12

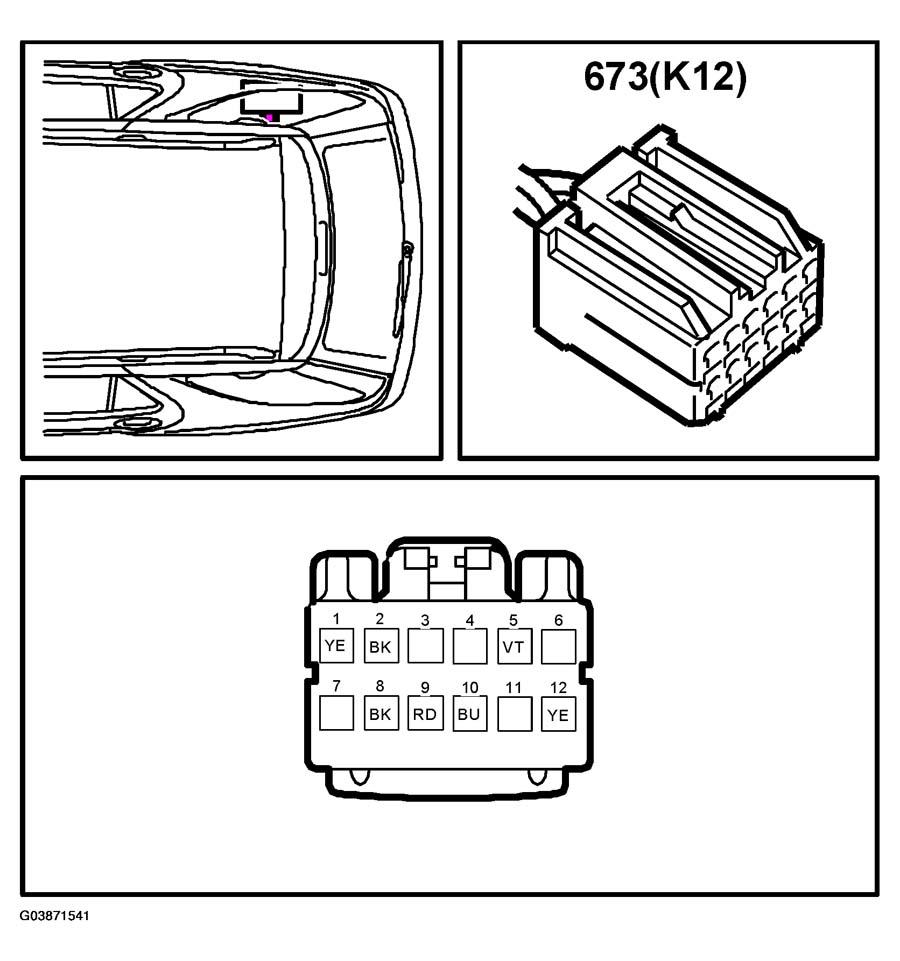

Fig 1: Control Module, OnStar, VCIM (673) (5D - K12) - Connector Location
G03871541Courtesy of SAAB-SCANIA OF AMERICA, INC.

K16

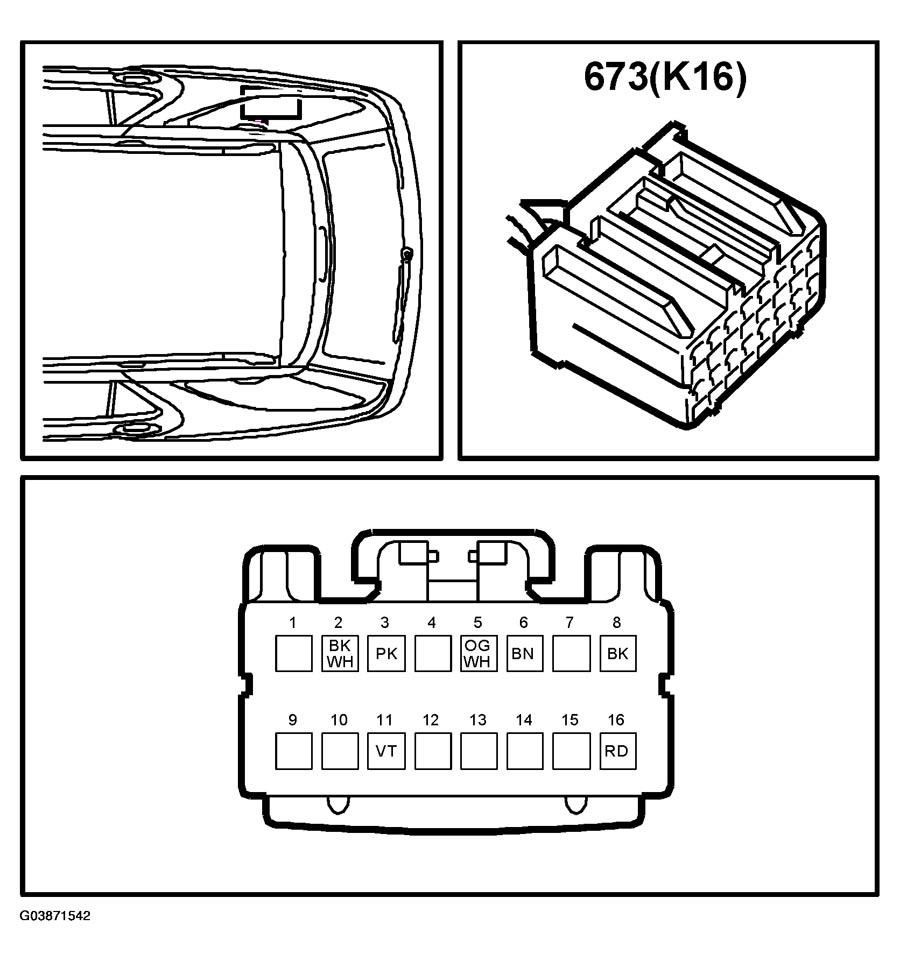

Fig 2: Control Module, OnStar, VCIM (673) (5D - K16) - Connector Location
G03871542Courtesy of SAAB-SCANIA OF AMERICA, INC.
