Control module, OnStar, VCIM (673): 4D

K12

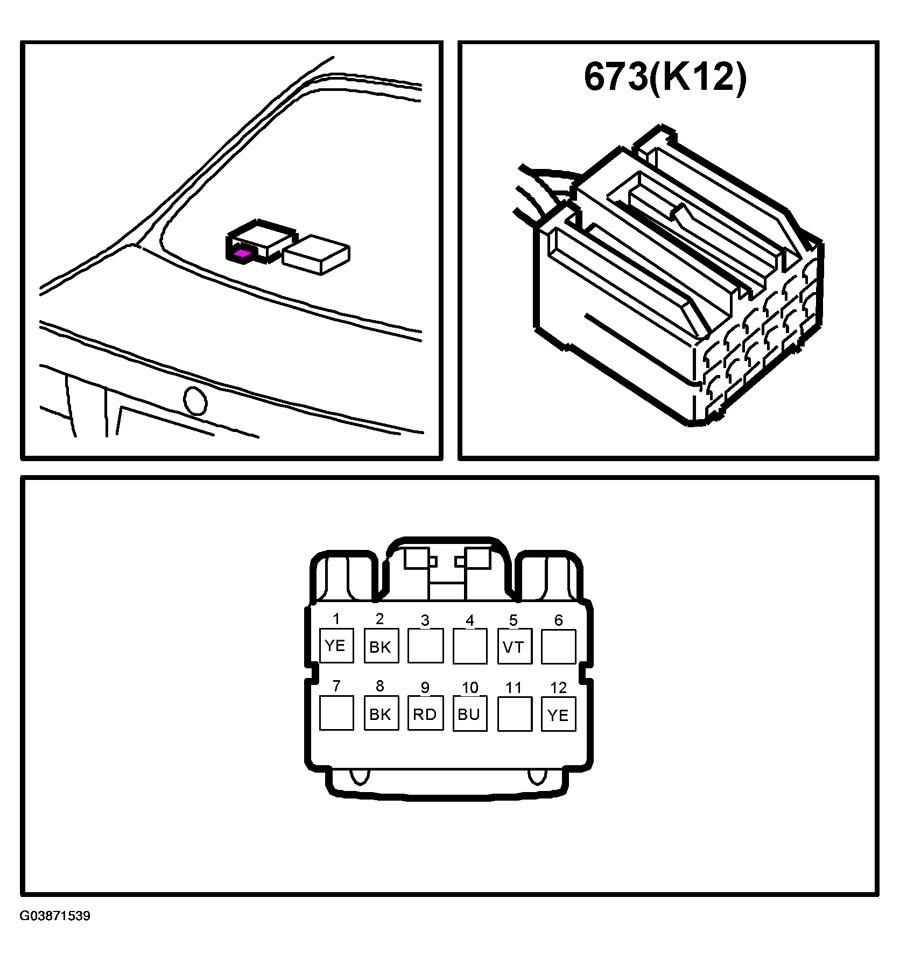

Fig 1: Control Module, OnStar, VCIM (673) (4D - K12) - Connector Location
G03871539Courtesy of SAAB-SCANIA OF AMERICA, INC.

K16

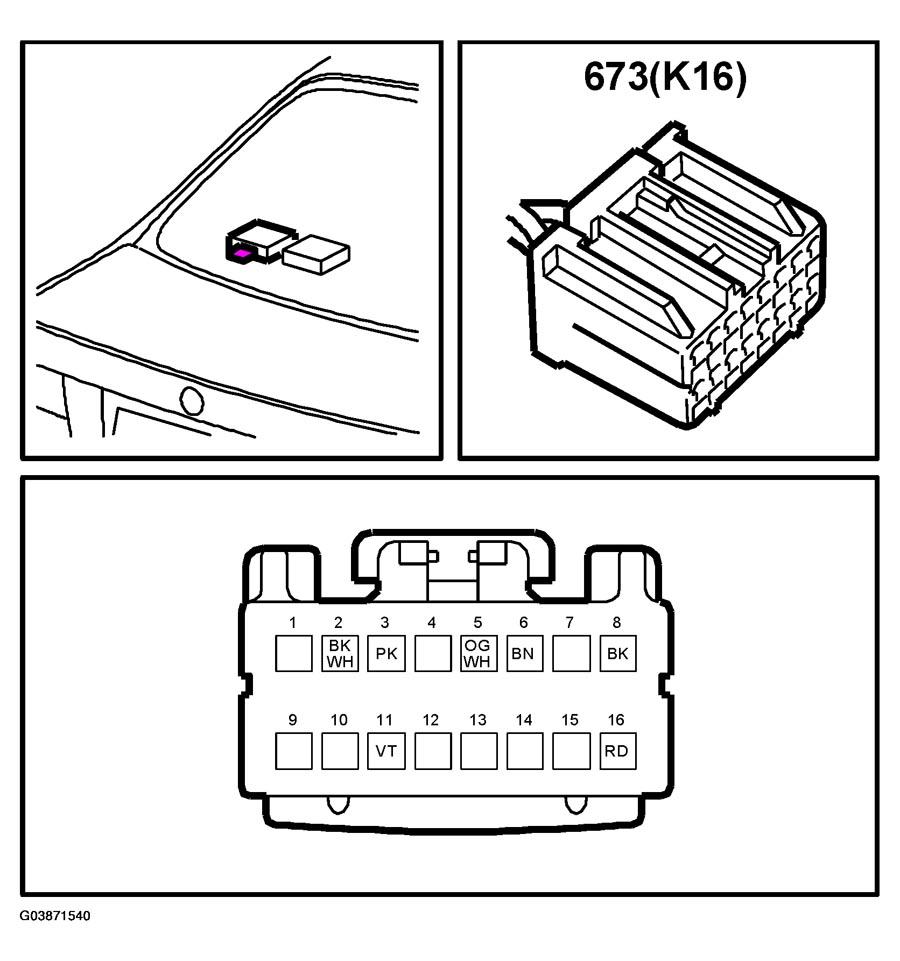

Fig 2: Control Module, OnStar, VCIM (673) (4D - K16) - Connector Location
G03871540Courtesy of SAAB-SCANIA OF AMERICA, INC.
