Control module, OnStar, OIM (466)

4D

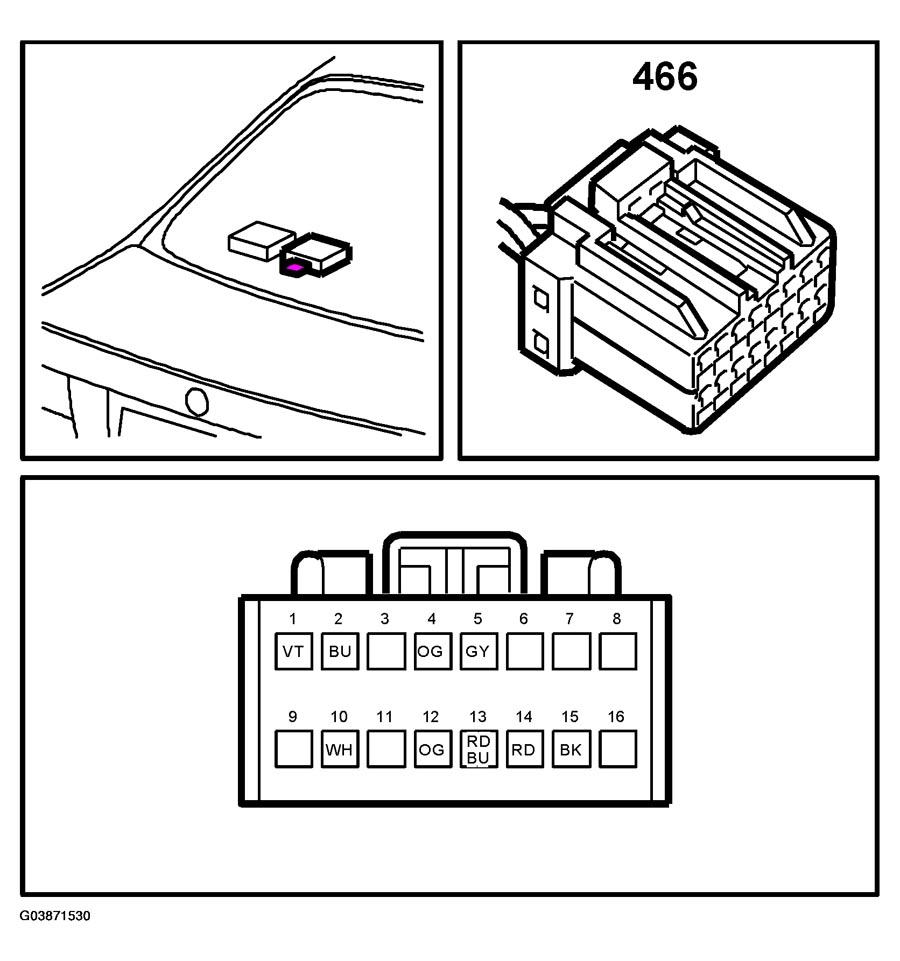

Fig 1: Control Module, OnStar, OIM (466) (4D) - Connector Location
G03871530Courtesy of SAAB-SCANIA OF AMERICA, INC.

5D

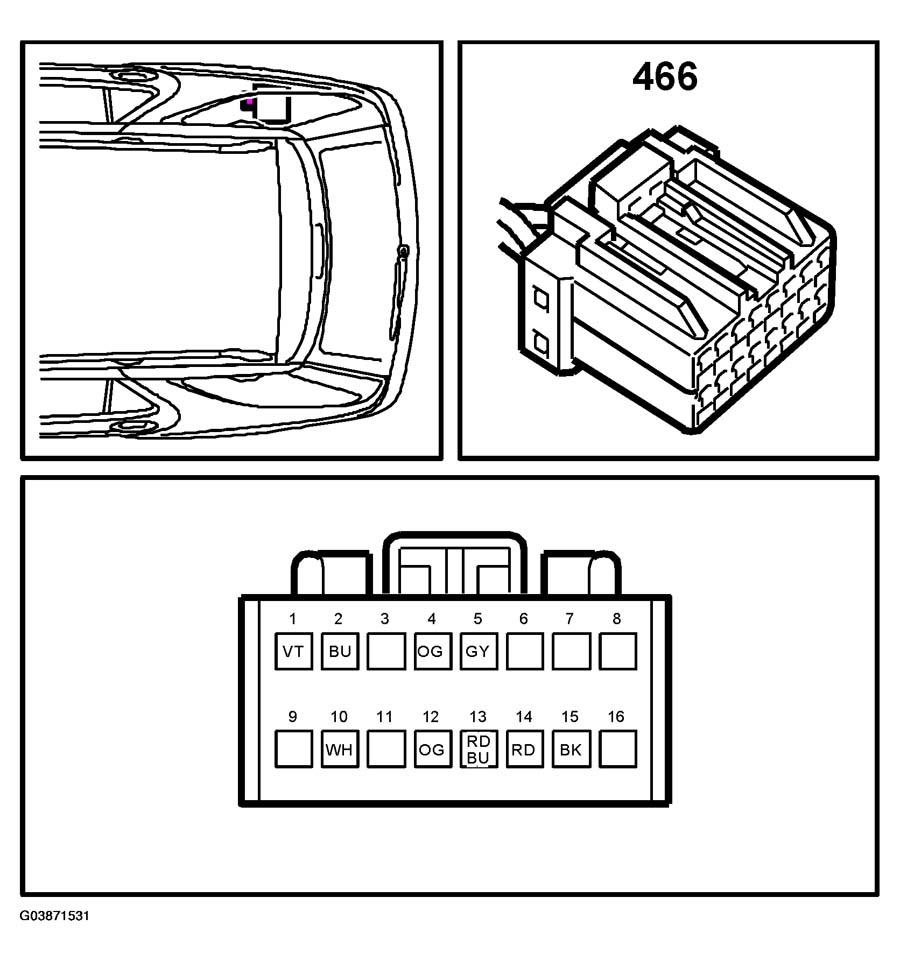

Fig 2: Control Module, OnStar, OIM (466) (5D) - Connector Location
G03871531Courtesy of SAAB-SCANIA OF AMERICA, INC.
