To remove

  1. Remove the glass from the front roof console.

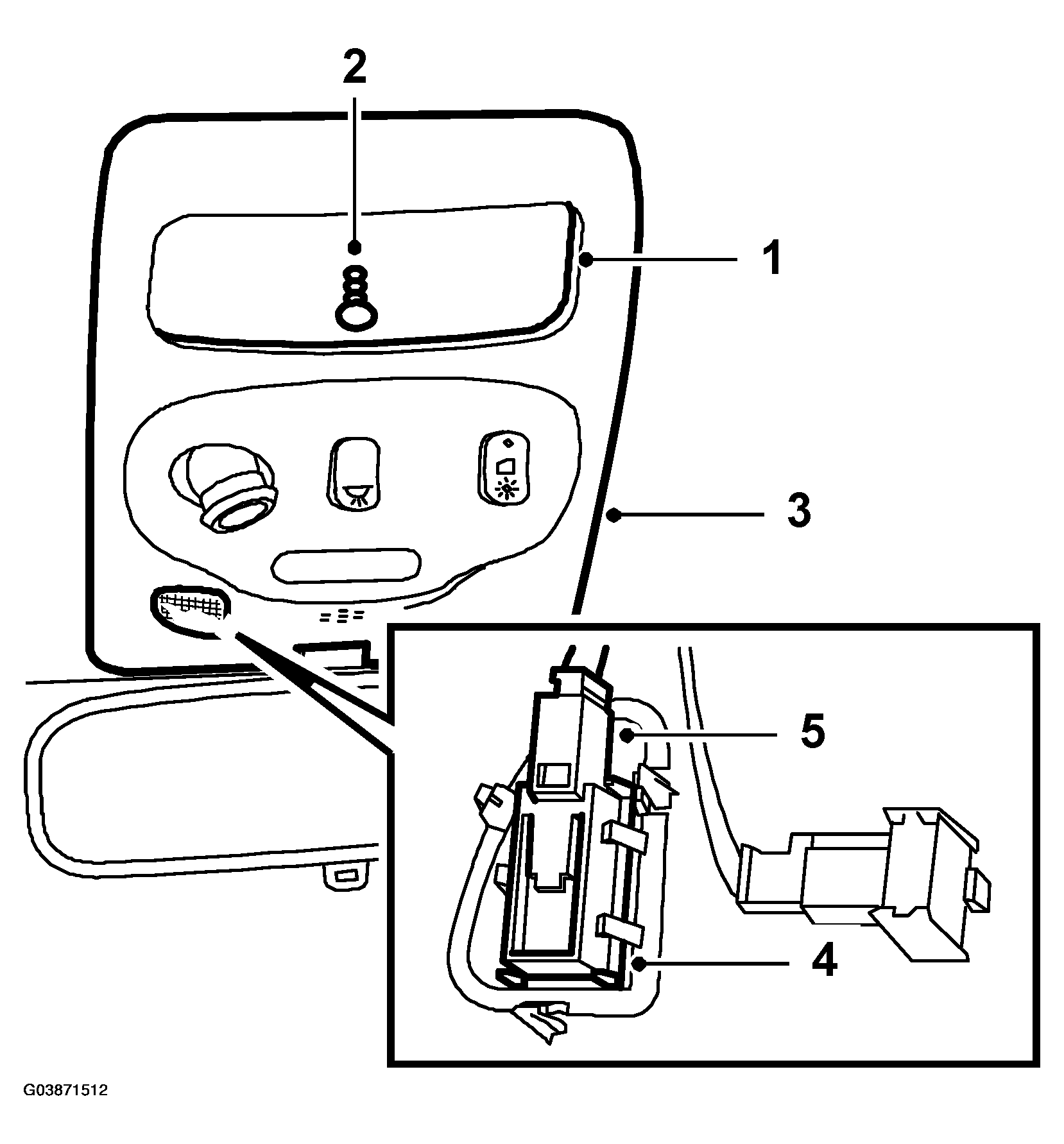

    Fig 1: Illustration For Step 1-5
    G03871512Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Remove the screw holding the roof console.
  3. Remove the roof console (allow it to hang from the cables).
  4. Detach the microphone from the console.
  5. Detach the microphone connector.
