To remove

  1. Remove the control module, OIM, OnStar.
  2. Tilt up the control module and unplug the connector.

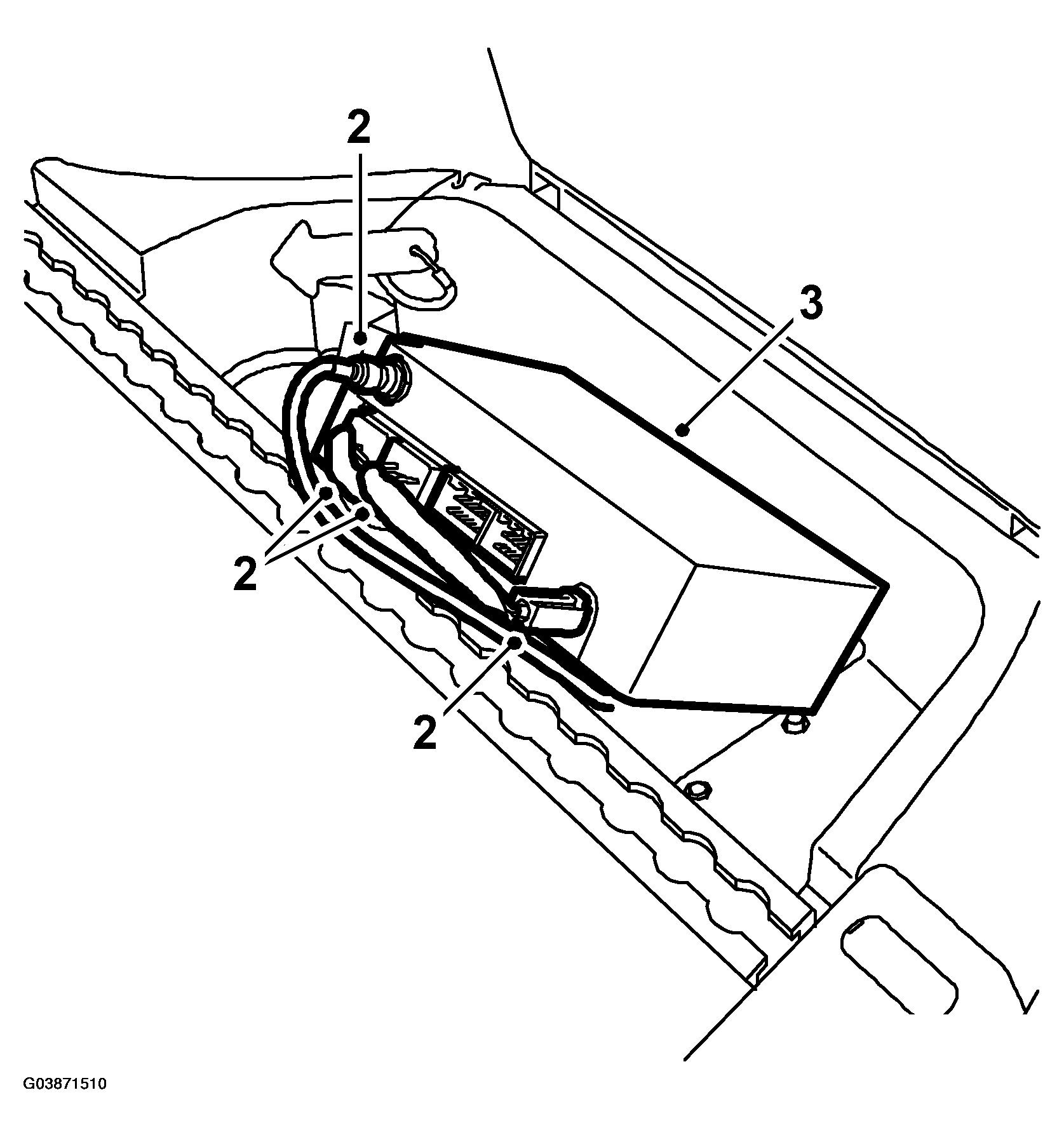

    Fig 1: Illustration For Step 2-3
    G03871510Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Lift away the control module.
