To remove

  1. Remove the key from the ignition switch.
  2. Remove the parcel shelf trim.
  3. Remove the nuts.

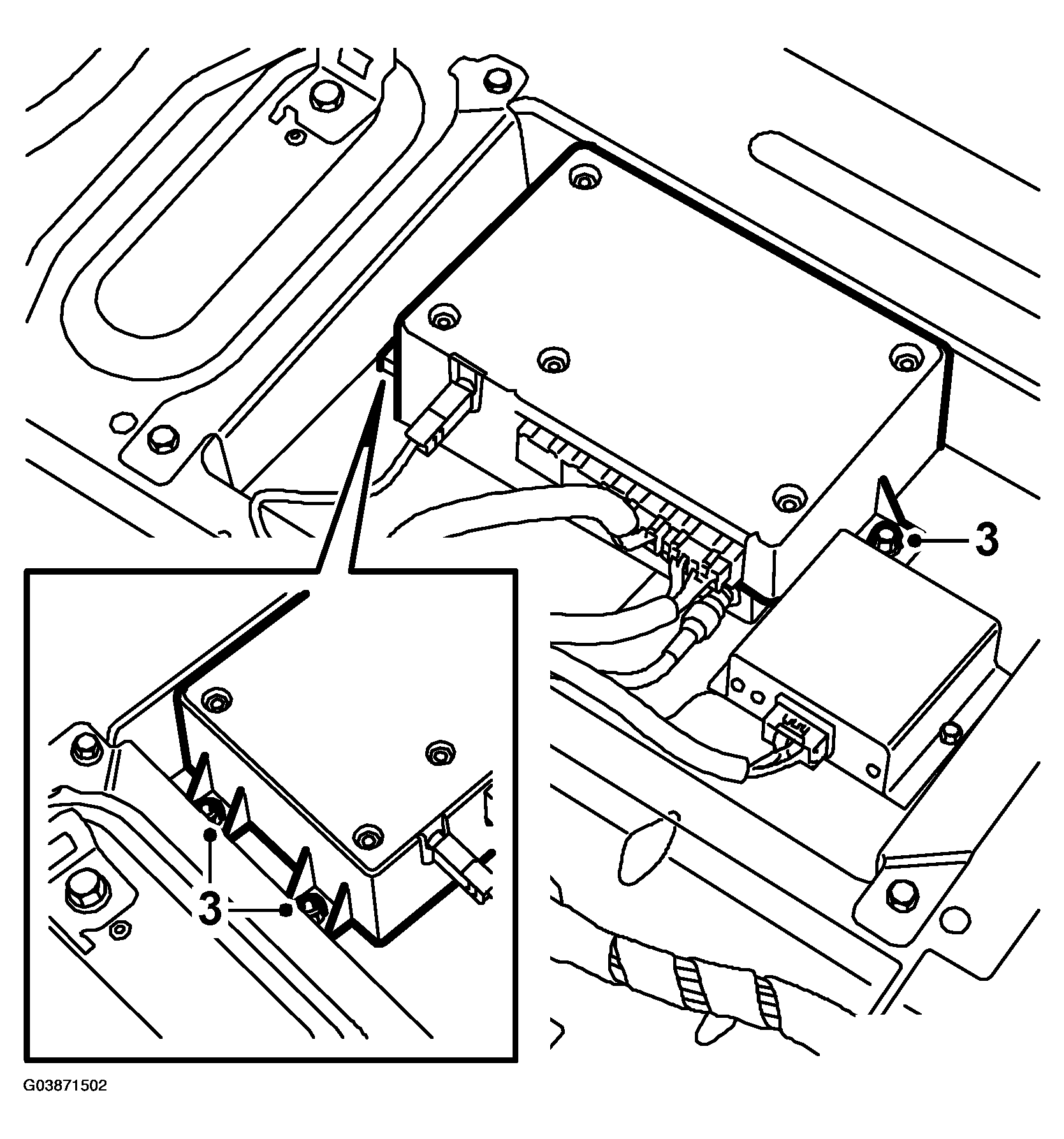

    Fig 1: Illustration For Step 3
    G03871502Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Lift up the control module and turn it over.

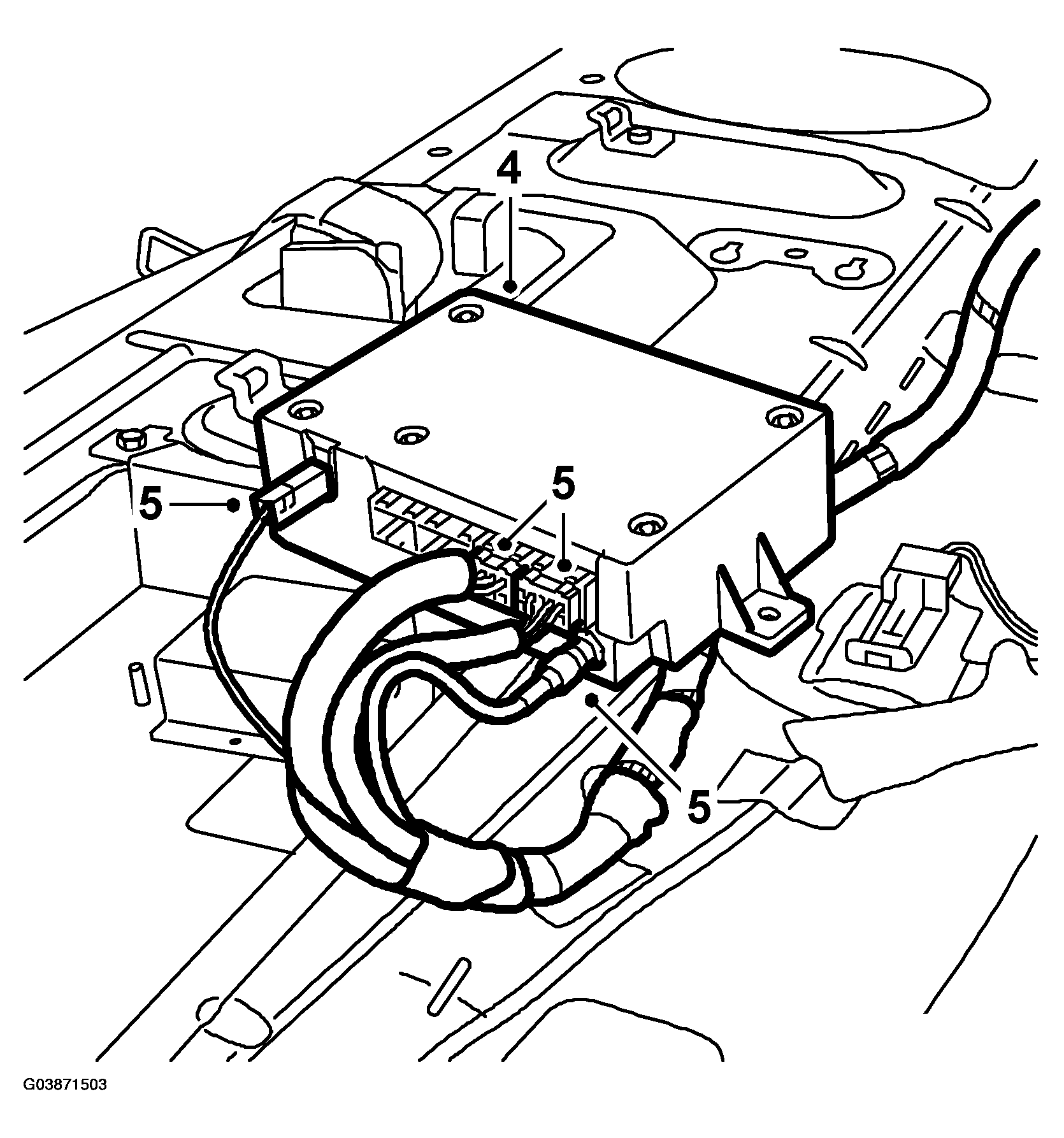

    Fig 2: Illustration For Step 4-5
    G03871503Courtesy of SAAB-SCANIA OF AMERICA, INC.
  5. Unplug the control module connector.
  6. Lift away the control module.
