To remove

  1. Remove the key from the ignition switch.
  2. Remove the cover from the RH side of the luggage compartment.
  3. Unplug the control module connector.

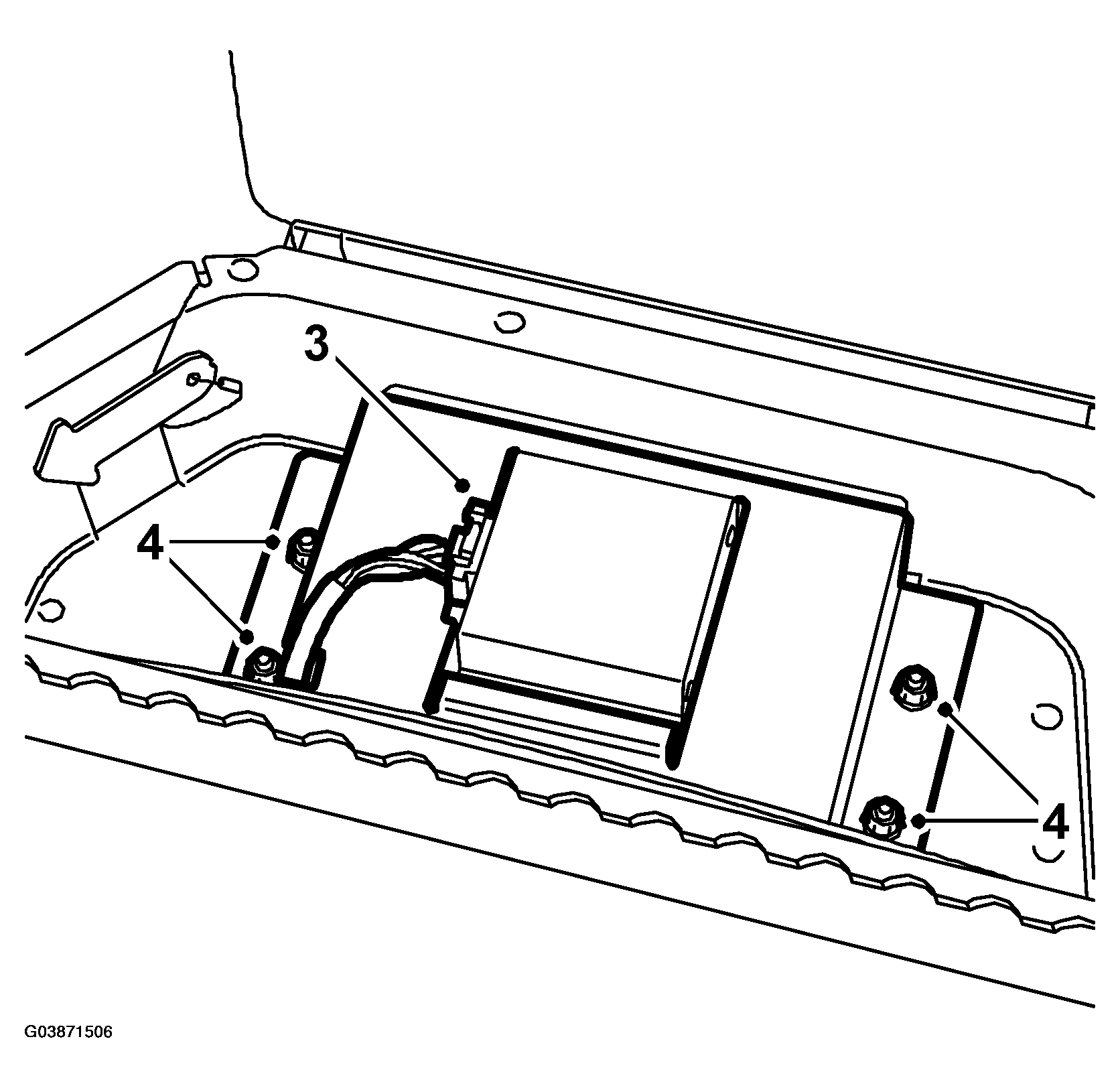

    Fig 1: Illustration For Step 3-4
    G03871506Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Remove the bracket.

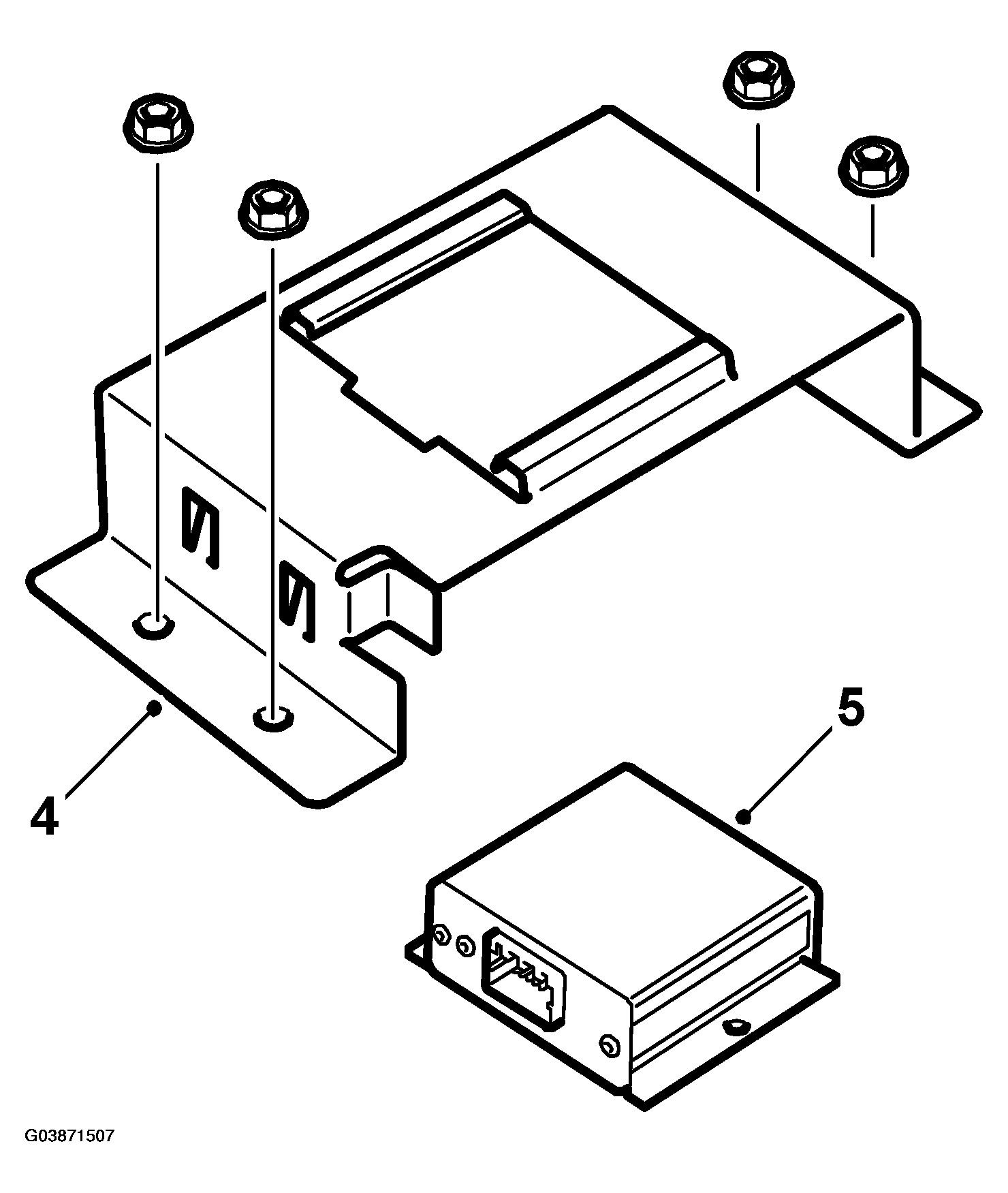

    Fig 2: Illustration For Step 4-5
    G03871507Courtesy of SAAB-SCANIA OF AMERICA, INC.
  5. Lift away the control module.
