To remove

  1. Remove the key from the ignition switch.
  2. Remove the parcel shelf trim.
  3. Unplug the control module connector.

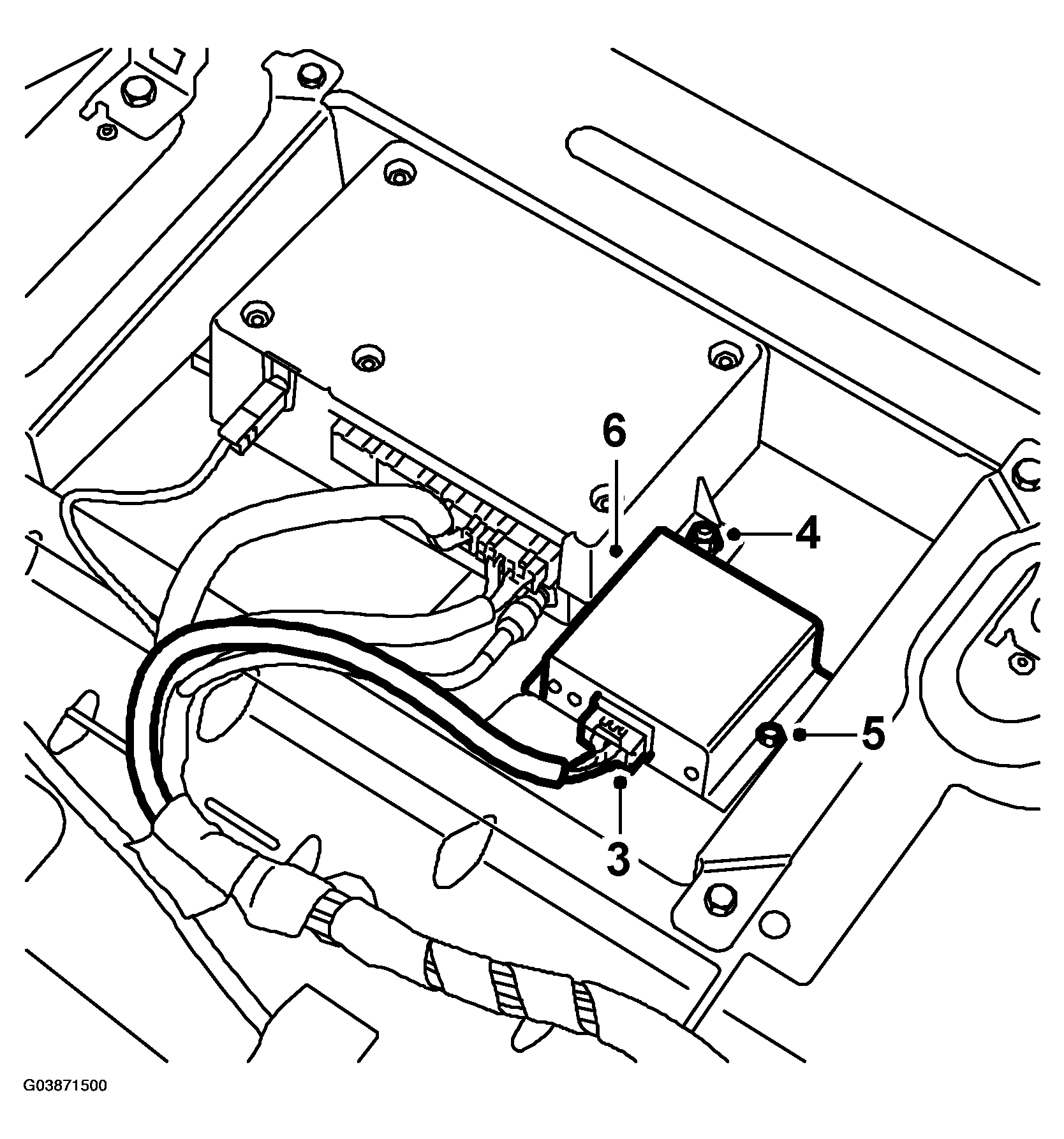

    Fig 1: Illustration For Step 3-6
    G03871500Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Undo the nut.
  5. Remove the bolt.
  6. Lift out the control module.
