To fit

  1. Place the control module in the correct position.

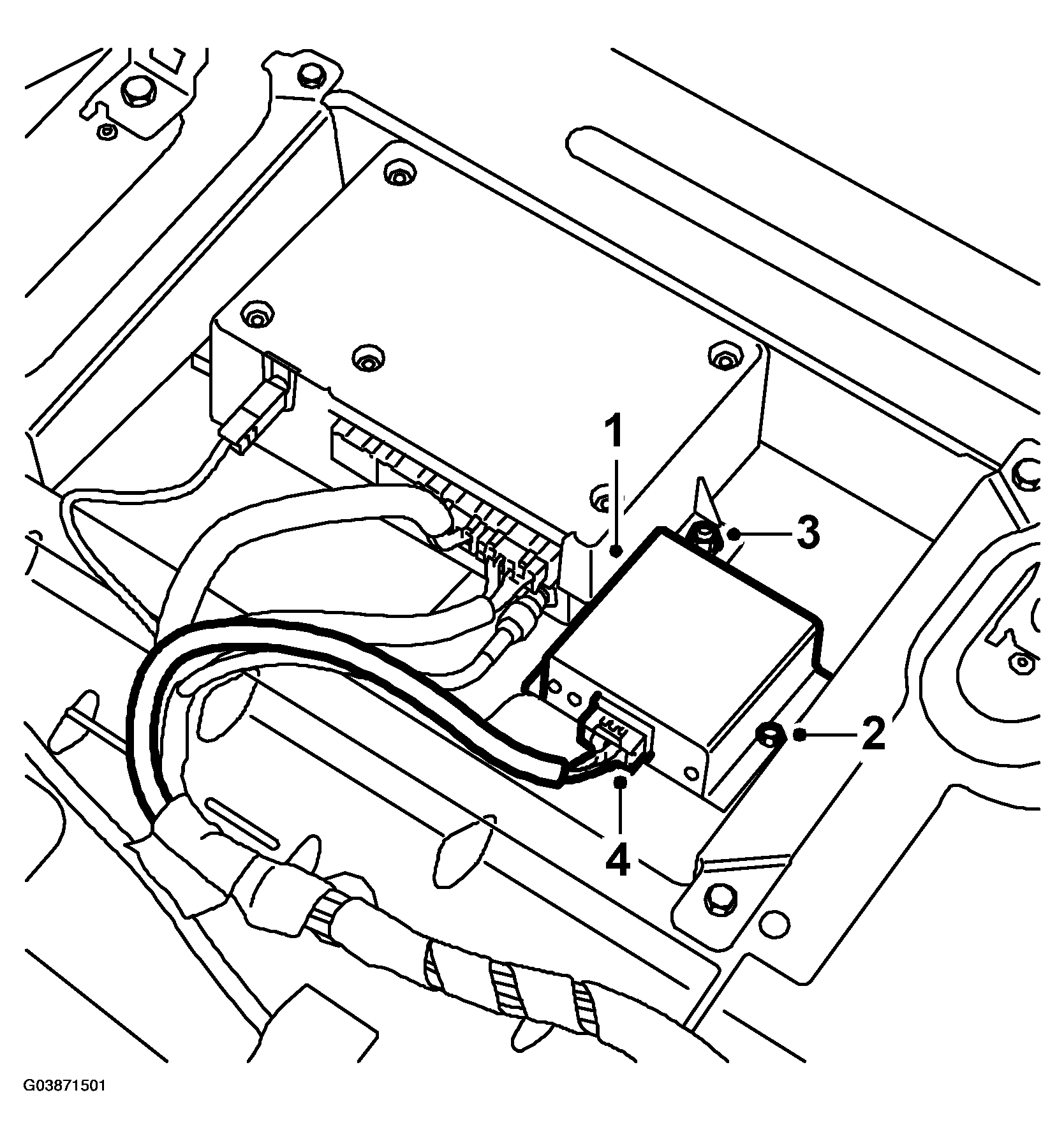

    Fig 1: Illustration For Step 1-4
    G03871501Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Fit the bolt.
  3. Tighten the nut.
  4. Plug in the connector.
  5. Fit the parcel shelf trim.
  6. Erase fault codes.
  7. Check that the system is functioning.
