To remove

  1. Remove the SID unit from the instrument panel, use 82 93 474 Removal tool.

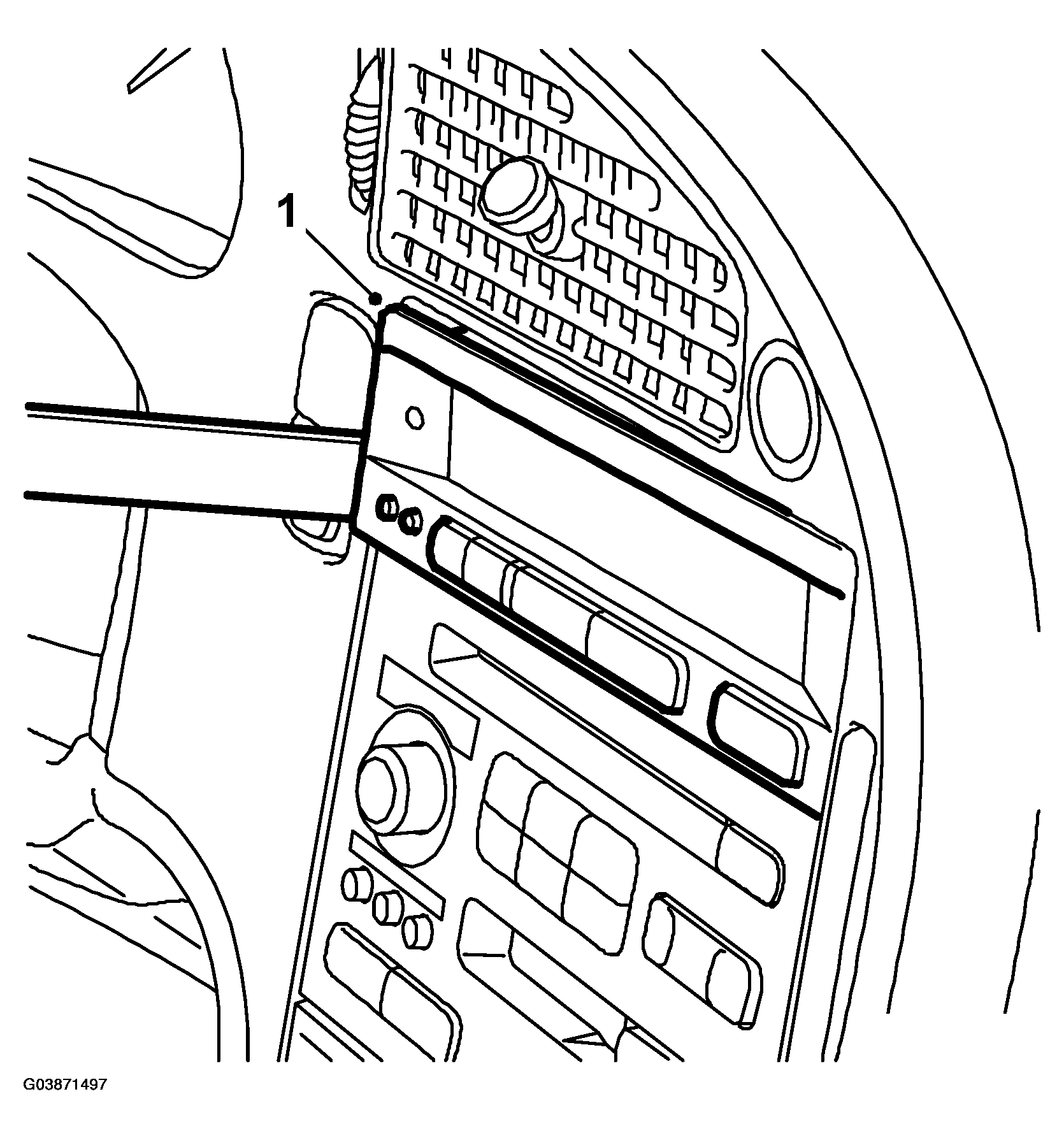

    Fig 1: Illustration For Step 1
    G03871497Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Release the catches on the back of the control button unit and push it out.

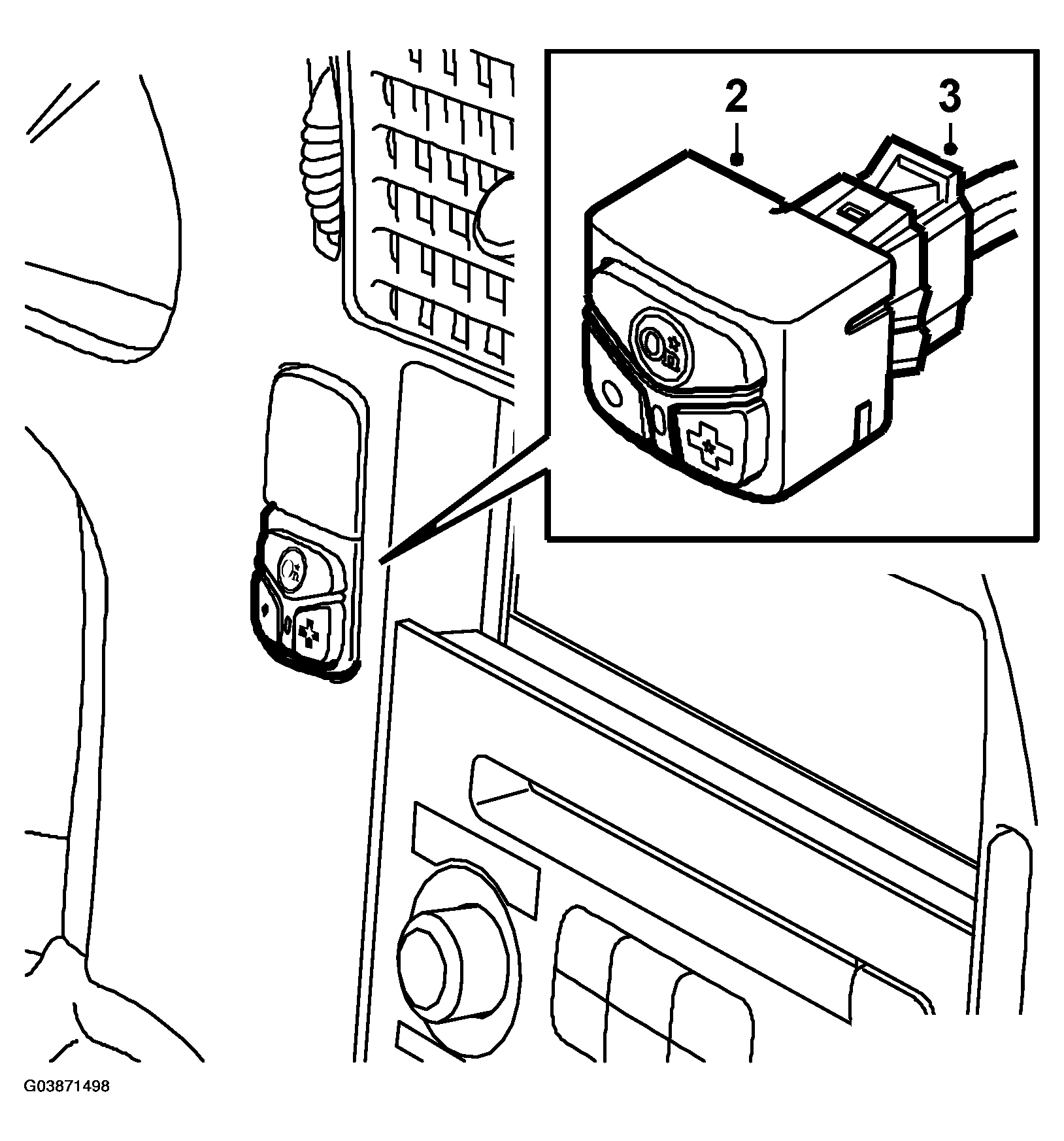

    Fig 2: Illustration For Step 2-3
    G03871498Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Unplug the connector.
