Provisions for handsfree (TEL 1): Notes

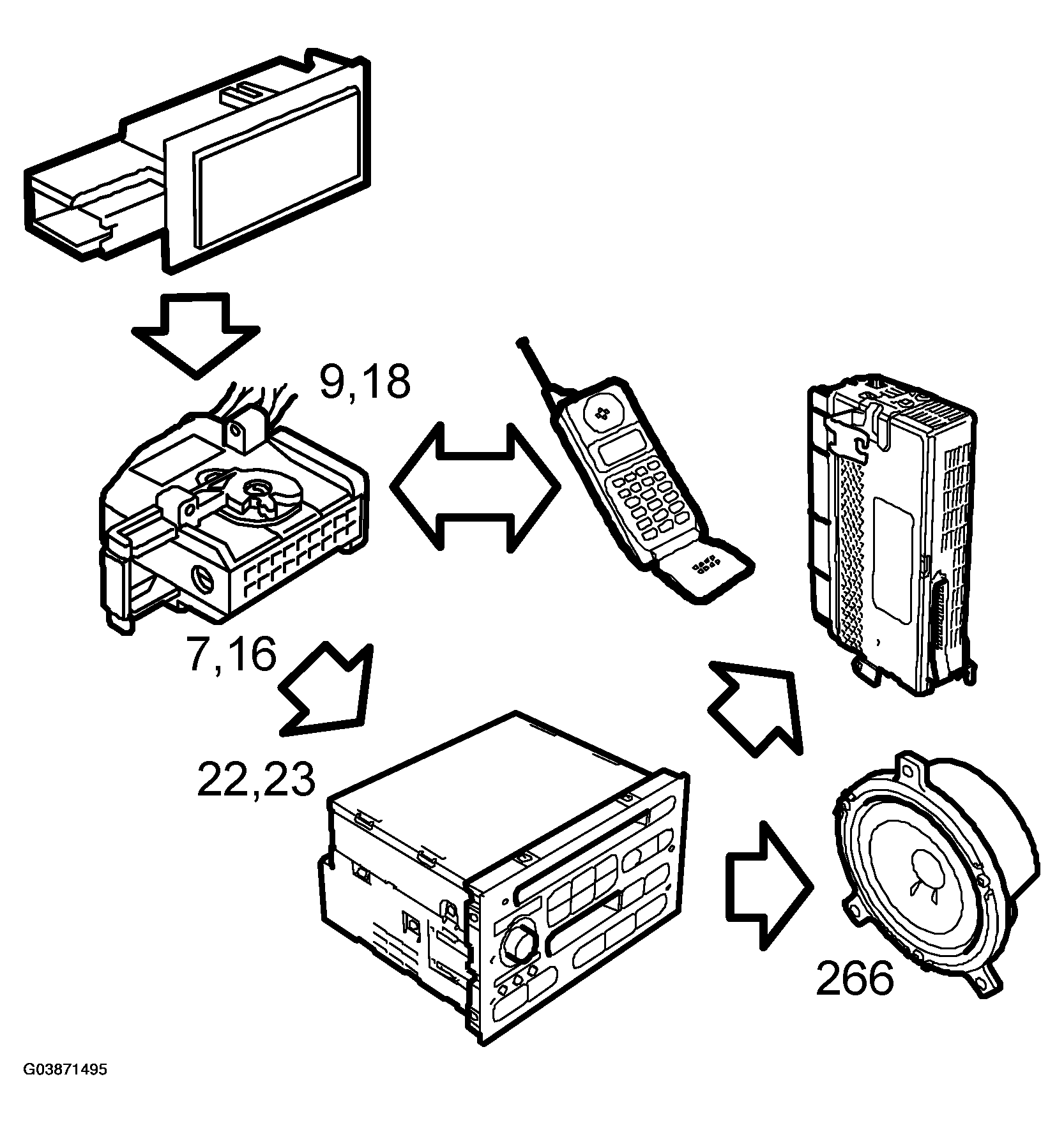

Fig 1: Handsfree Communication Diagram (TEL 1)
G03871495Courtesy of SAAB-SCANIA OF AMERICA, INC.

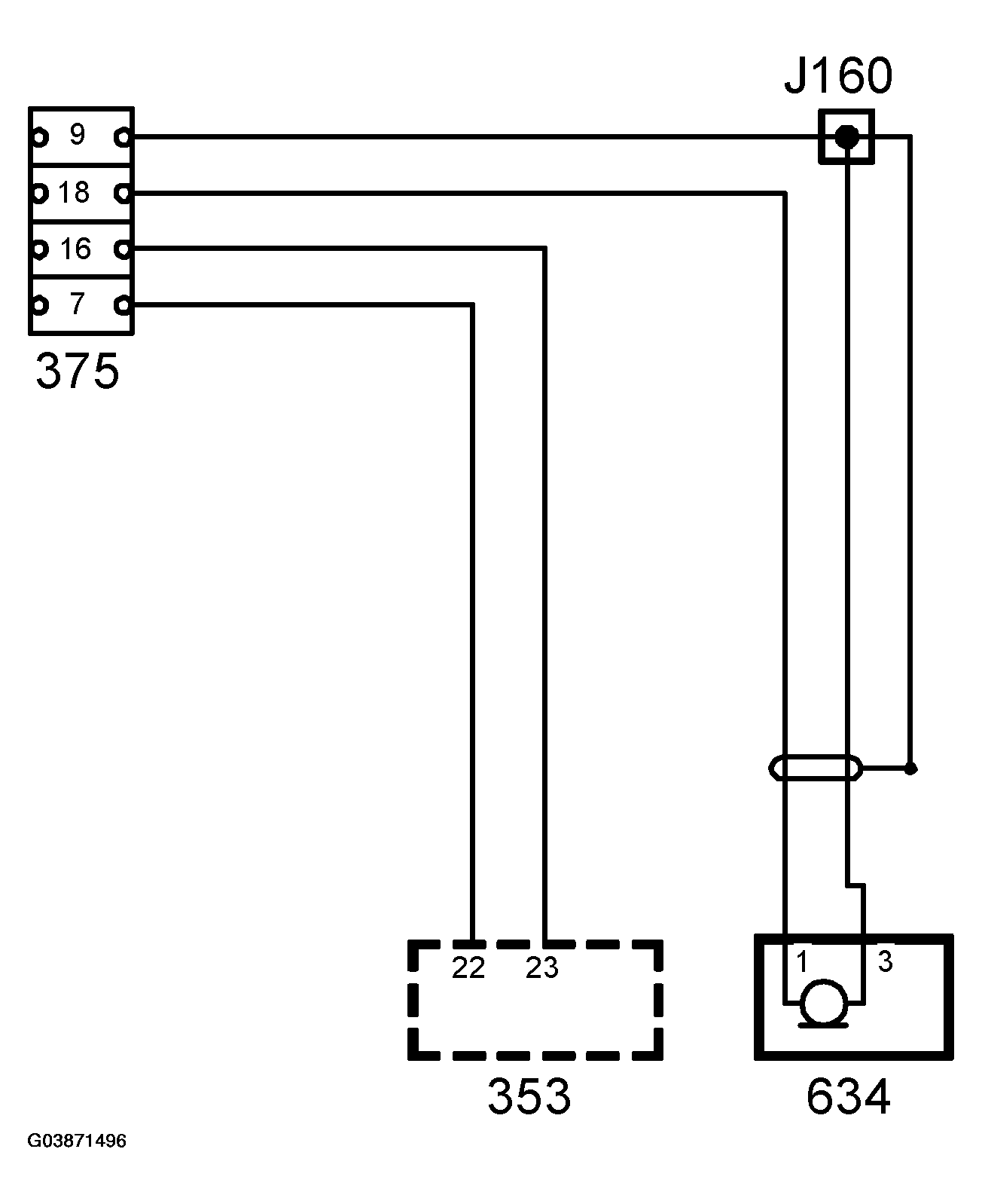

Fig 2: Handsfree Circuit Diagram (TEL 1)
G03871496Courtesy of SAAB-SCANIA OF AMERICA, INC.

The car is prepared for the connection of a mobile phone with an 18-pin connector to which the phone is connected. This allows the "handsfree" function to be used.

The audio system's normal sound can be controlled (disconnected) and the power supply for the phone (battery charge) obtained via the connector. Incoming telephone sound is relayed through the audio system speakers and outgoing speech picked up by a built-in microphone in the car.

A coaxial cable is pre-routed and connected to the antenna on the roof.
