Technical description
>>
Main unit outputs
Main unit outputs

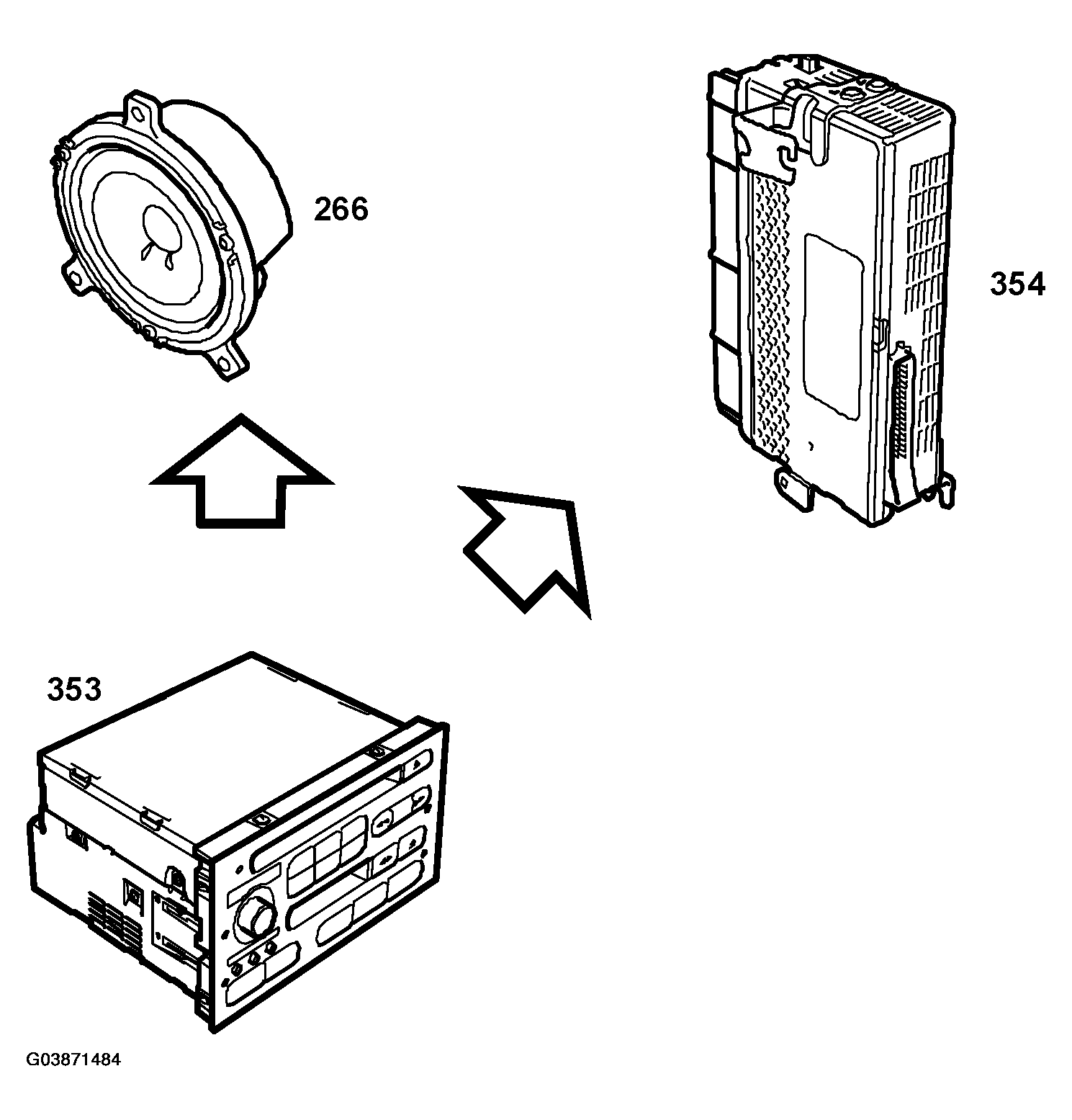

Fig 1: Audio System Main Unit Communication Diagram (Outputs)
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Mute control, external amplifier (354)
Line output, right/left channel +/- (front/rear) (354)
Speaker, right/left channel +/- (front/rear) (266)
