Main unit outputs, bus

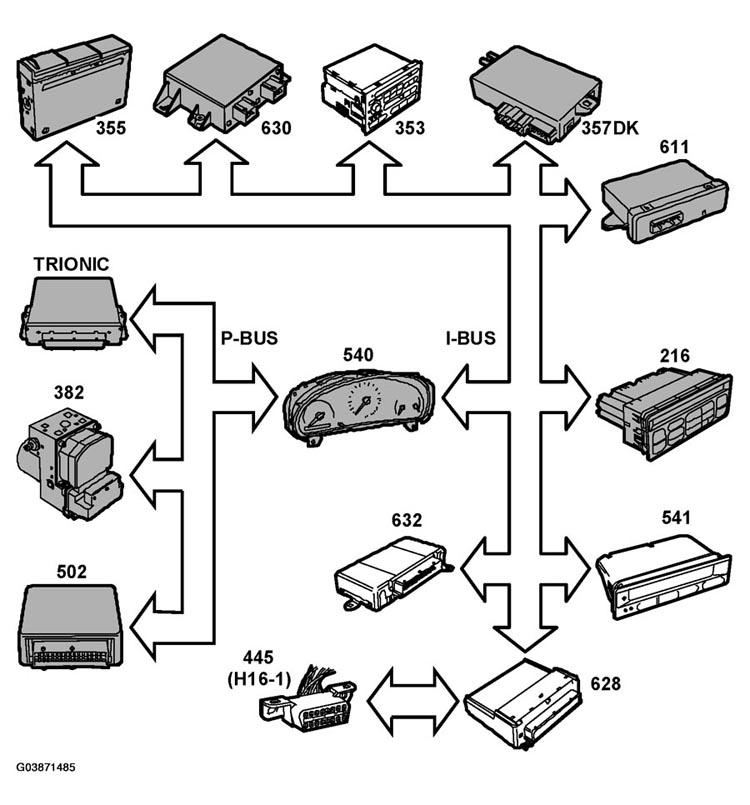

Fig 1: Bus Main Unit Communication Diagram (Outputs)
G03871485Courtesy of SAAB-SCANIA OF AMERICA, INC.
