Control functions

The main unit contains control buttons for the system. Some buttons are specific to each respective unit whereas others are general controls.

General control buttons:

  1. Audio system on/off
  2. Source selection in audio system
  3. Volume
  4. Bass
  5. Treble
  6. Balance
  7. Fader

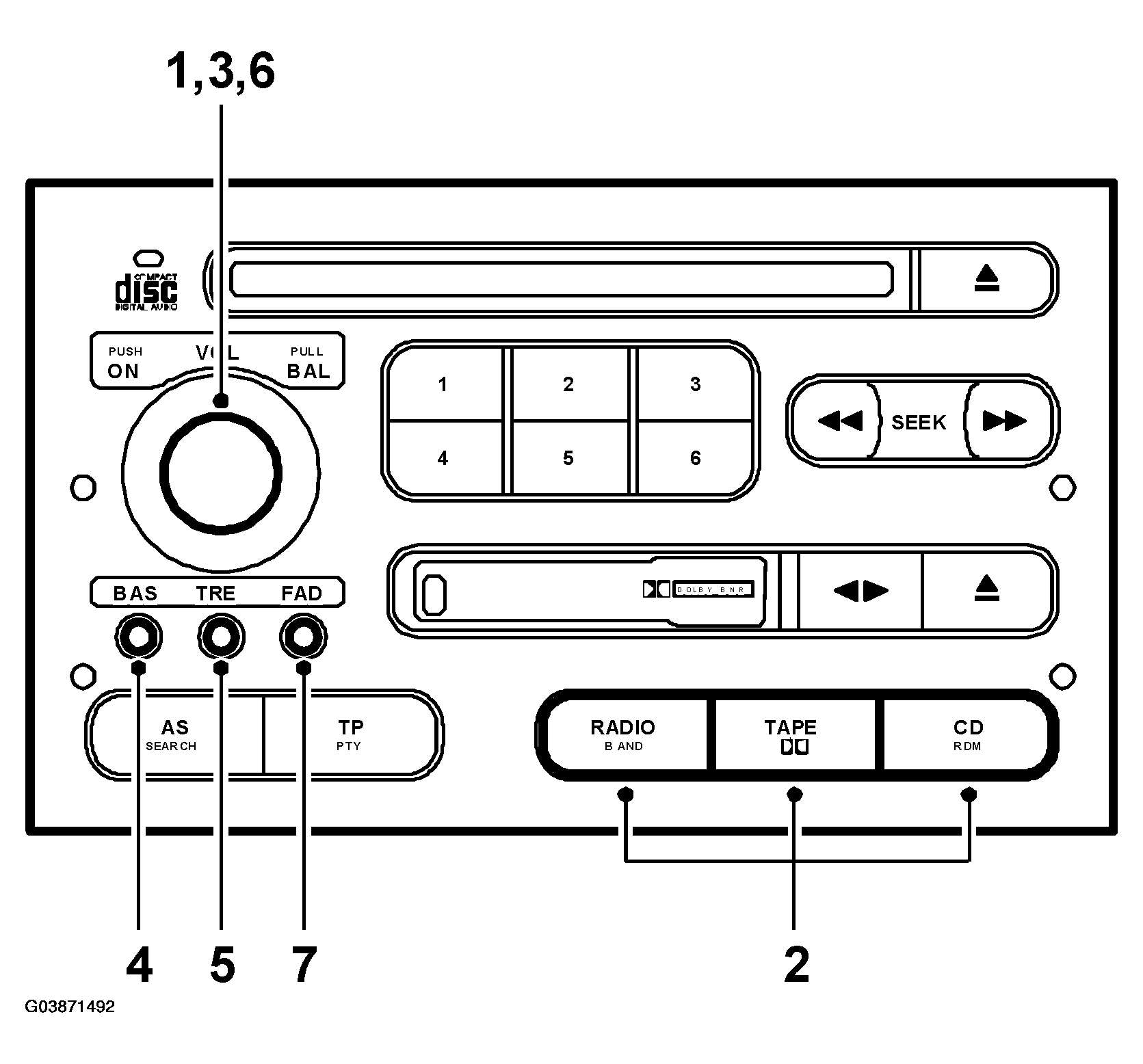

  8. Fig 1: Control Function Steps 1-7
    G03871492Courtesy of SAAB-SCANIA OF AMERICA, INC.
