Antenna, mobile telephone/GPS

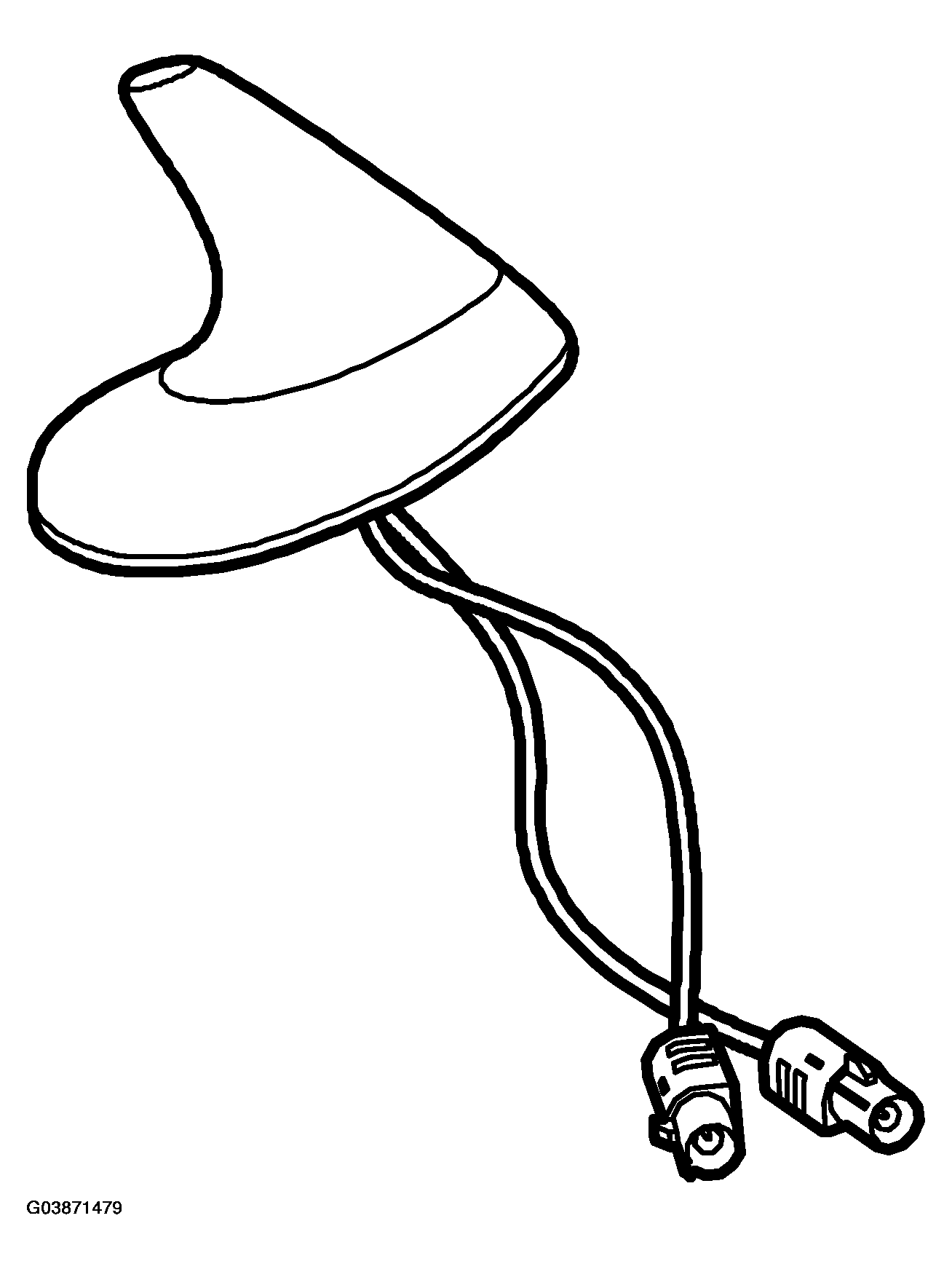

Fig 1: Identifying Antenna, Mobile Telephone/GPS
G03871479Courtesy of SAAB-SCANIA OF AMERICA, INC.
ANTENNA, MOBILE TELEPHONE/GPS TECHNICAL DATA

Type   Mobile telephone:  Physically shortened quarter-wave antenna
GPS:  Patch antenna with integrated amplifier, phantom feed supplied from navigation system.
Location   On rear edge of roof, in centre
Frequency band, telephone US/CA AMPS 800, 1900 MHz
Frequency band, GPS   1500 MHz
