Main unit, audio system (353)

Without navigation system

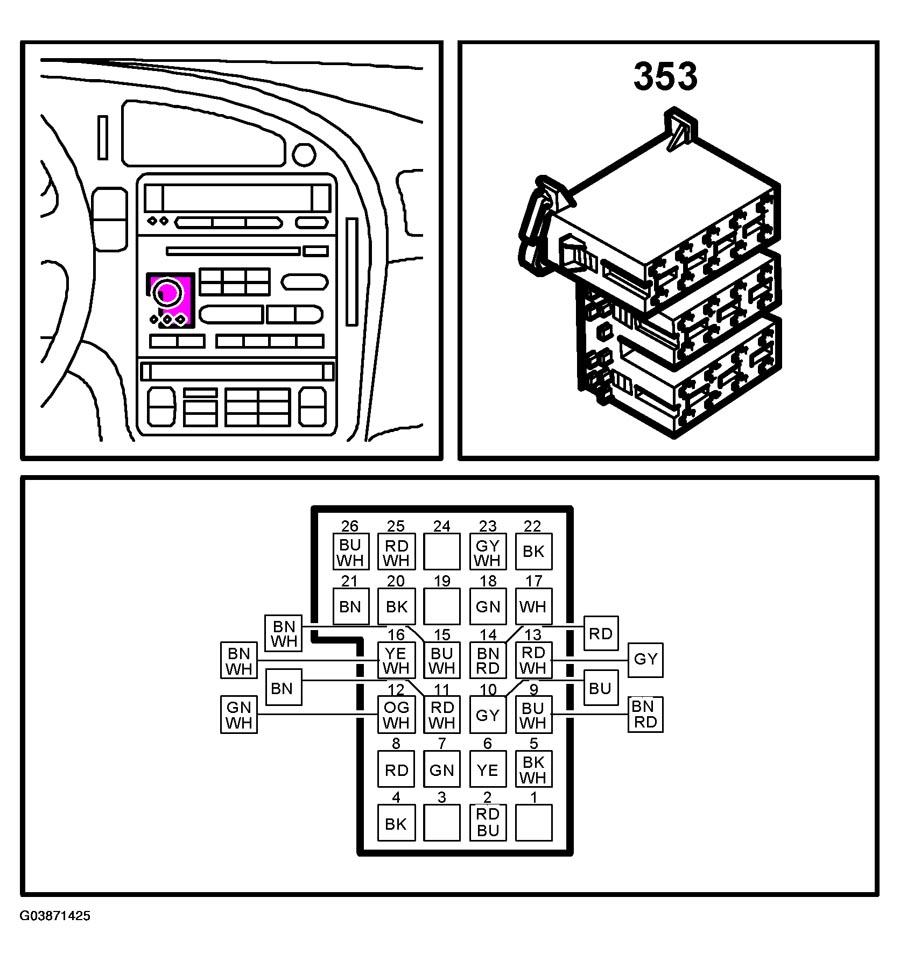

Fig 1: Identifying Audio System Main Unit Connector (Without Navigation System)
G03871425Courtesy of SAAB-SCANIA OF AMERICA, INC.

With navigation system 4D

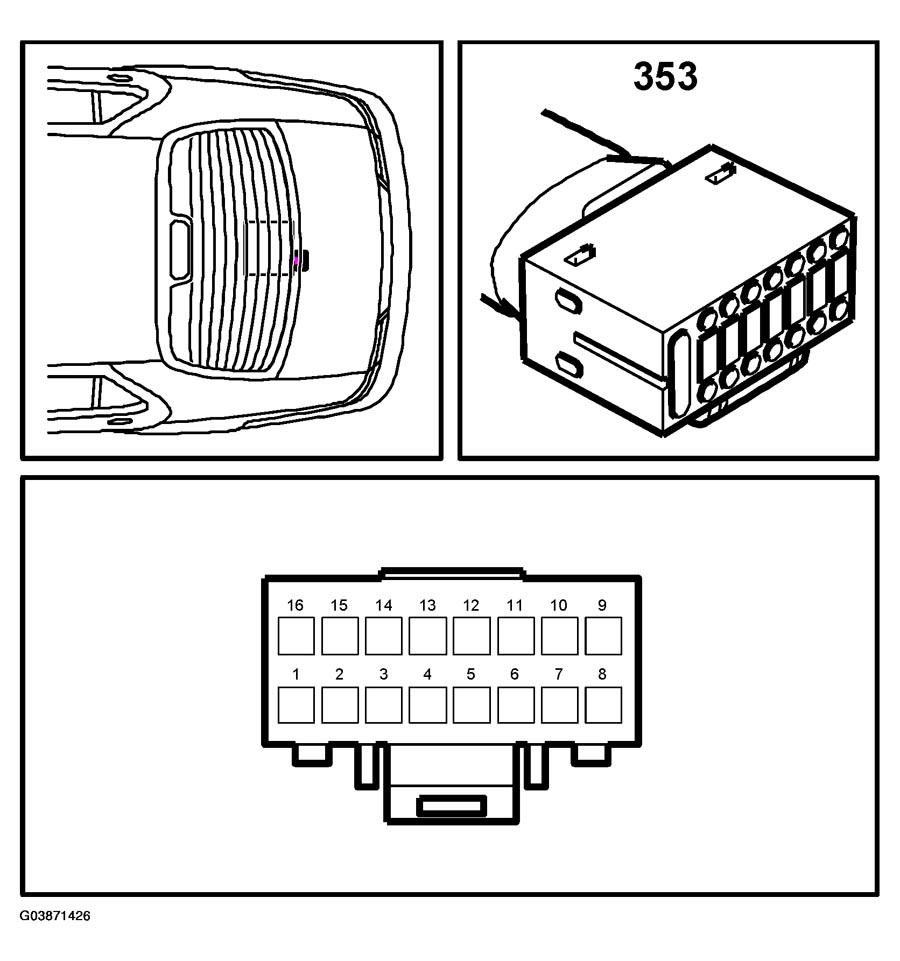

Fig 2: Identifying Audio System Main Unit Connector (Without Navigation System 4D)
G03871426Courtesy of SAAB-SCANIA OF AMERICA, INC.

With navigation system 5D

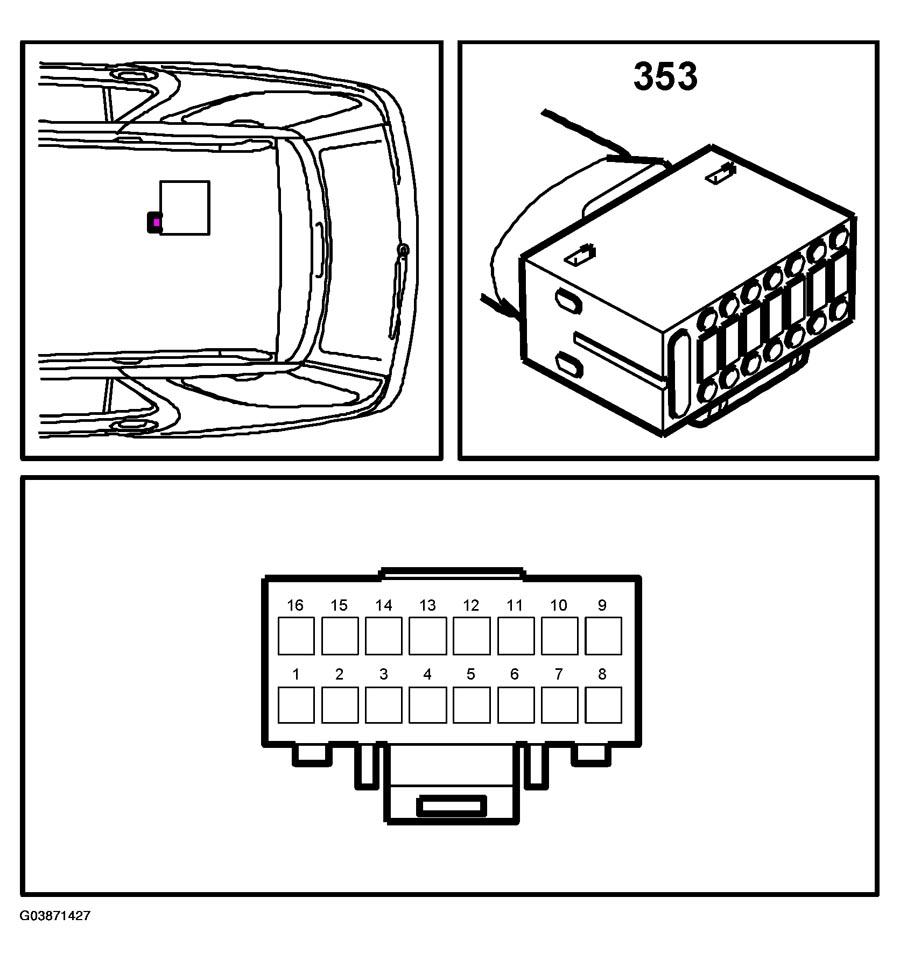

Fig 3: Identifying Audio System Main Unit Connector (Without Navigation System 5D)
G03871427Courtesy of SAAB-SCANIA OF AMERICA, INC.
