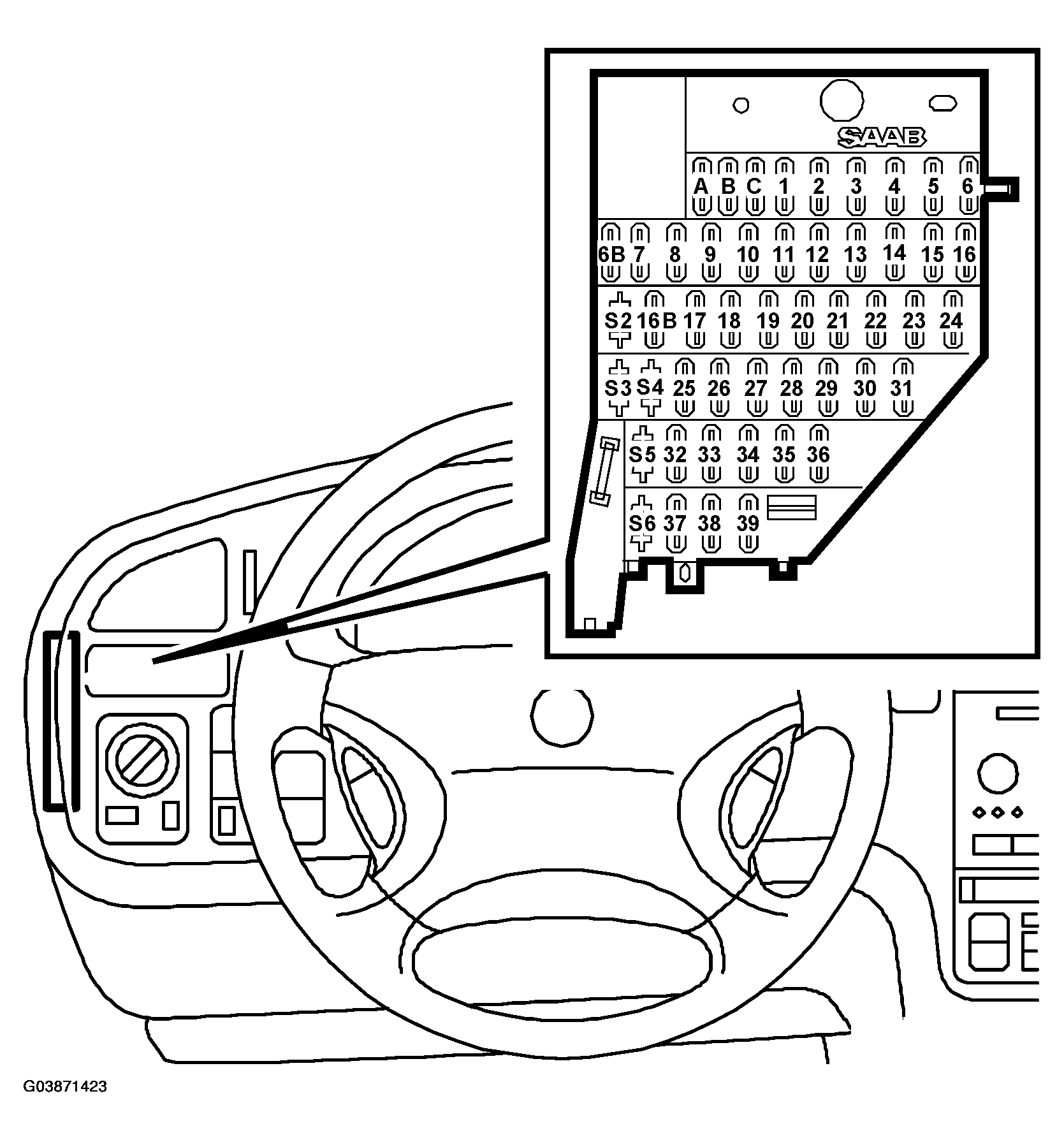

Main fuse board 22a in the dashboard
Location: On the short side of dashboard beside driver's door.
Upper socket is input current.
MAIN FUSE VALUE, TYPE AND FUNCTION DESCRIPTION (1)
| No. | Value | Type | Function | ||
|---|---|---|---|---|---|
| A | 30 A | +30 | Prepared pull installation | ||
| B | 10 A | +15 | TCM | ||
| C | 7.5 A | +54 | Electrically adjustable door mirror DICE Manual beam length control |
||
| 1 | 15 A | +30 | Brake light switch Brake light |
||
| 2 | 15 A | +54 | Rear light | ||
| 3 | 10 A | Parking light LH | |||
| 4 | 10 A | Parking light RH | |||
| 5 | 7.5 A | +B | DICE/TWICE Switch, navigation/telephone |
||
| 6 | 30 A | +54 | Electric window lifts, right Prepared pull installation |
||
| 6B | 10 A | Brake light, prepared pull installation | |||
| 7 | 10 A | Injection valves, petrol engine Solenoid valve, turbo by-pass Solenoid valve, EVAP shut-off EVAP canister purge valve, evaporative emission canister |
|||
| 8 | 15 A | +30 | SID Interior lighting SPA Engine, pump, coolant circulation |
||
| 9 | 15 A | +30 | Audio System CD changer/connection Diagnostics socket |
||
| 10 | 15 A | +30 | Heated rear seat Sunroof |
||
| 11 | 30 A | +30 | Electrically adjustable passenger seat | ||
| 12 | 7.5 A | +30 | TCM | ||
| 13 | 20 A | +30 | Amplifier | ||
| 14 | 30 A | Engine control module DI Mass air flow sensor Solenoid valve, charge air Solenoid valve unit, EGR Ignition power module, injection valves |
|||
| 15 | 20 A | Pre-heating oxygen sensor Fuel pump, petrol Heating element, fuel filter, diesel |
|||
| 16 | 20 A | +30 | DICE/Direction indicators | ||
| 16B | 7.5 A | +30 | Road-toll fee, prepared installation OnStar |
||
| 17 | 20 A | +30 | MIU Trionic DICE/TWICE |
||
| 18 | 40 A | +30 | Electrically heated rear-view mirrors Electrically heated rear window |
||
| 19 | 10 A | +15 | Telephone/OnStar | ||
| 20 | 15 A | +30 | ACC Interior lighting Rear fog light |
||
| 21 | 10A | +15 | Audio/Navigation system ADM Navigation (accessory) Automatic beam length control Pedal switches, cruise control |
||
| 22 | 40 A | +30 | Ventilation fan motor | ||
| 23 | 15 A | +30 | Central locking system Navigation (accessory) PMM |
||
| 24 | - | ||||
| 25 | 30 A | +30 | Electrically adjustable driver's seat | ||
| 26 | 7.5 A | +15 | SPA Sunroof PSM PMM Seatbelt warning light |
||
| 27 | 10 A | +15 | Engine control module MIU SID DICE |
||
| 28 | 7.5 A | +15 | Airbag/SRS | ||
| 29 | 10 A | +15 | ESP | ||
| 30 | 7.5 A | +50 | Starter motor | ||
| 31 | 7.5 A | +54 | Switch, cruise control Solenoid valve, heat exchanger Fog light Rain sensor |
||
| 32 | 15 A | +54 | Seat ventilation | ||
| 33 | 7.5 A | +54 | Switch, Direction indicators | ||
| 34 | 30 A | +54 | Cigarette lighter | ||
| 35 | 15 A | +54 | Running lights | ||
| 36 | 30 A | +54 | Electric window lifts, left | ||
| 37 | 30 A | +54 | Windscreen wipers | ||
| 38 | 30 A | +54 | Electrically heated seats | ||
| 39 | 20 A | +30 | Limp-home solenoid Telephone/OnStar |
||
|
|||||
