Head unit, audio/navigation (635)

K16A

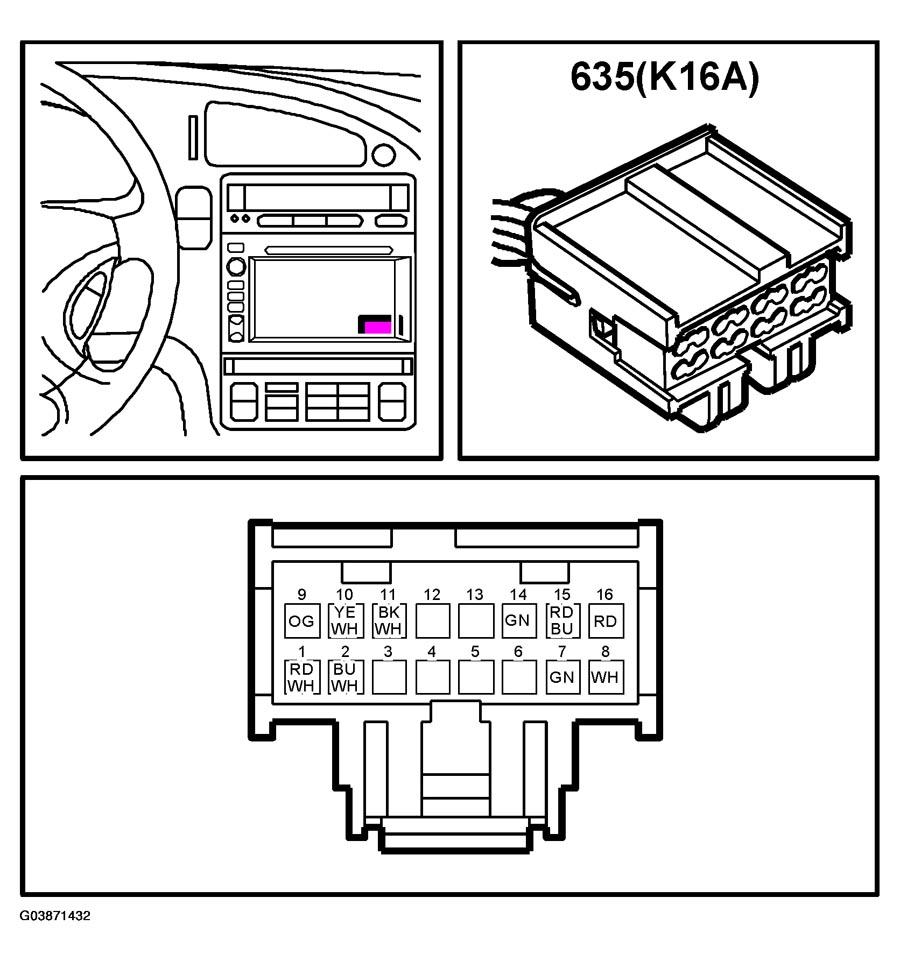

Fig 1: Identifying Audio/Navigation Head Unit Connector (K16A)
G03871432Courtesy of SAAB-SCANIA OF AMERICA, INC.

K16B

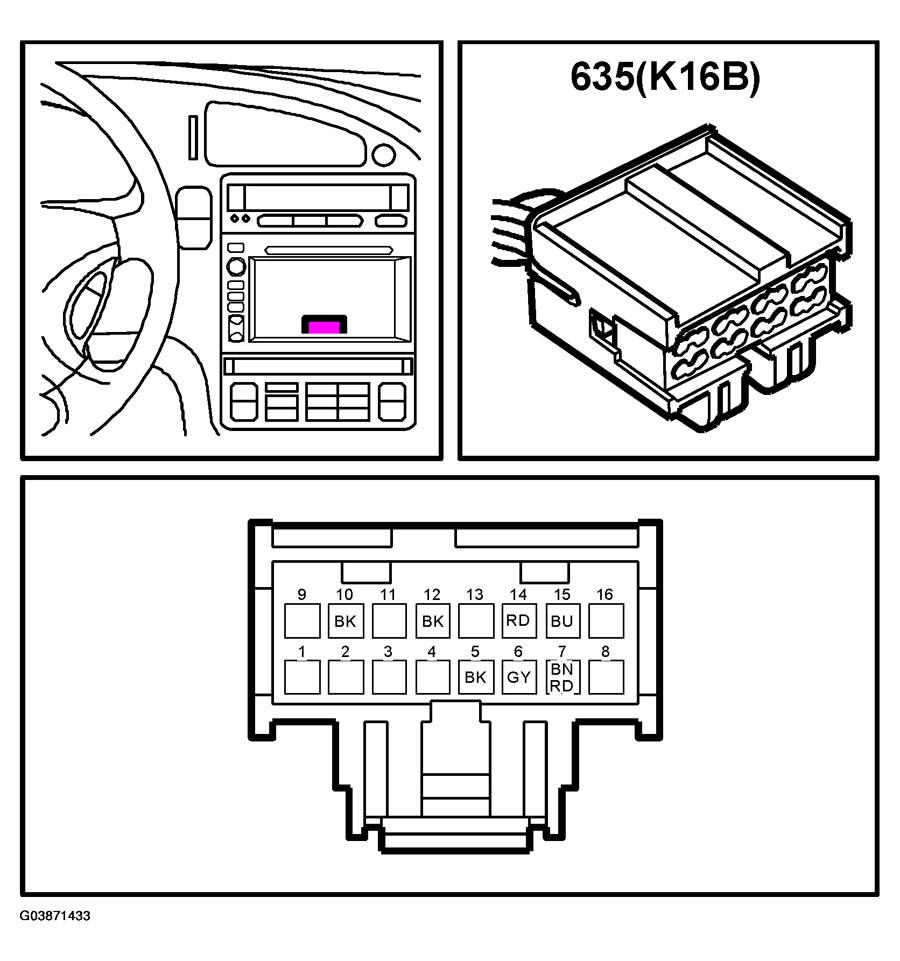

Fig 2: Identifying Audio/Navigation Head Unit Connector (K16B)
G03871433Courtesy of SAAB-SCANIA OF AMERICA, INC.

K16C

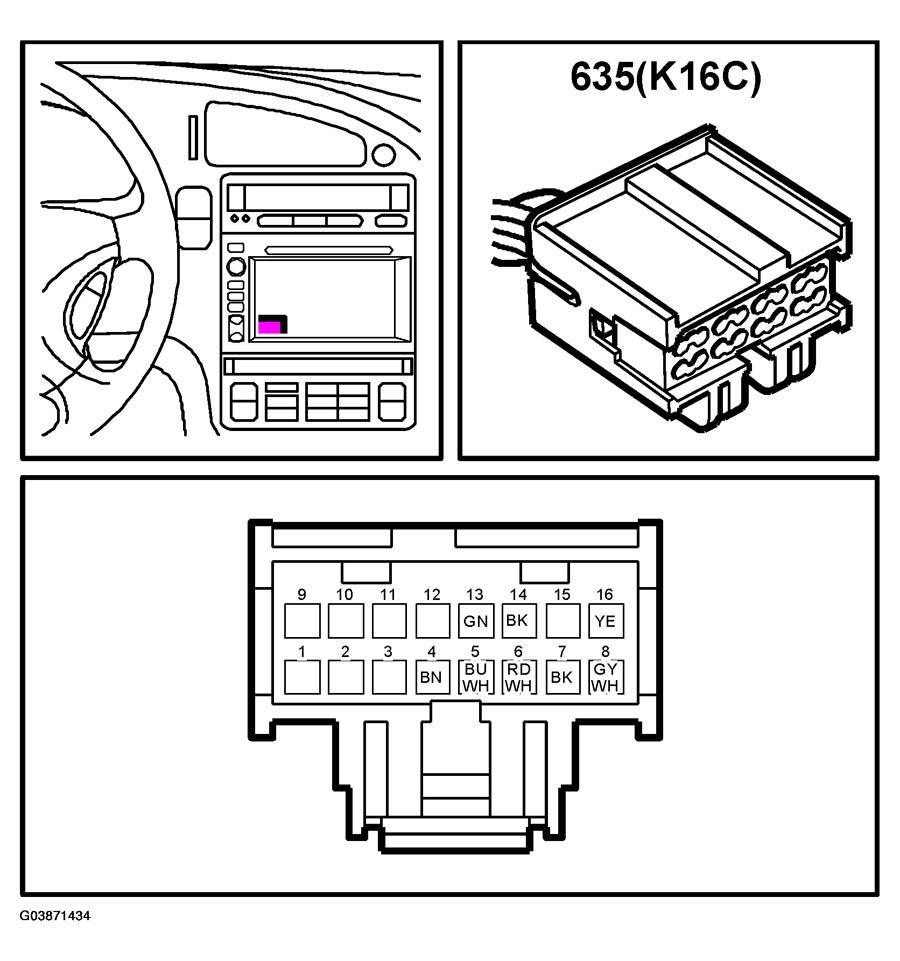

Fig 3: Identifying Audio/Navigation Head Unit Connector (K16C)
G03871434Courtesy of SAAB-SCANIA OF AMERICA, INC.
