Crimp connection J43, instrument harness

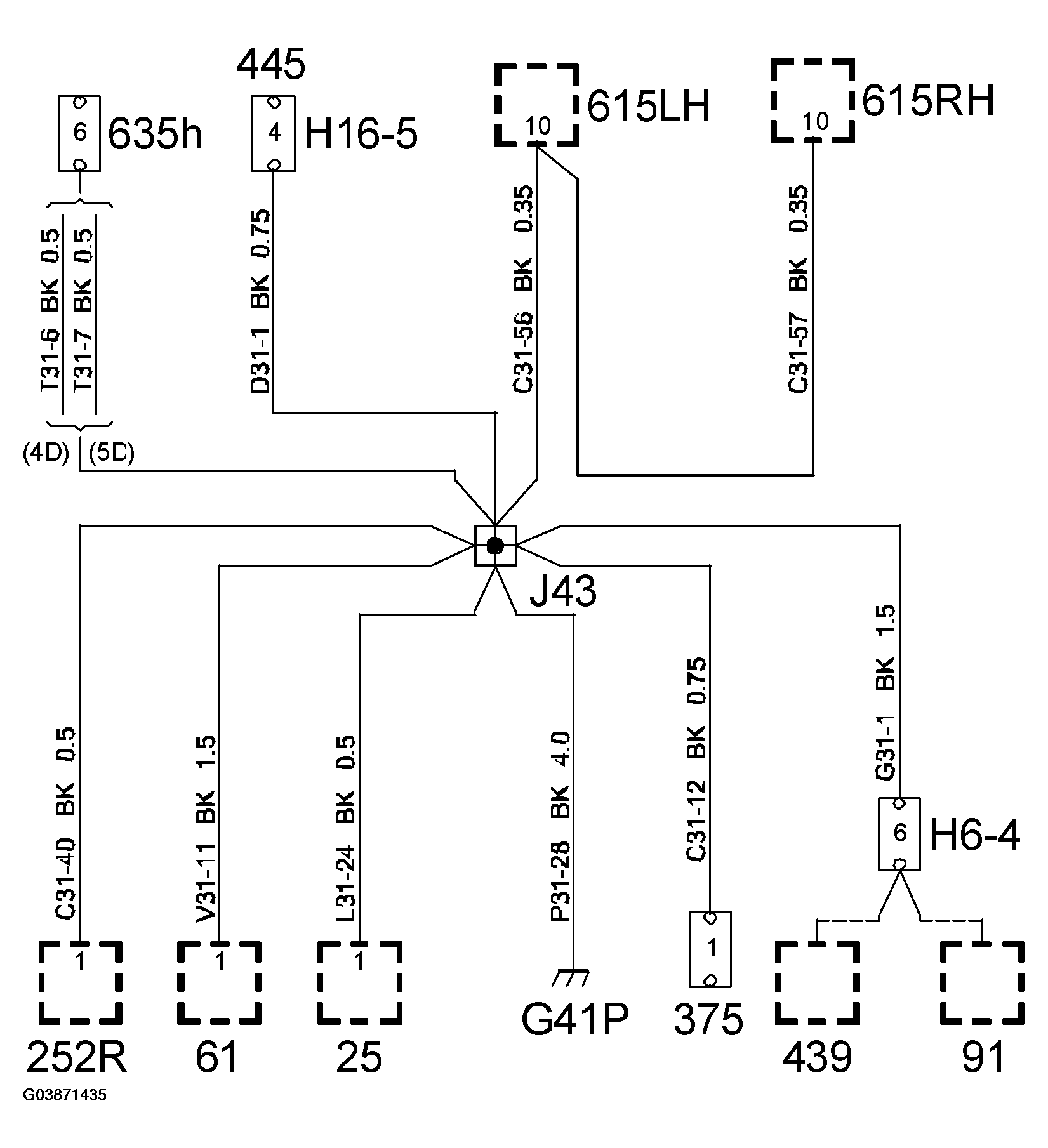

Fig 1: J43 Crimp Connection Circuit Diagram (Instrument Harness)

G03871435

Courtesy of SAAB-SCANIA OF AMERICA, INC.
