To remove

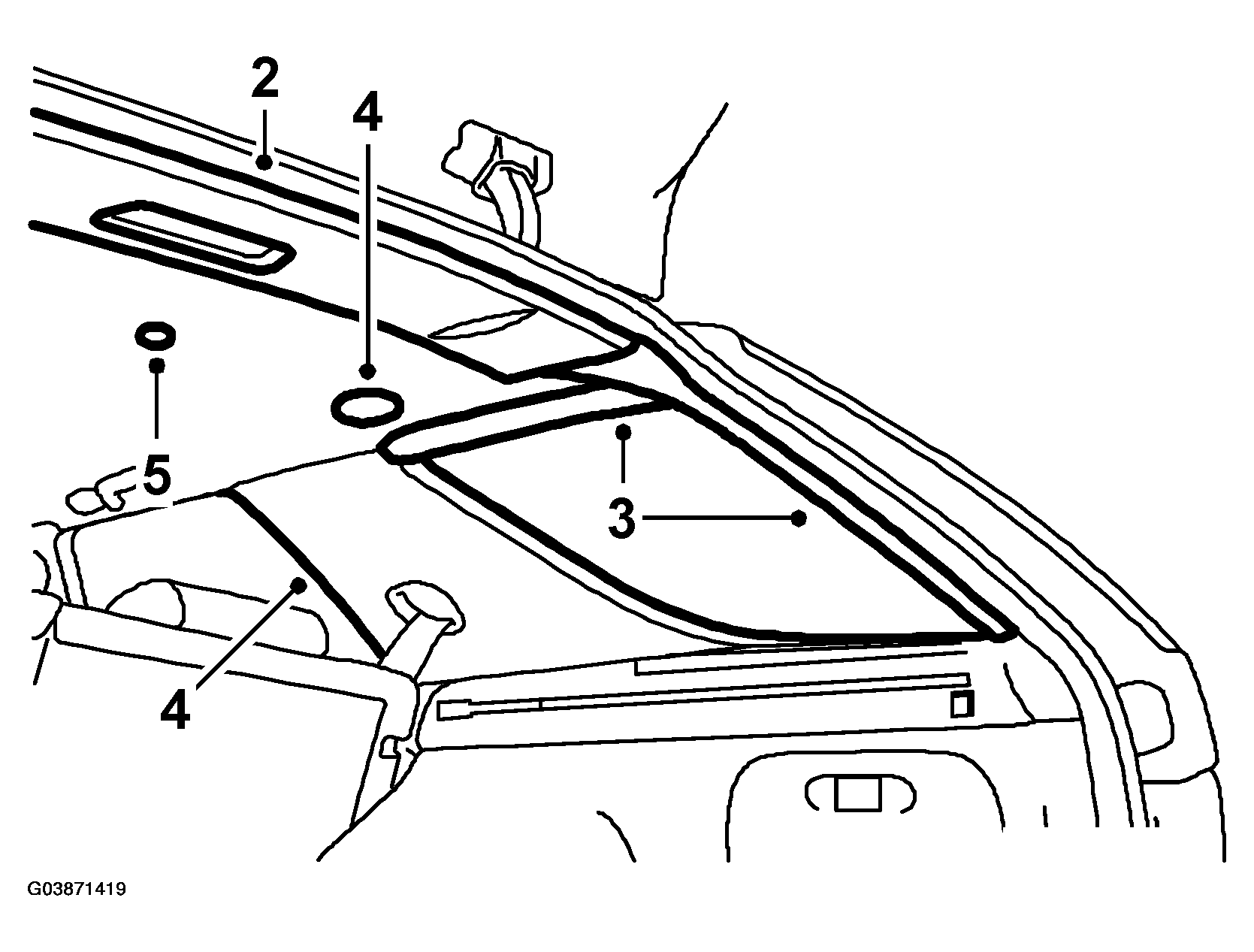

Fig 1: Illustration For Steps 2-5

Courtesy of SAAB-SCANIA OF AMERICA, INC.

If uncertain as to whether the car has handsfree provision, carry out a check. Use a torch to shine through the microphone grille. On cars with handsfree provision, a black microphone is clearly visible behind the grille. On cars without handsfree provision, there is just empty space behind the grille.

1. Remove the parcel shelf.
2. Remove the rear roof cover and unplug the connectors for the lighting.
3. Remove the D-pillar trims and the roof covers over the rear side windows.
4. Remove the fasteners in the roof trim over the rear side windows and undo the top of both C-pillar trims.
5. Remove the two clips in the roof and carefully bend down the headlining.

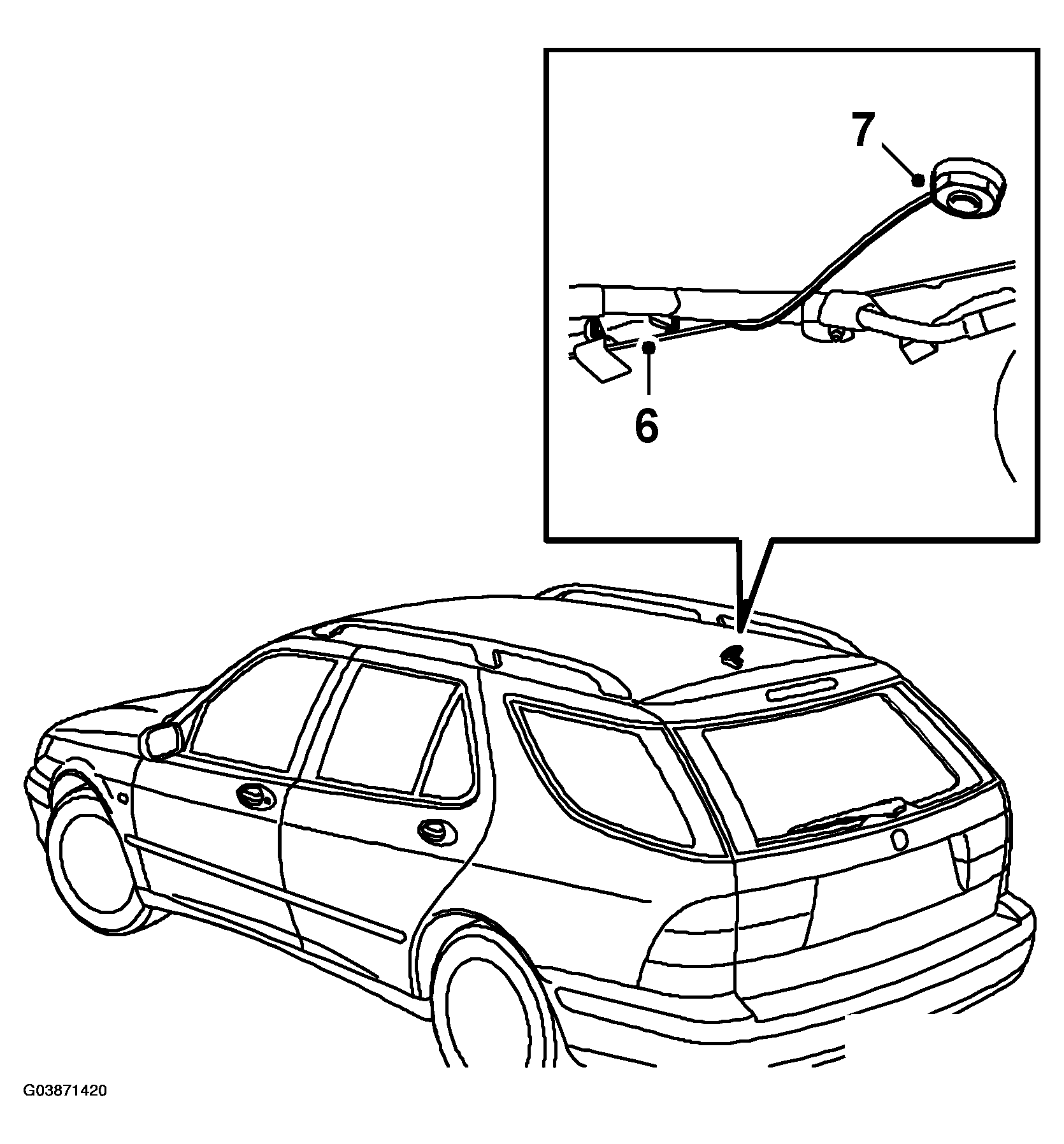

   Fig 2: Illustration For Steps 6 And 7

   Courtesy of SAAB-SCANIA OF AMERICA, INC.
6. Unplug any antenna connectors.
7. Remove the nut and the antenna.
