To fit

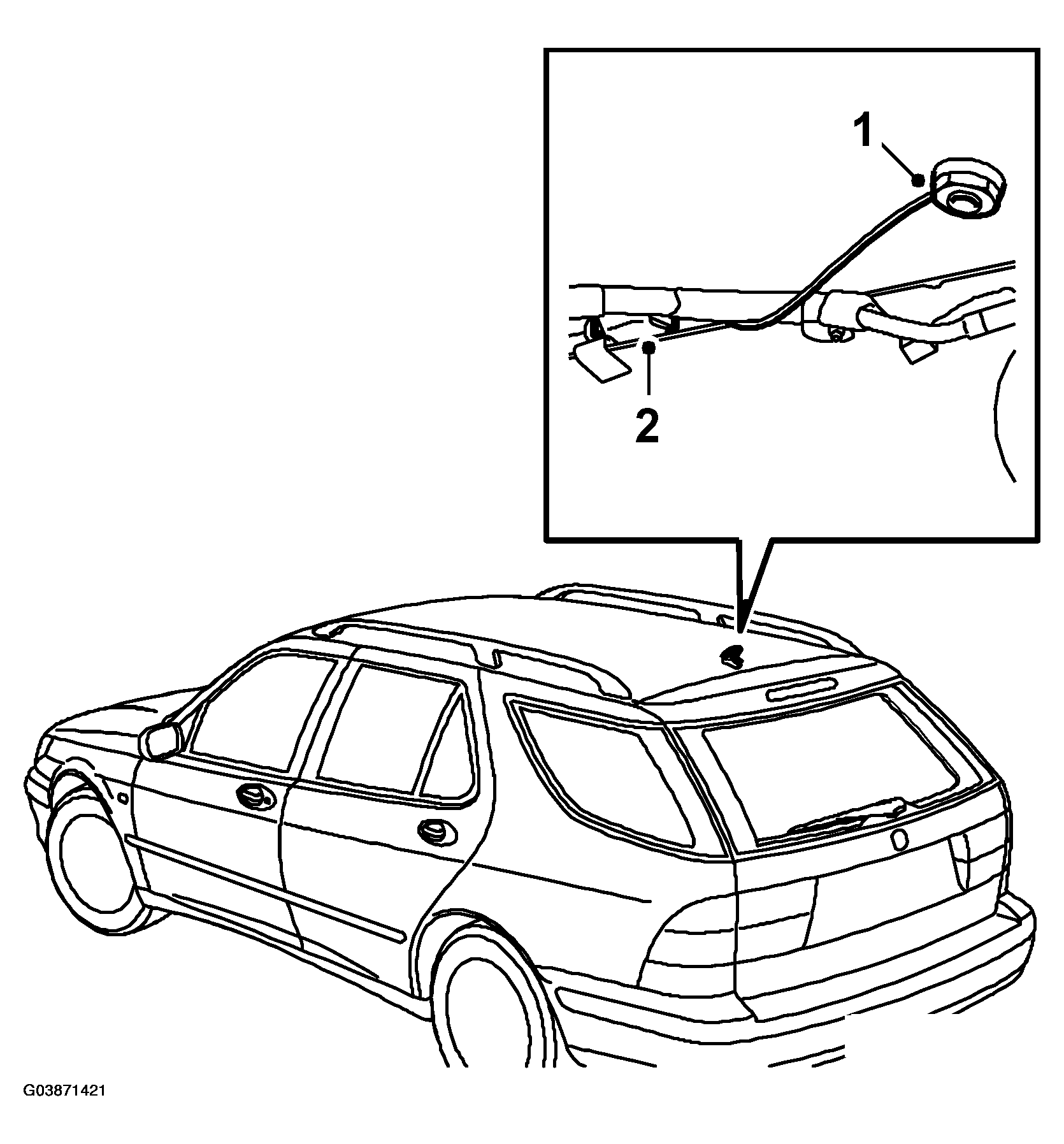

Fig 1: Illustration For Steps 1 And 2
G03871421Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Refit the antenna and tighten the nut.

    Tightening torque 3.0 Nm (2.2 lbf ft)

  2. Plug in any connectors.

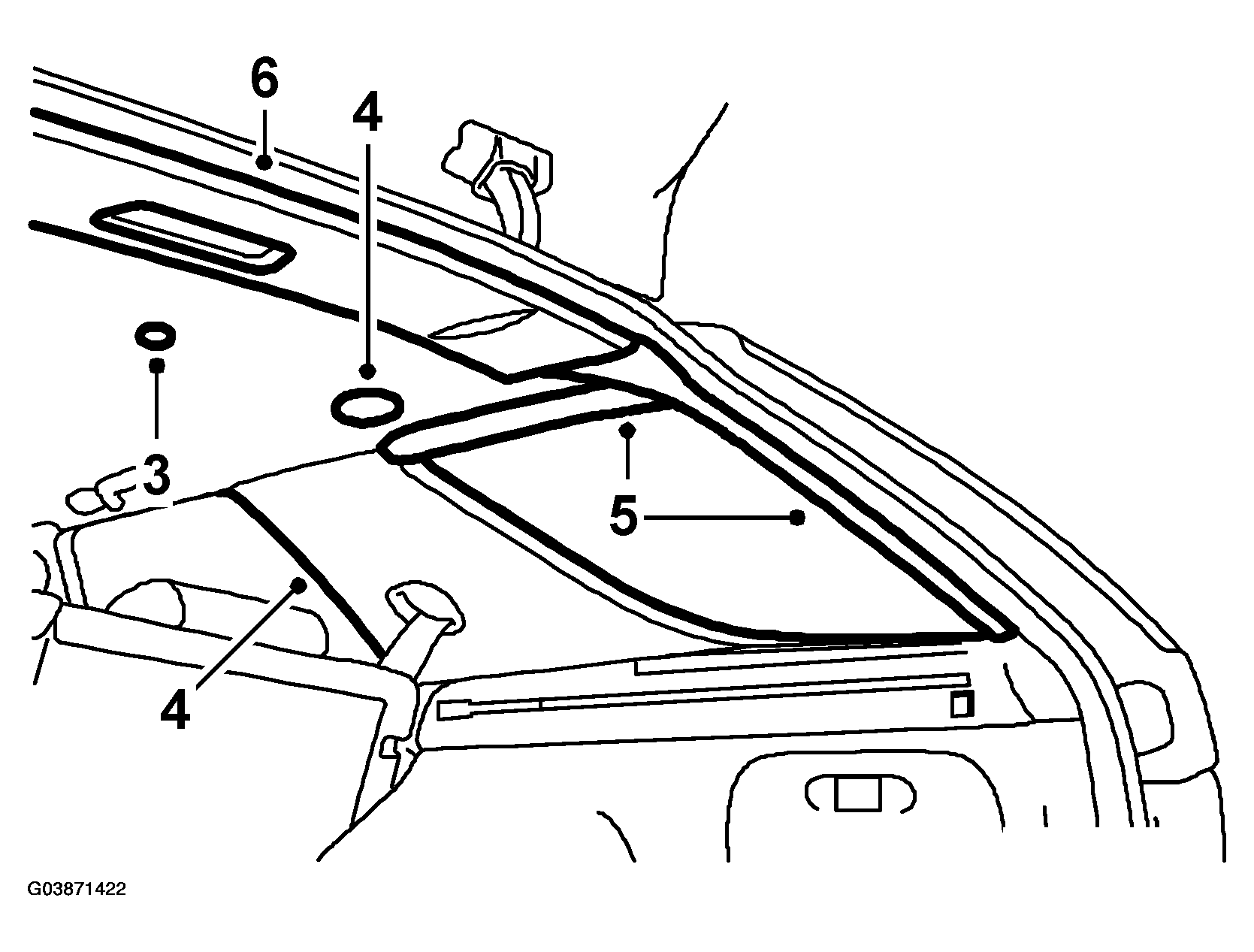

    Fig 2: Illustration For Steps 3-6
    G03871422Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Carefully lift up the headlining and fit the two clips in the roof.
  4. Refit the C-pillar trims and fasteners over the rear side windows.
  5. Fit the roof covers over the rear side windows and refit the D-pillar trims.
  6. Plug in the lighting and fit the rear roof cover.
  7. Refit the parcel shelf.
