To remove

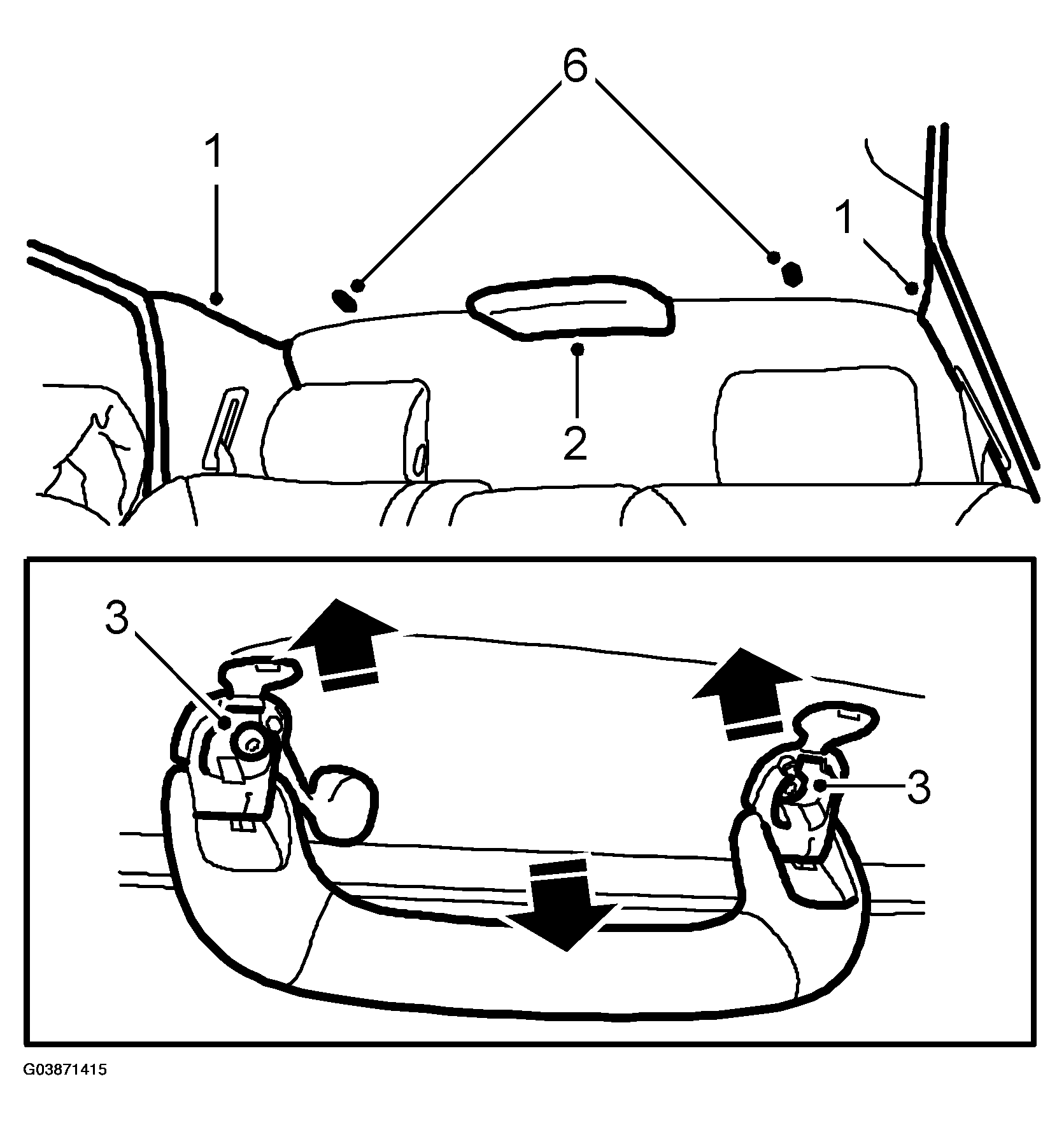

Fig 1: Illustration For Steps 1-3 And 6

Courtesy of SAAB-SCANIA OF AMERICA, INC.

If uncertain as to whether the car has handsfree provision, carry out a check. Use a torch to shine through the microphone grille. On cars with handsfree provision, a black microphone is clearly visible behind the grille. On cars without handsfree provision, there is just empty space behind the grille.

1. Remove the LH and RH C-pillar trim.
2. Remove the brake light cover.
3. Remove the courtesy handle on the LH and RH sides.
4. Fold down the seat cushions and backrests.
5. Remove the centre head restraint.
6. Remove the roof clips.
7. Carefully bend down the headlining.

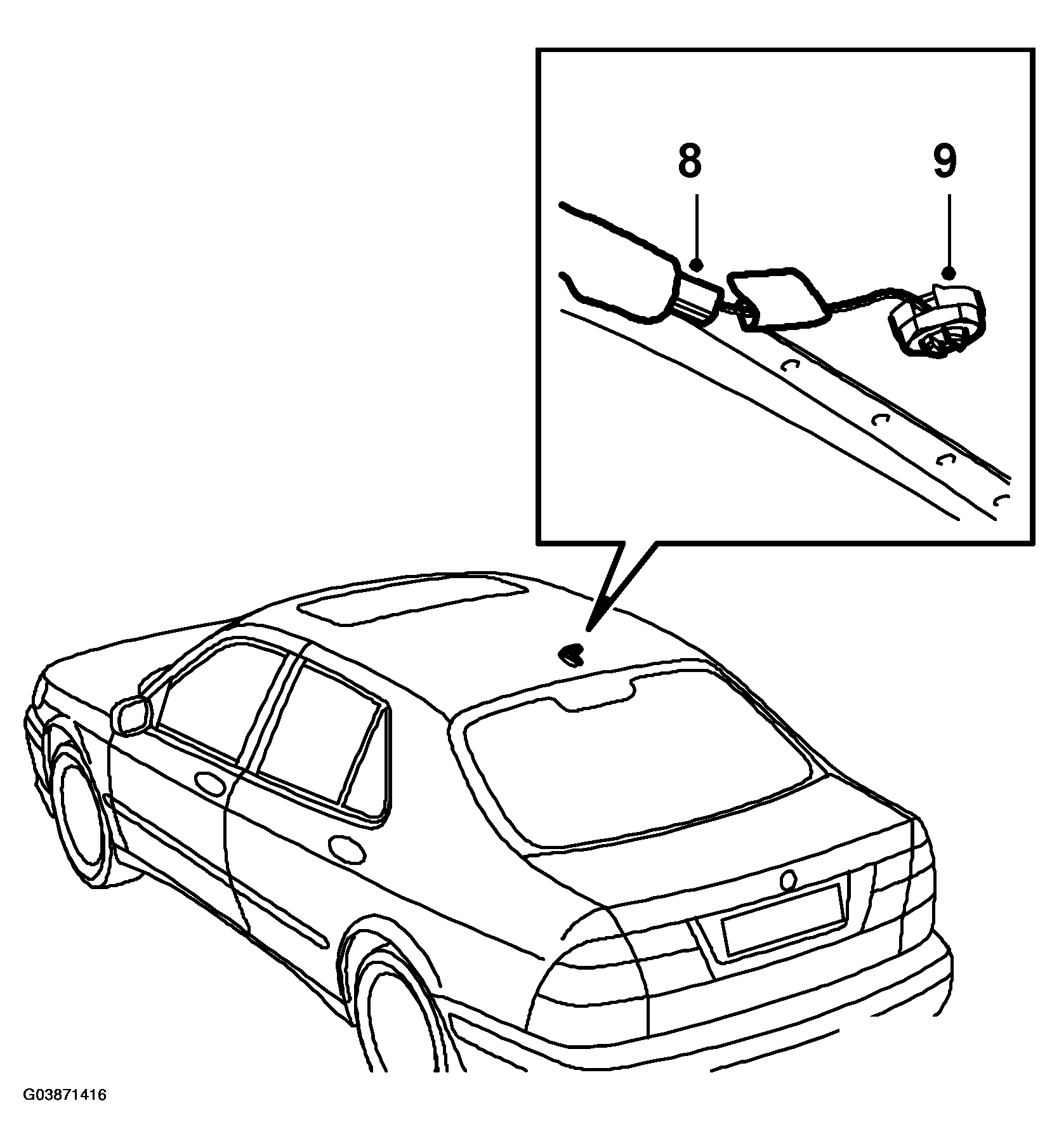

   Fig 2: Illustration For Steps 8 And 9

   Courtesy of SAAB-SCANIA OF AMERICA, INC.
8. Unplug any antenna connectors.
9. Loosen the nut and remove the antenna.
