To fit

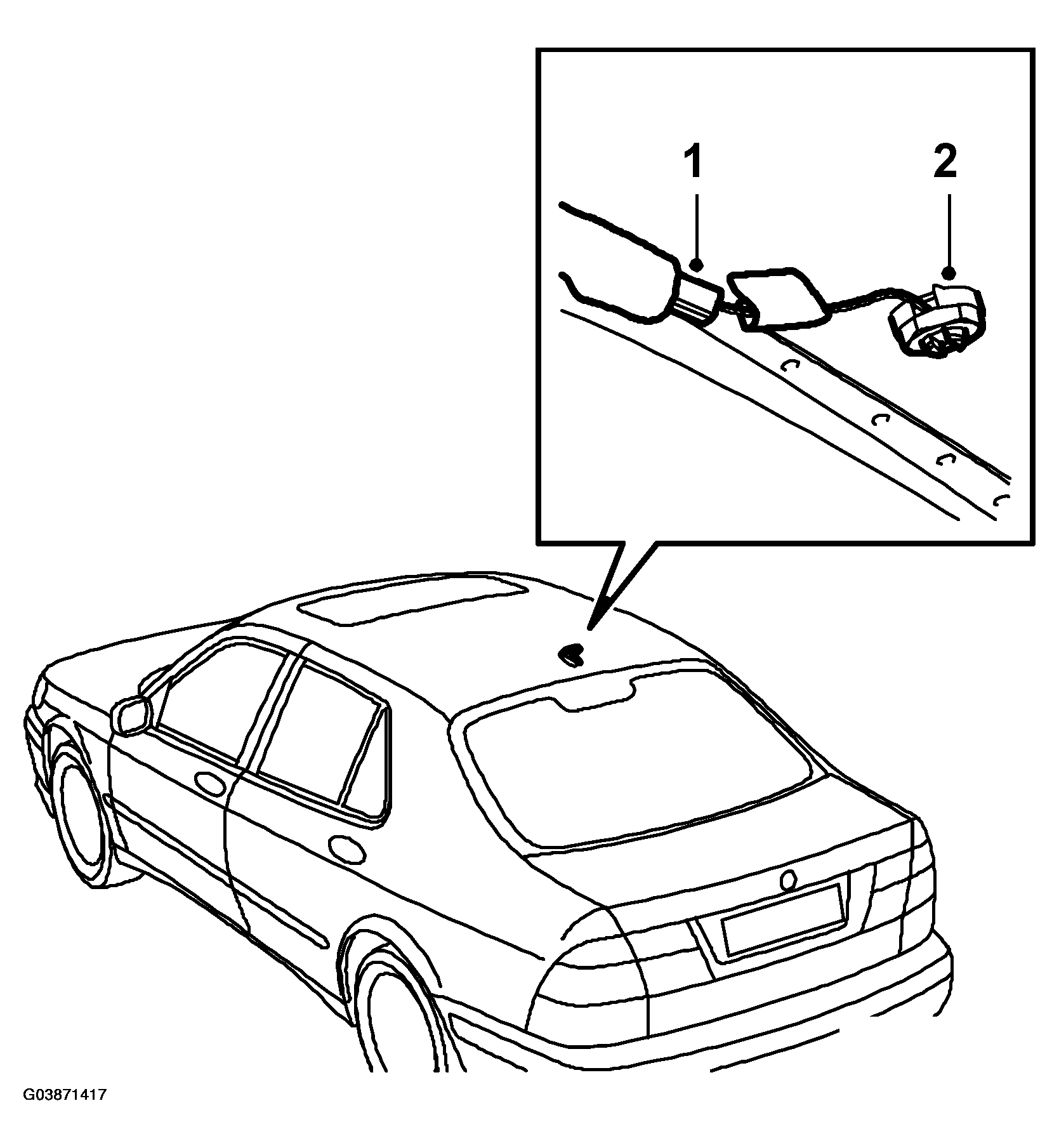

Fig 1: Illustration For Steps 1 And 2
G03871417Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Refit the antenna and plug in any connectors.
  2. Tighten the nut.

    Tightening torque 3.0 Nm (2.2 lbf ft)

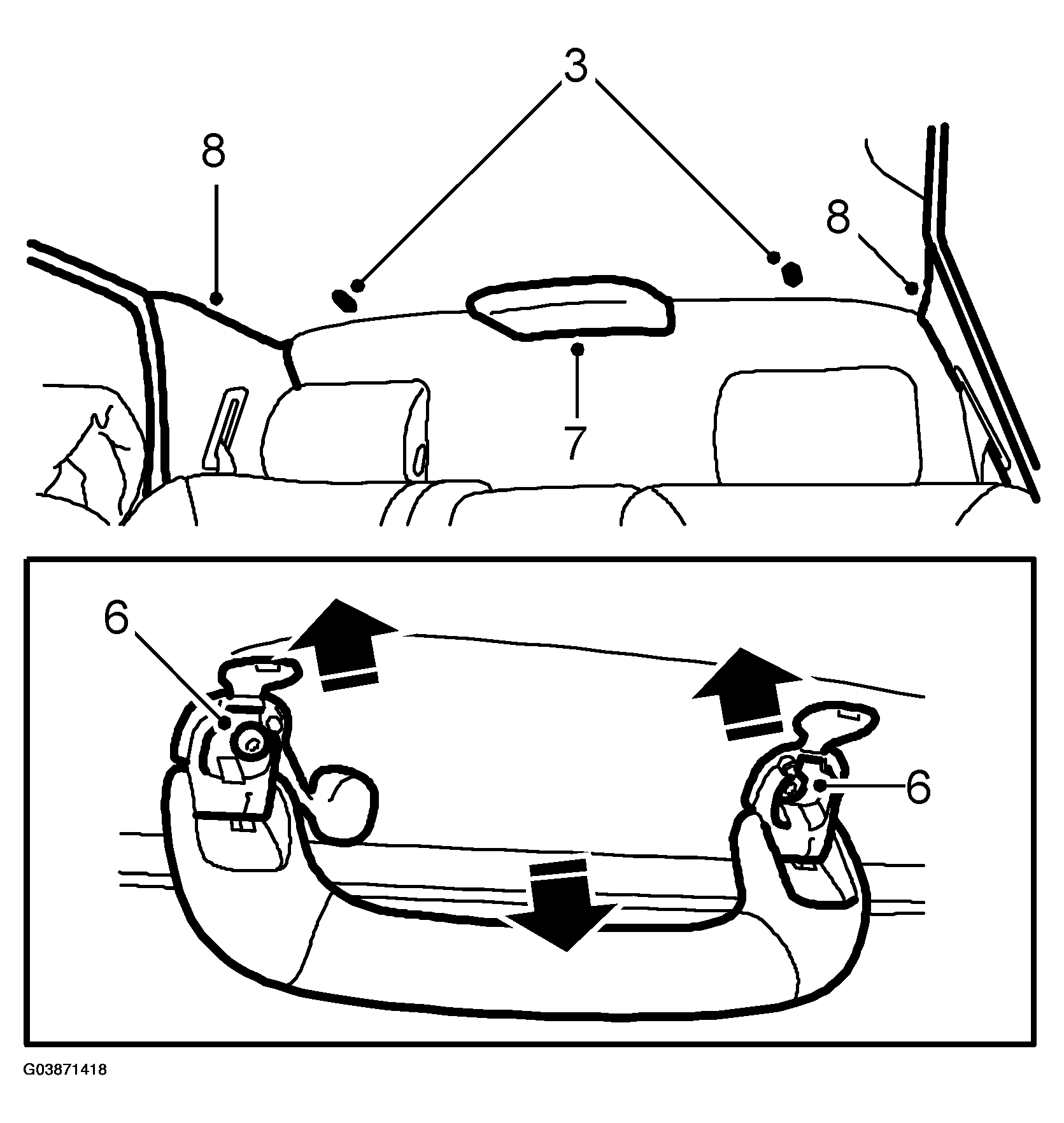

    Fig 2: Illustration For Steps 3 And 6-8
    G03871418Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Bend back the headlining and refit the clips.
  4. Fit the centre head restraint.
  5. Return the seat cushions and backrests to the upright position.
  6. Fit the courtesy handle on the LH and RH sides.
  7. Fit the brake light cover.
  8. Fit the LH and RH C-pillar trim.
