Main Beam, Halogen: Diagnosis

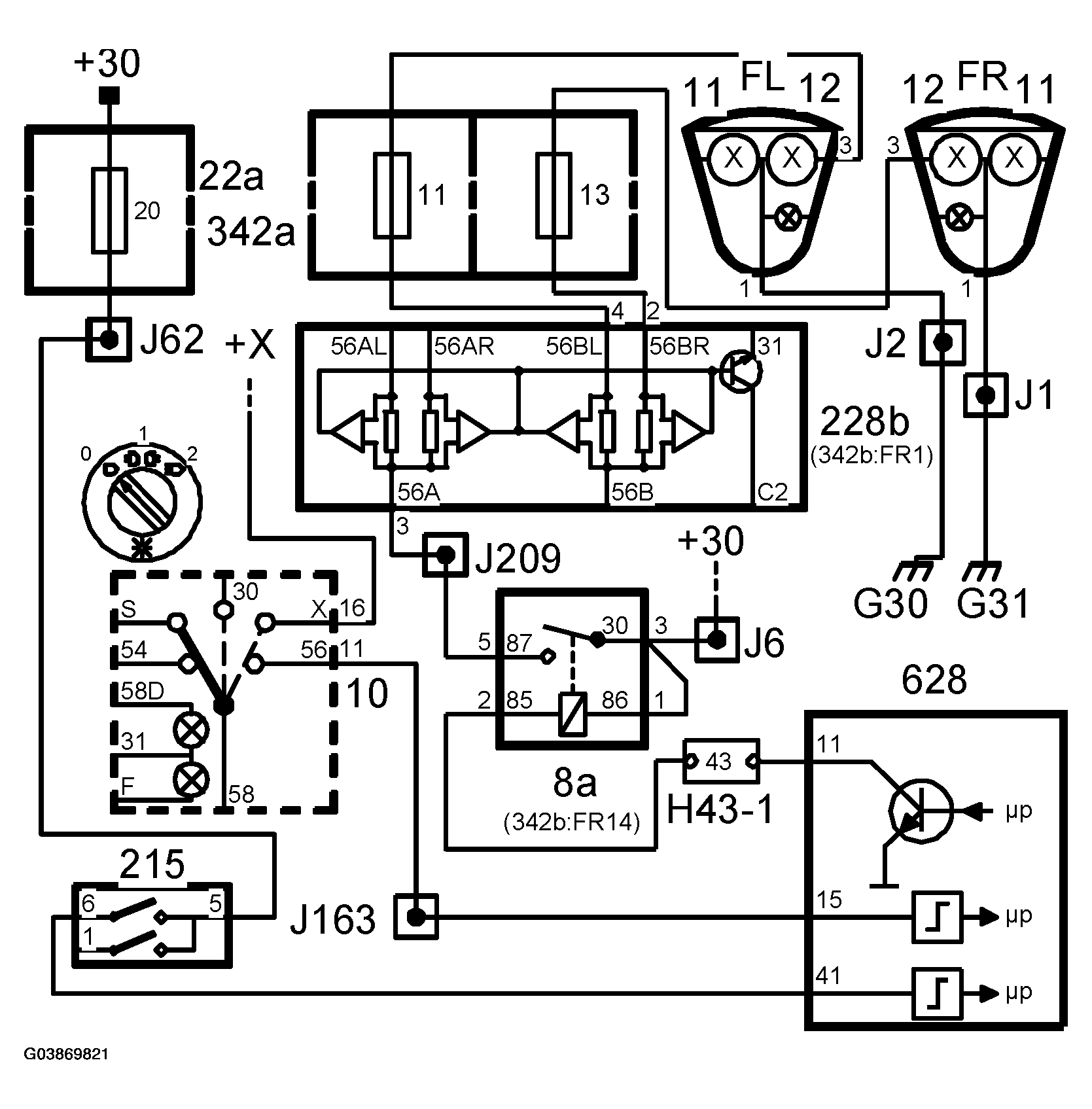

Fig 1: Identifying Main Beam Circuit Diagram - Halogen

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Diagnostic trouble code B2280 is generated in the event of an open circuit or a short circuit to ground in the main-beam relay circuit.

DTCs are not generated if the voltage is below 11 V or during diagnostic communication.

This function does not have diagnostics.
