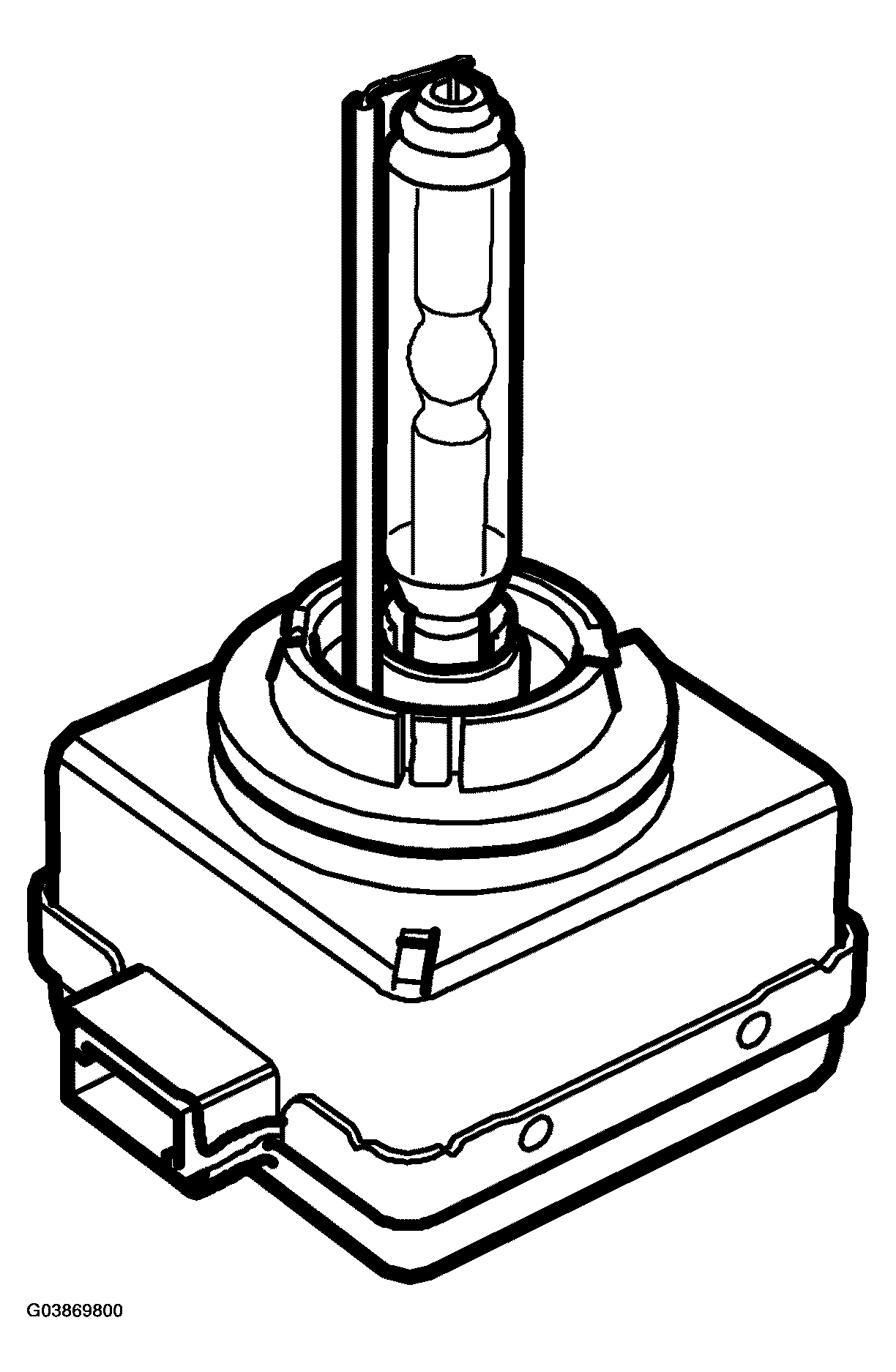

Xenon Lamp With Ignition Transformer
Courtesy of SAAB-SCANIA OF AMERICA, INC. XENON LAMP WITH IGNITION TRANSFORMER SPECIFICATIONS
| Location: |
|
In headlamp |
| Manufacturer |
|
Osram |
| Type designation |
|
D1S Xenarc |
| Power |
W |
35 +/- 3 |
| Ignition voltage |
V |
approx. 23,000 |
| Operating voltage |
V |
85 +/- 17 |
| Max starting time |
s |
1.3 |
| Luminous flux (60s after start) |
lm |
3200 +/- 450 |
