Home >> Saab >> 2005 >> 9-5 Linear, Automatic >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Interior/Illumination Lights >> Lighting And Signaling Systems >> Fault Diagnosis Fault Codes >> DTC B1220: Map Light >> Fault symptom

Fault symptom

Map lighting does not work.

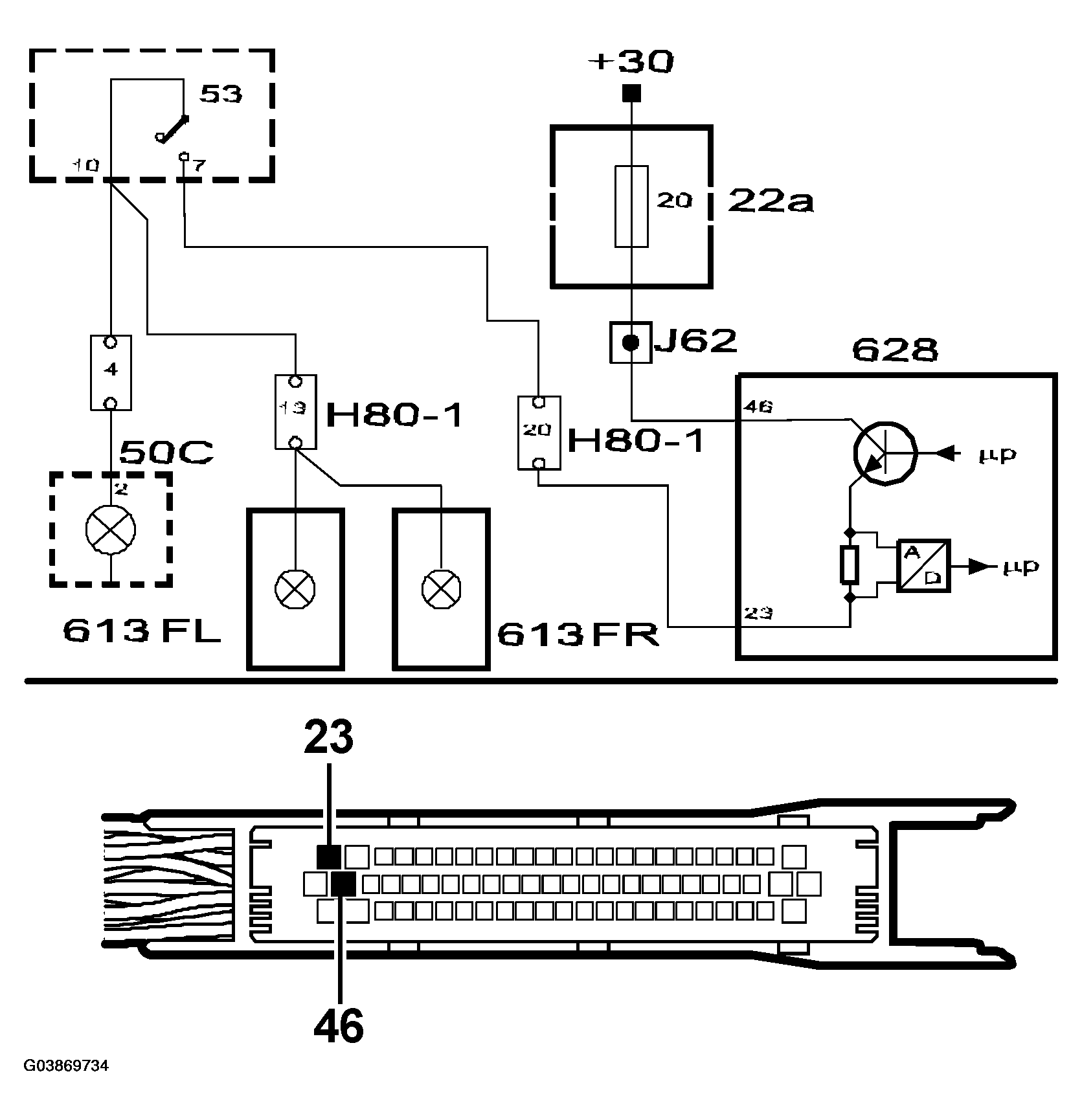

Fig 1: Identifying Map Light Circuit Diagram And Connector Terminals (1 Of 2)
G03869734Courtesy of SAAB-SCANIA OF AMERICA, INC.

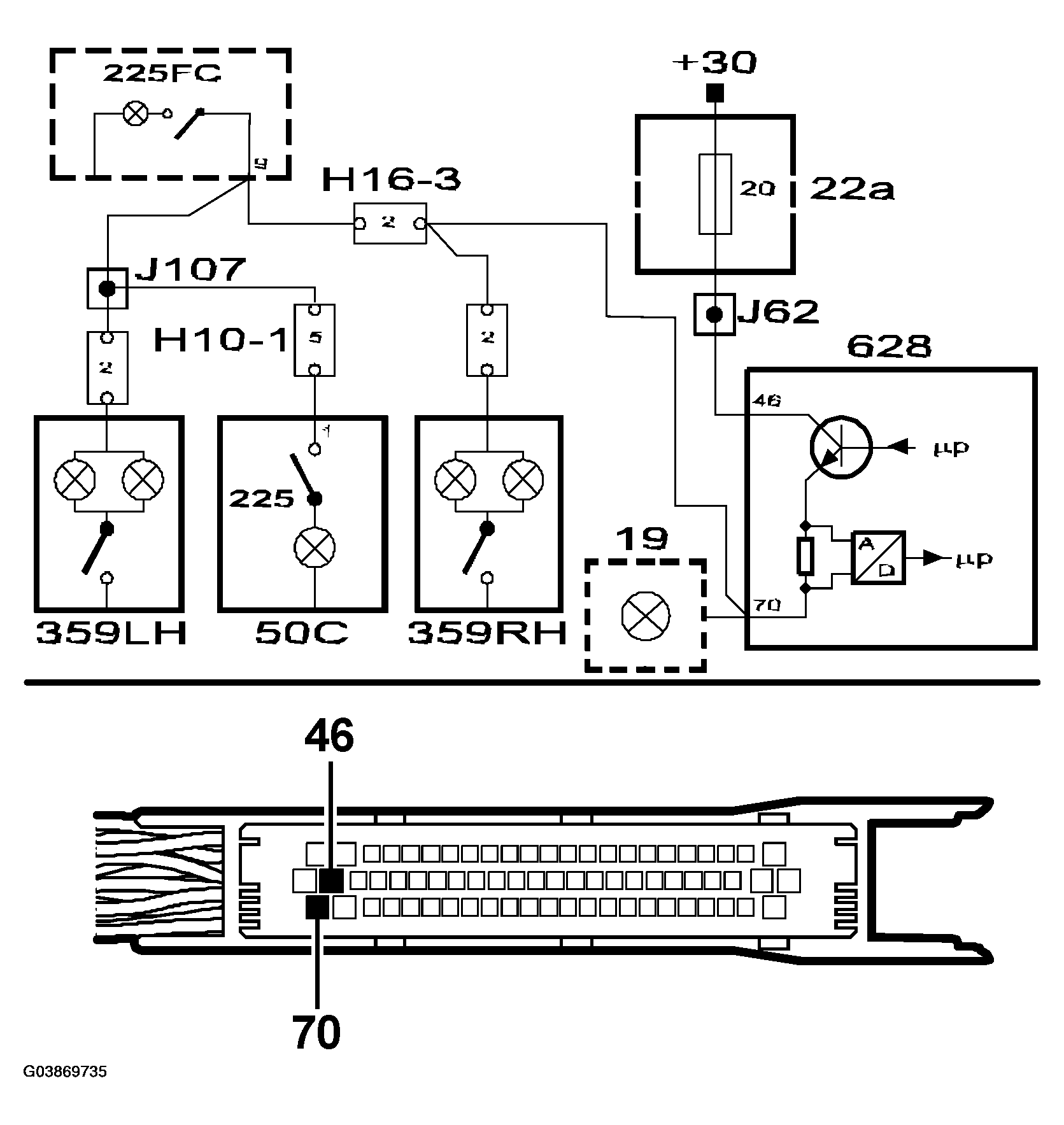

Fig 2: Identifying Map Light Circuit Diagram And Connector Terminals (2 Of 2)
G03869735Courtesy of SAAB-SCANIA OF AMERICA, INC.
