DTC B1150: Front Fog Lights Relay: Notes

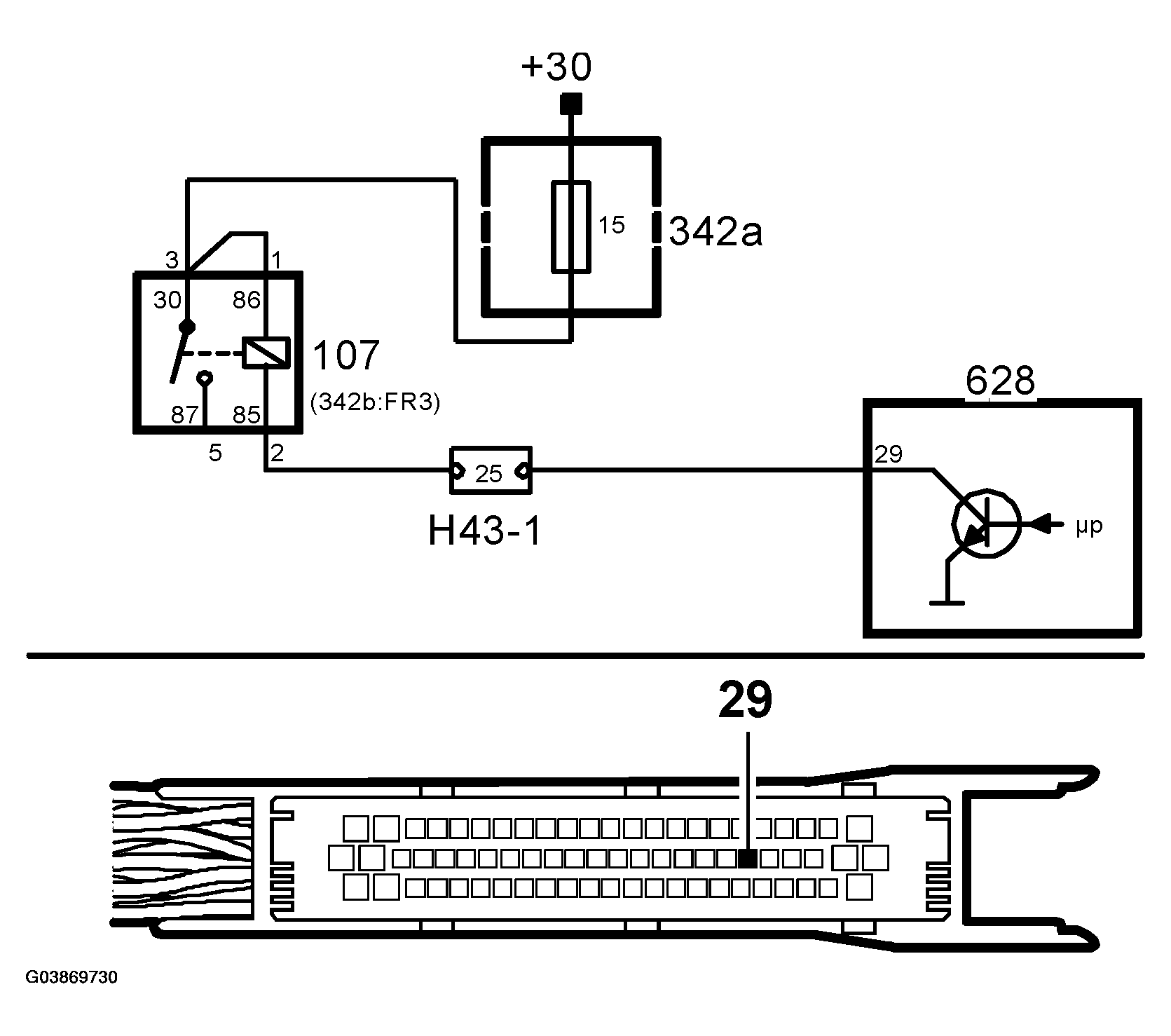

Fig 1: Identifying Front Fog Lights Relay Circuit Diagram And Connector Terminals

G03869730

Courtesy of SAAB-SCANIA OF AMERICA, INC.
