To fit

IMPORTANT: ESD-SENSITIVE COMPONENT
Earth yourself by touching the car body before plugging in/unplugging components. Do not touch the component pins  . Read BEFORE CHANGING A CONTROL MODULE  before changing a control module.
  1. Plug in the control module.

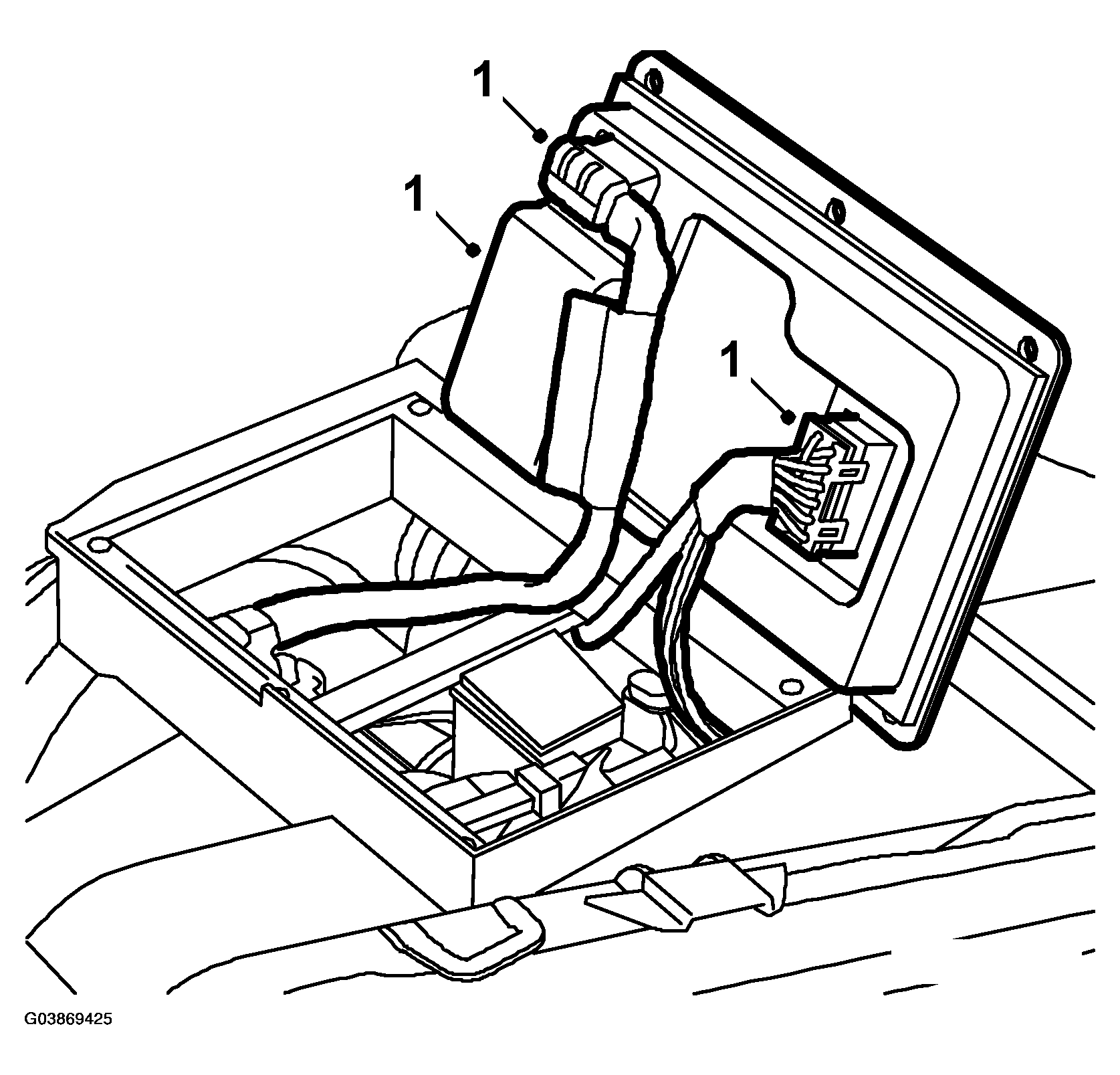

    Fig 1: Illustration For Step 1
    G03869425Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Fit the control module into the headlamp.

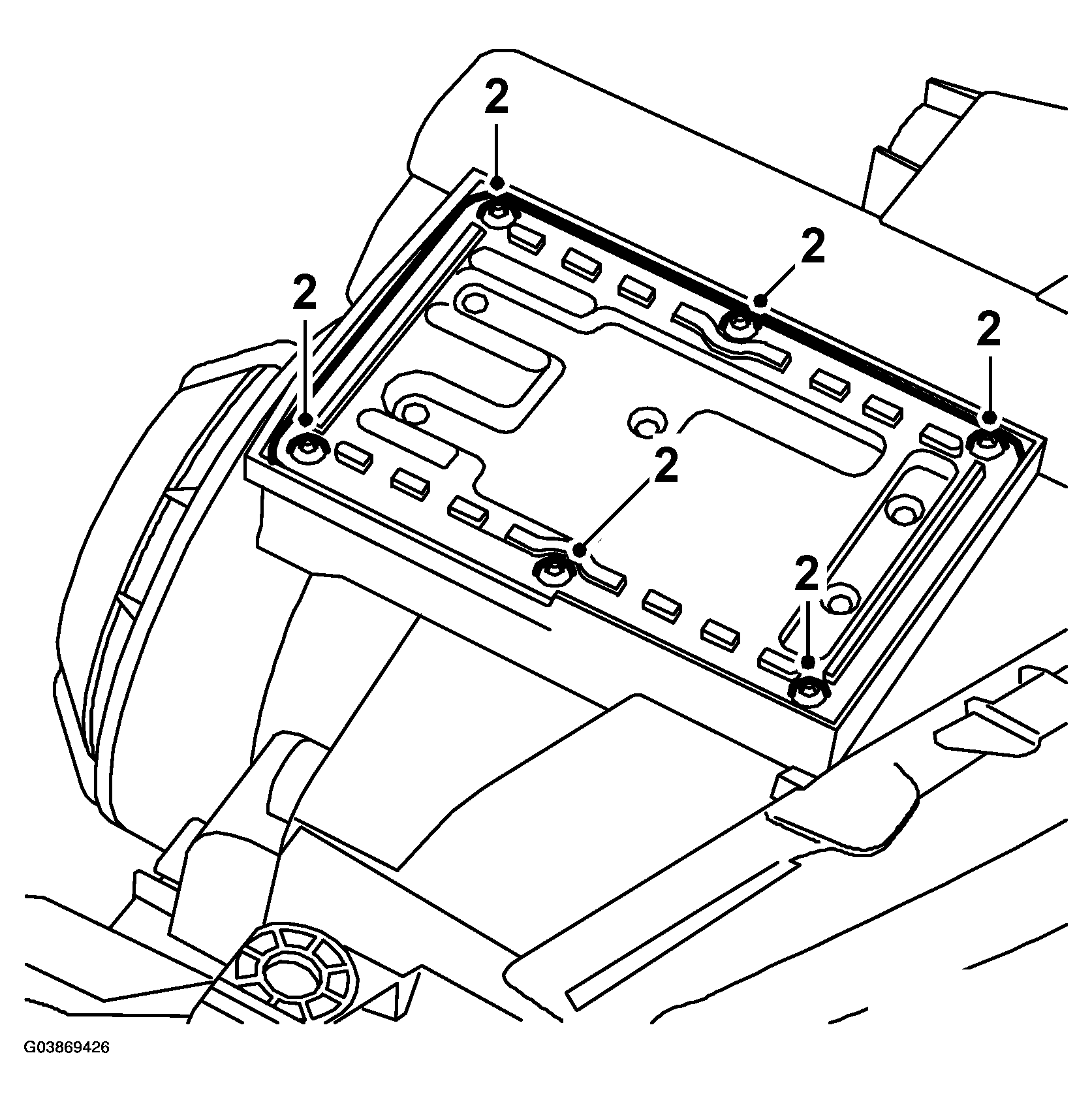

    Fig 2: Illustration For Step 2
    G03869426Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Plug the connector to the xenon lamp.

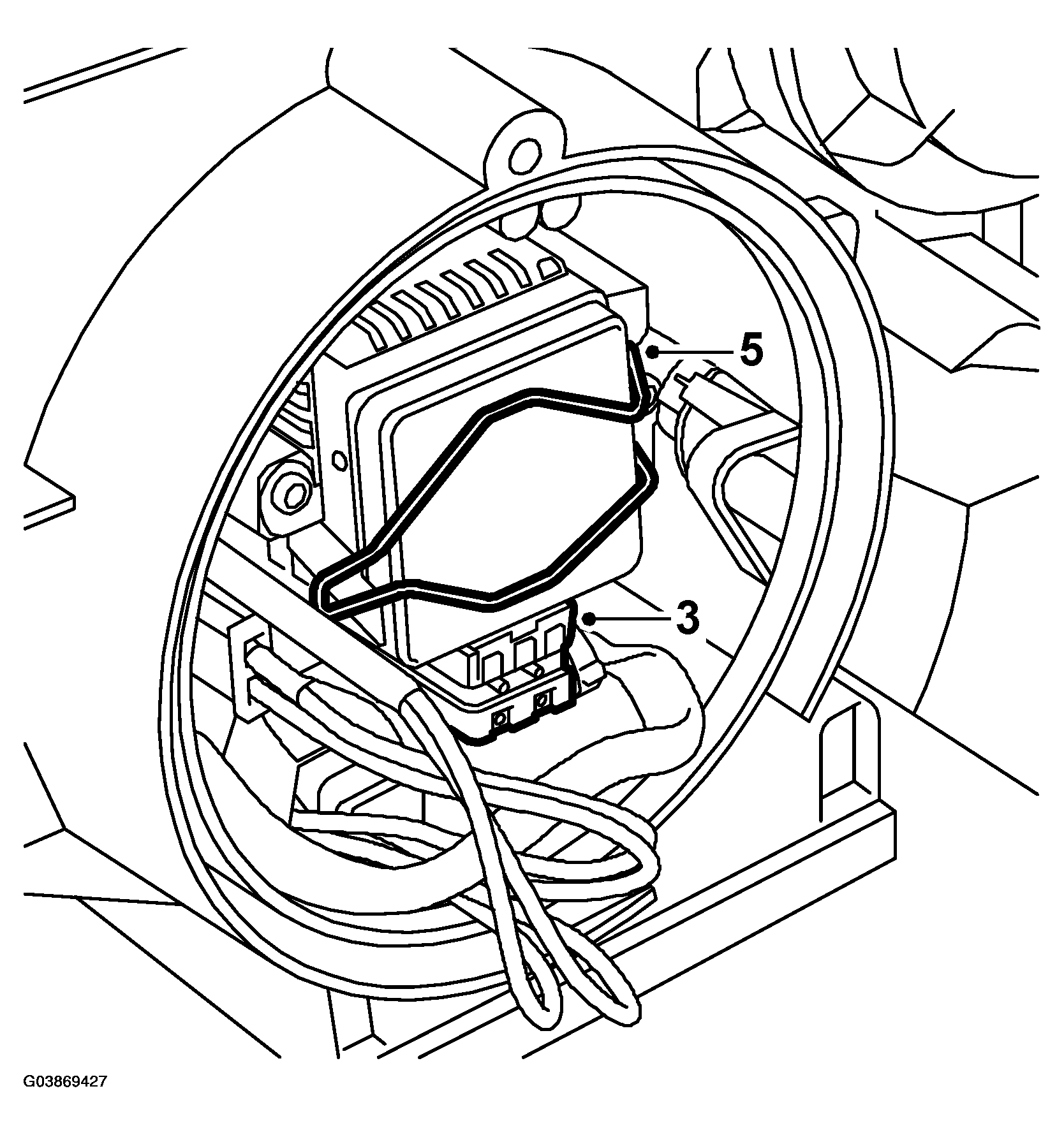

    Fig 3: Illustration For Step 3, 5
    G03869427Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Position the bulb by carefully inserting it straight into the headlamp housing.
  5. Snap on the clip securing the xenon lamp.
  6. Fit the headlamp, see HEADLAMP  .
