To remove

  1. Pull loose the rear roof cover plate, which is fastened with clips.

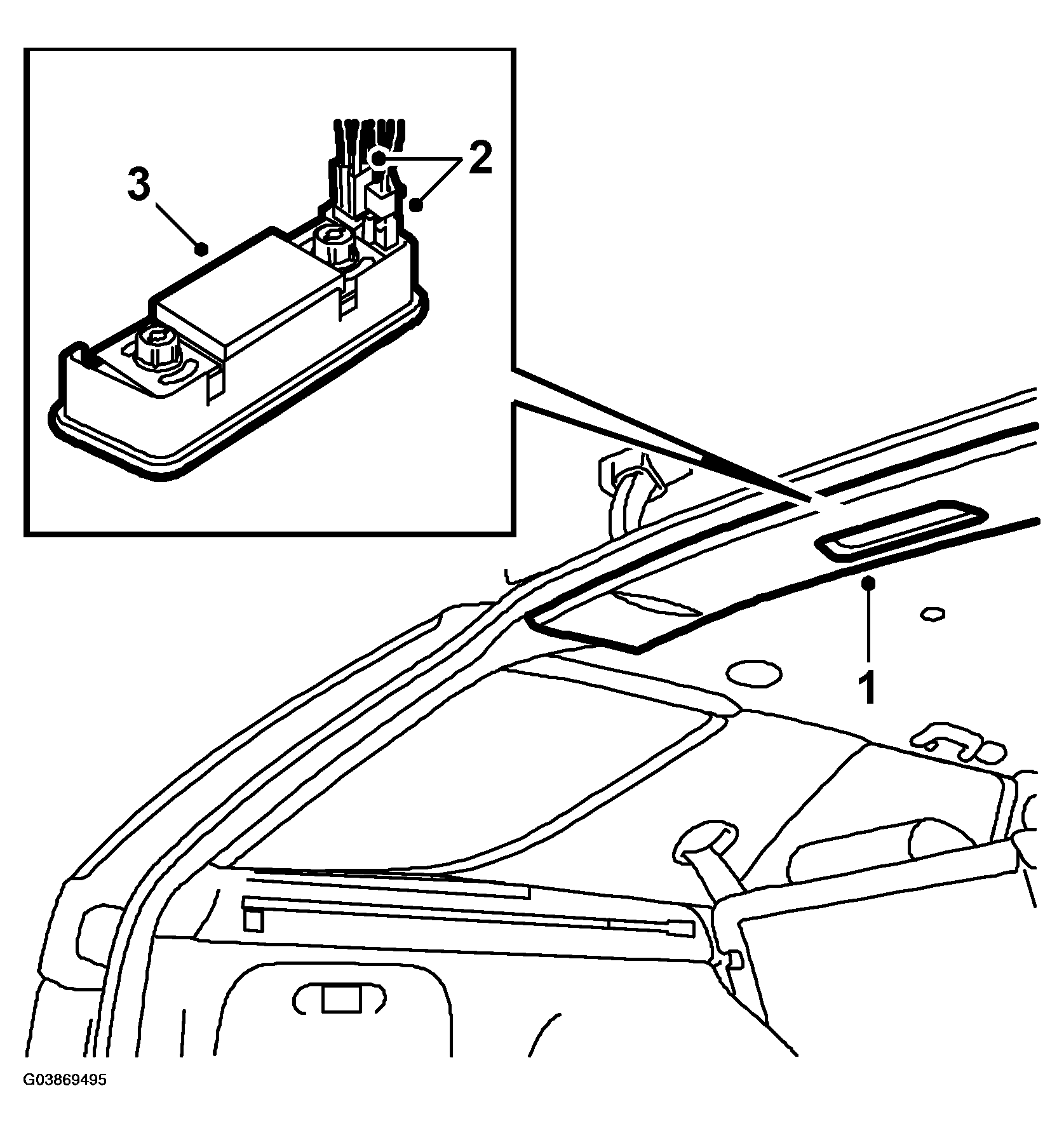

    Fig 1: Illustration For Step 1-3
    G03869495Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Unplug the connector and remove the cover plate.
  3. Remove the lighting by prying with a screwdriver in the recesses.
