To fit

  1. Position the headlamp drain hose so that it point downward.
    IMPORTANT: Make sure the headlamp drain hose is not pinched. The hose must not be kinked.

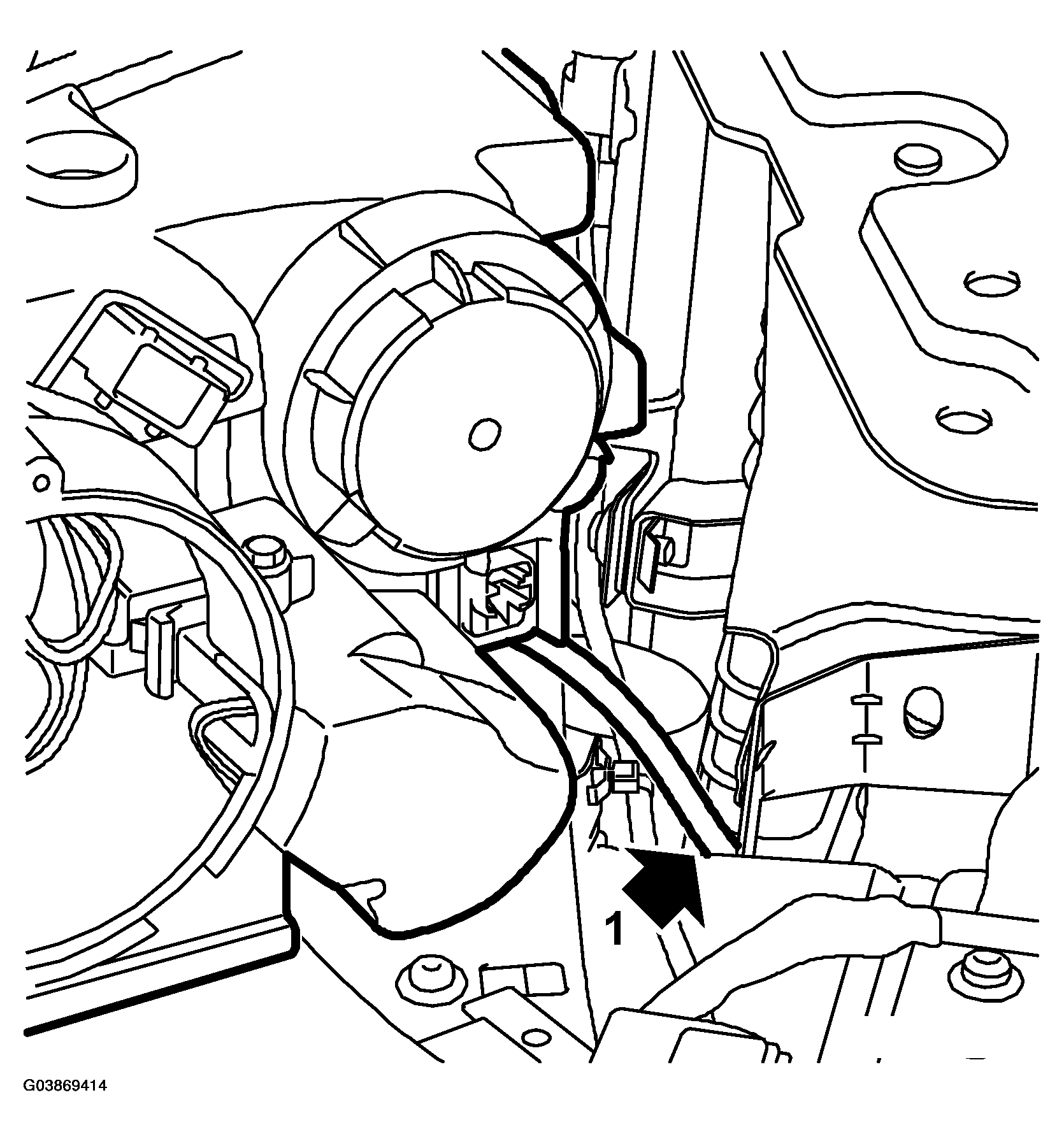

    Fig 1: Illustration For Step 1
    G03869414Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Spray with "Kontakt 61" and plug in the connector. Fit the headlamp at an angle towards the mounting. Press the clip onto the front wing.

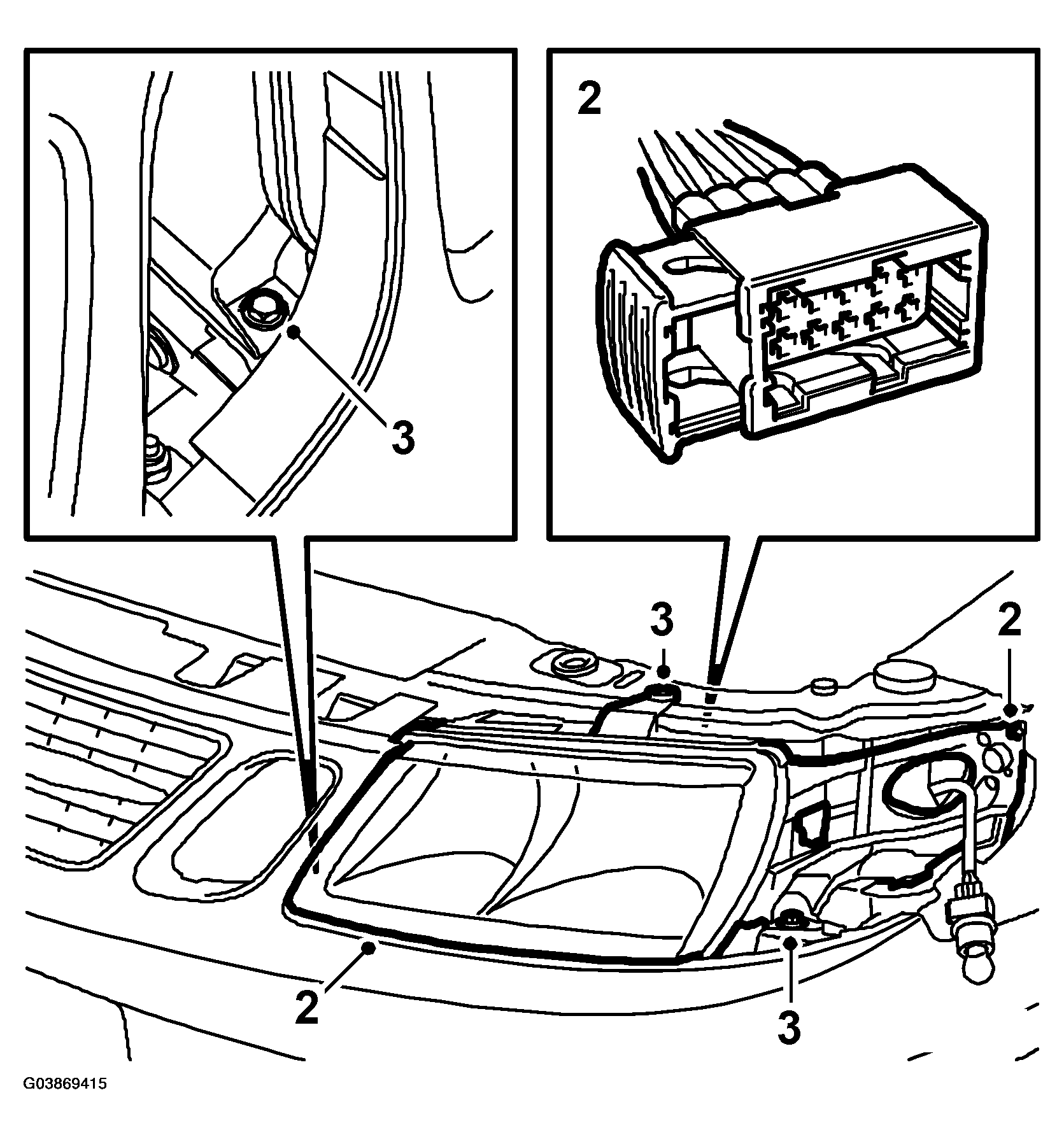

    Fig 2: Illustration For Step 2-3
    G03869415Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Fit the screws to secure the headlamp.
  4. Fit the protective cover on the lamp.
  5. Plug in the direction indicator.

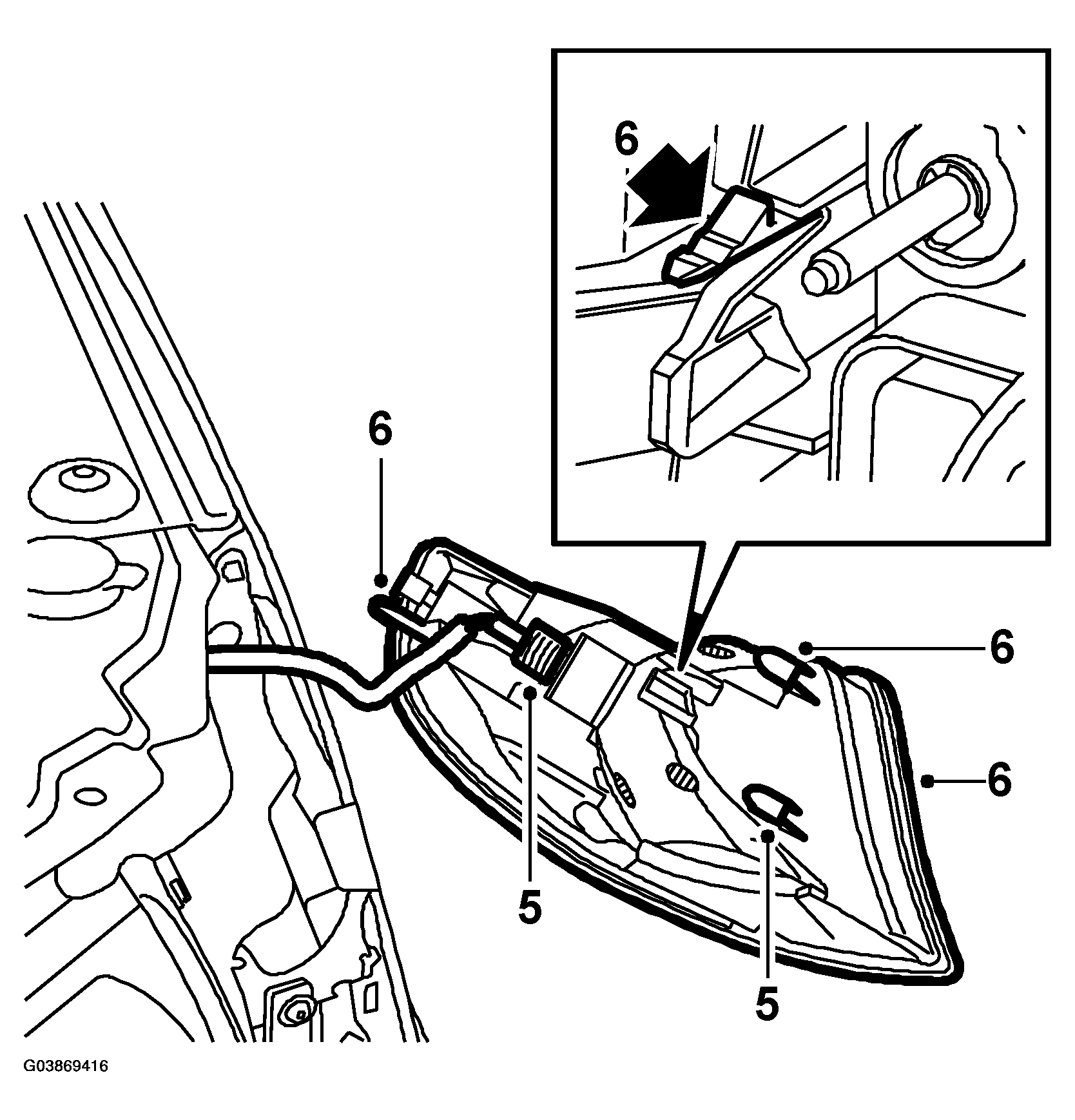

    Fig 3: Illustration For Step 5-6
    G03869416Courtesy of SAAB-SCANIA OF AMERICA, INC.
  6. Place the direction indicator so that the three guide pins are correctly located.

    Press on the direction indicator, making sure the clip fastens properly.

  7. Fit the side grille and center grille by pressing them back in position.

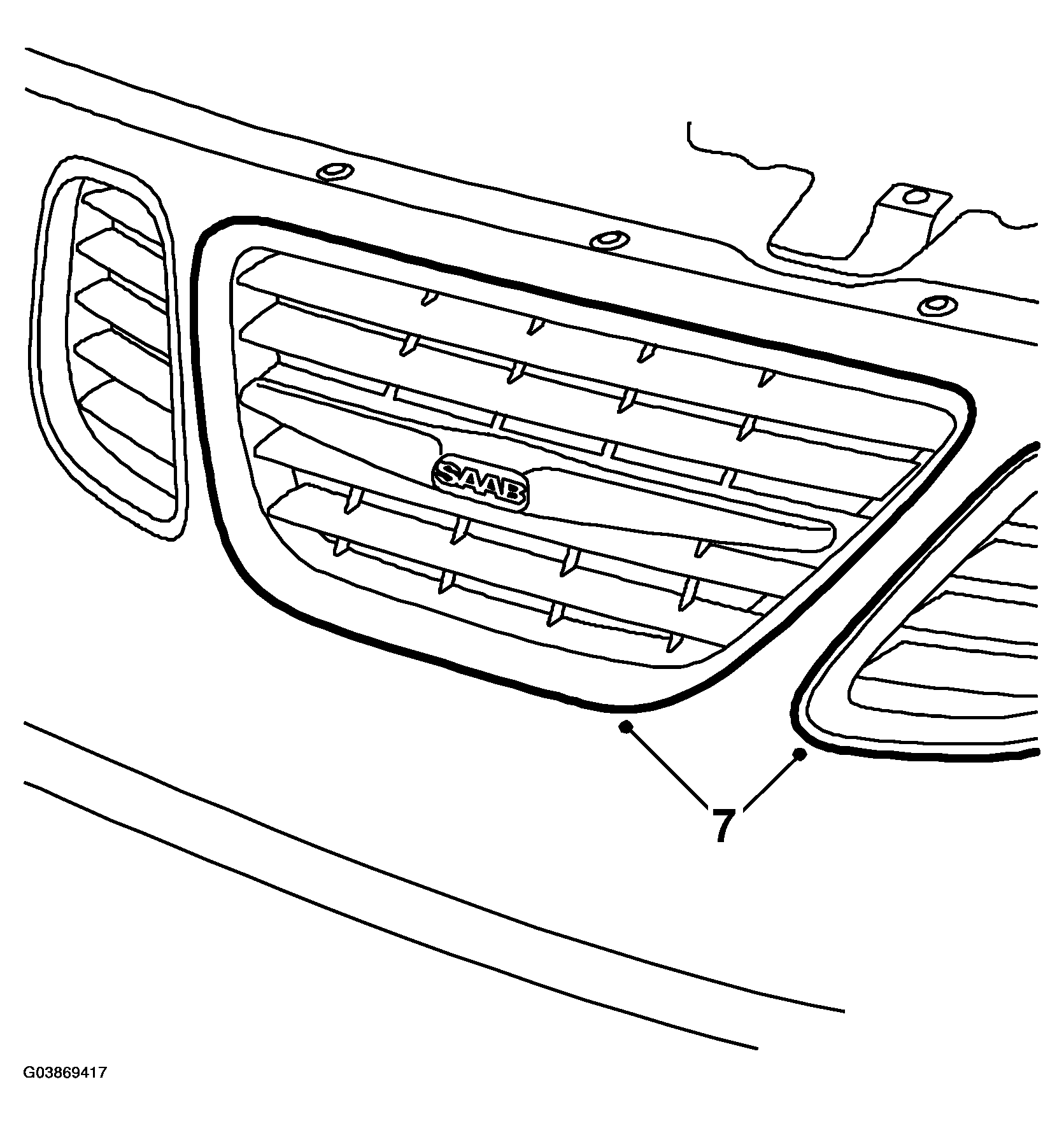

    Fig 4: Illustration For Step 7
    G03869417Courtesy of SAAB-SCANIA OF AMERICA, INC.
  8. LH  : Fit the top of the battery cover.
  9. Check headlamp alignment and adjust as necessary, see HEADLAMP ADJUSTMENT  .
