To fit

  1. Position the fog light and fit the bolts.

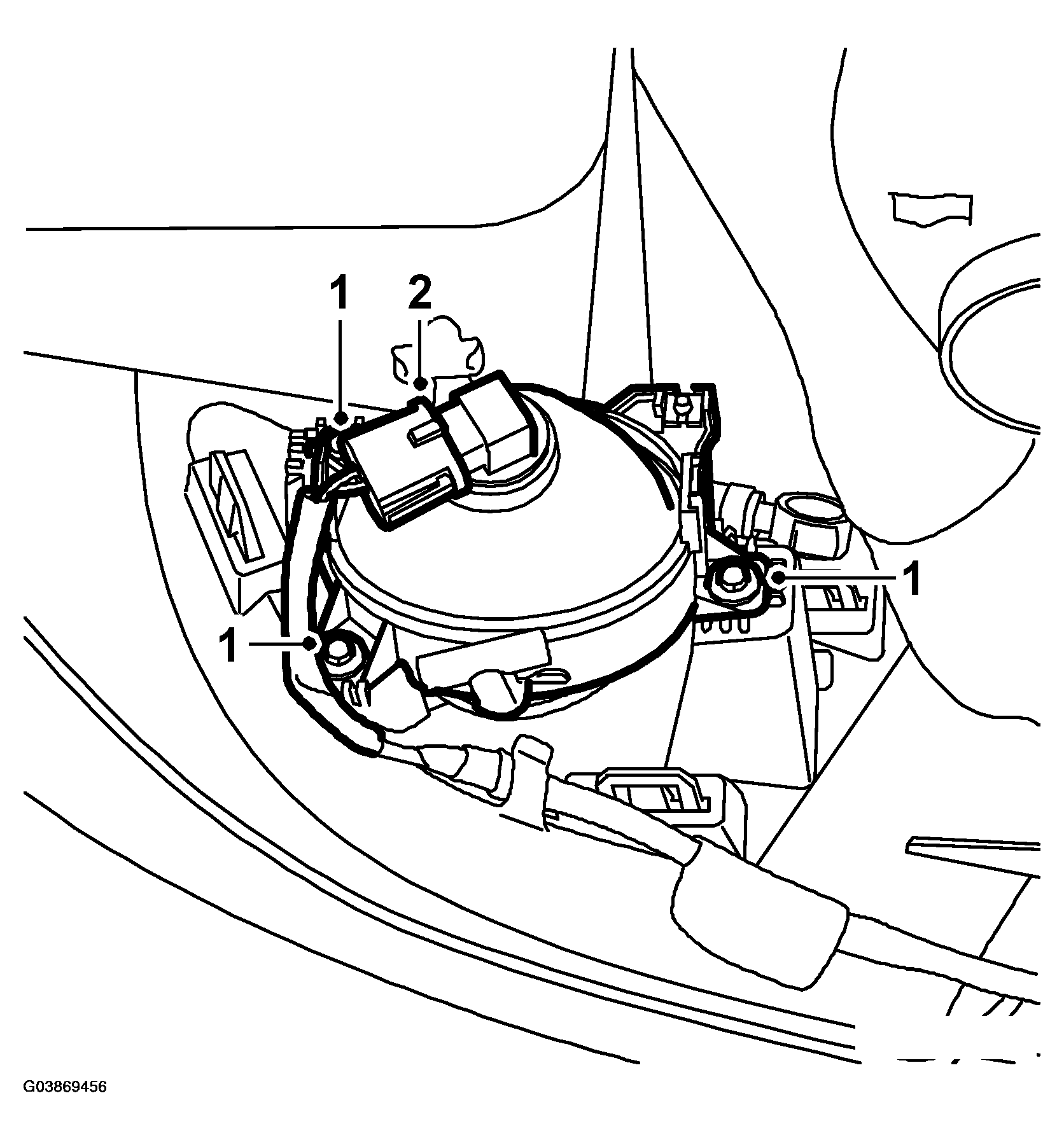

    Fig 1: Illustration For Step 1-2
    G03869456Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Plug in the connector.
  3. Adjust the fog lights and check their function.

    Lower the car.
