To fit

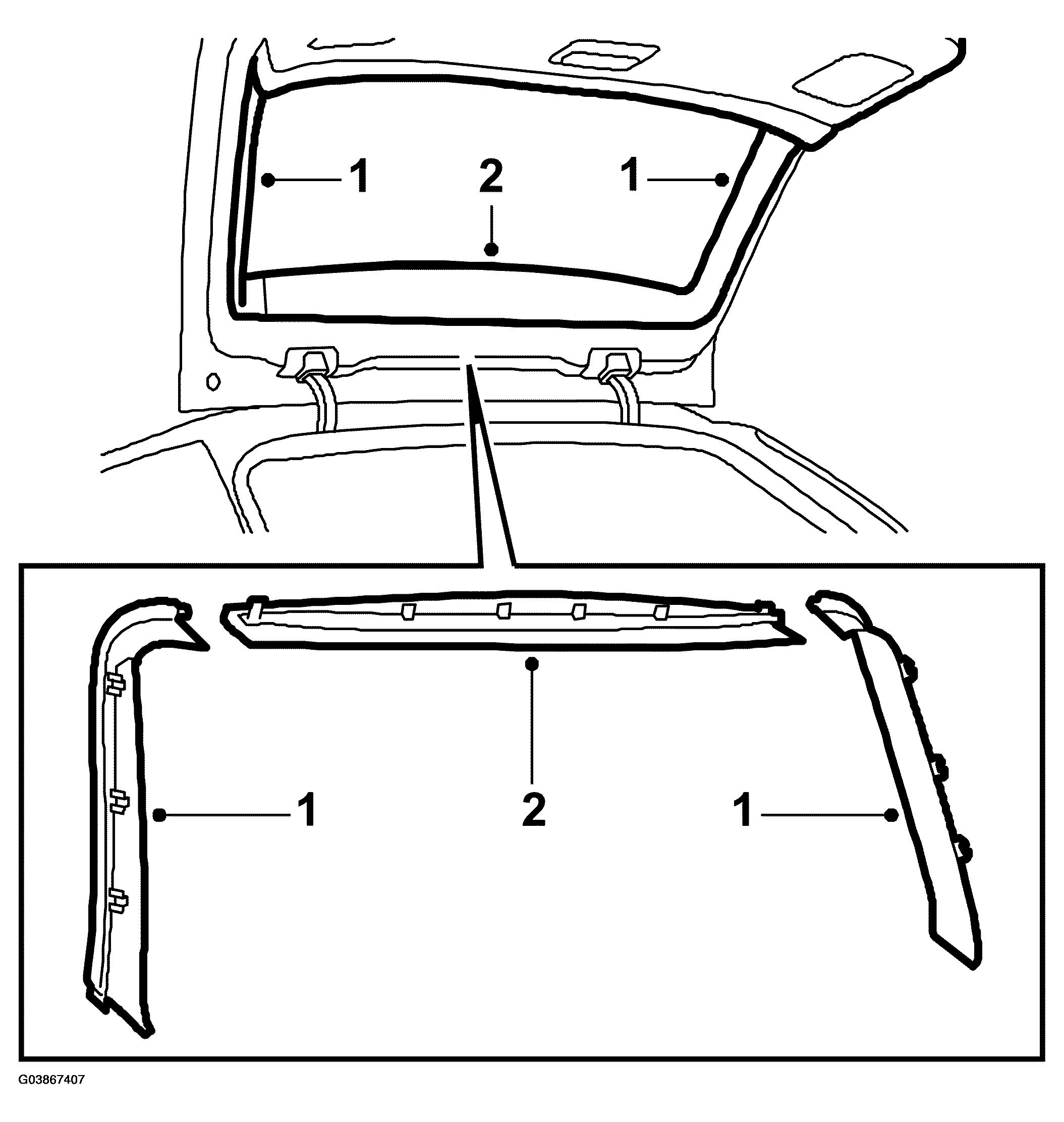

Fig 1: Illustration For Steps 1-2
G03867407Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Fit the side covers. Position them with the wider clip and press the remaining clips into place.
  2. Fit the upper window cover. Position it with the wider clip and press the remaining clips into place. Make sure that the edges are accurately fitted so that they clamp the side covers into place.
