To fit

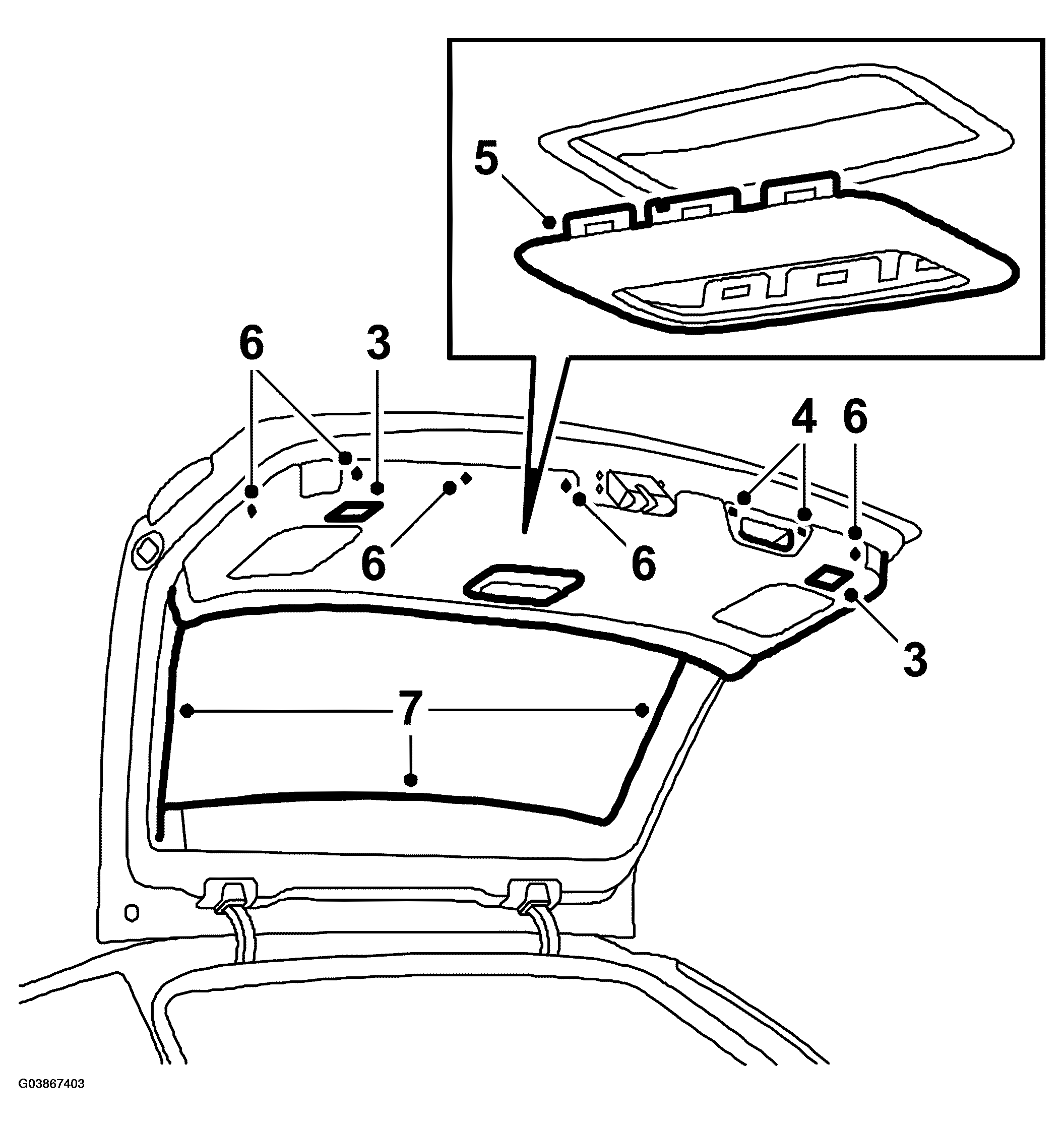

Fig 1: Illustration For Steps 3-7
G03867403Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Insert the locating pin in its hole and move the trim upwards, making sure that the lamps pass through their respective openings.
  2. Press the upper part of the trim into place.
  3. Press the lamps into the trim.
  4. Fit the screws securing the closing handle.
  5. Fit the opening handle frame by hooking the lower clips into place and then pressing the frame home so that the remaining clips engage.
  6. Fit the clips at sides and bottom.
  7. Fit the window covers.
  8. Close the tailgate.
