Changing bulb in the switch in the switch panel

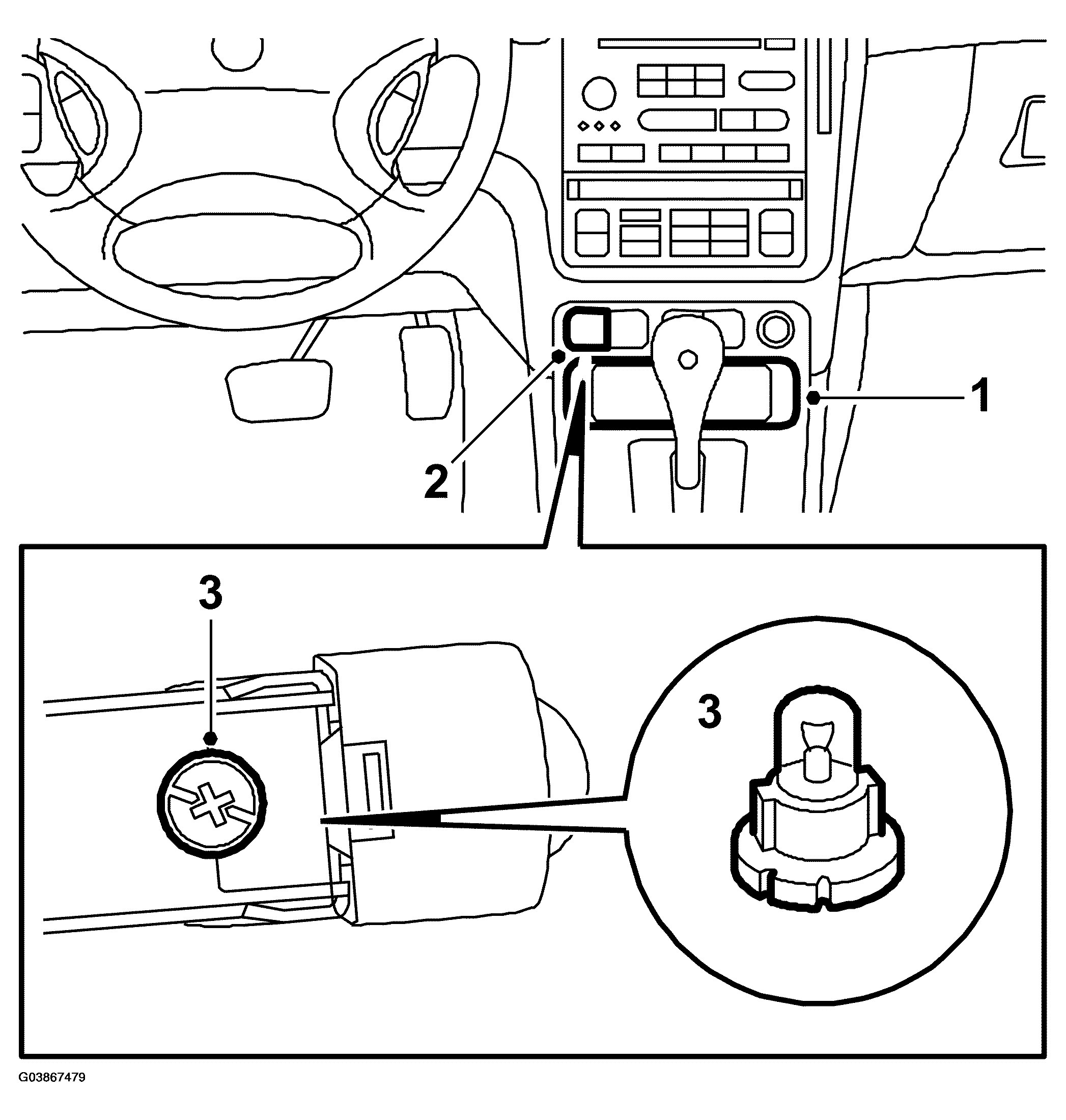

Fig 1: Illustration For Steps 1-3
G03867479Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Remove the storage compartment or ashtray.
  2. Insert a hand into the hole and press out the switch from inside.
  3. Turn the bulb on the bottom of the switch anti-clockwise and pull it straight out.
  4. Fit a new bulb and press the switch into the panel.
  5. Fit the storage compartment or ashtray
