To remove

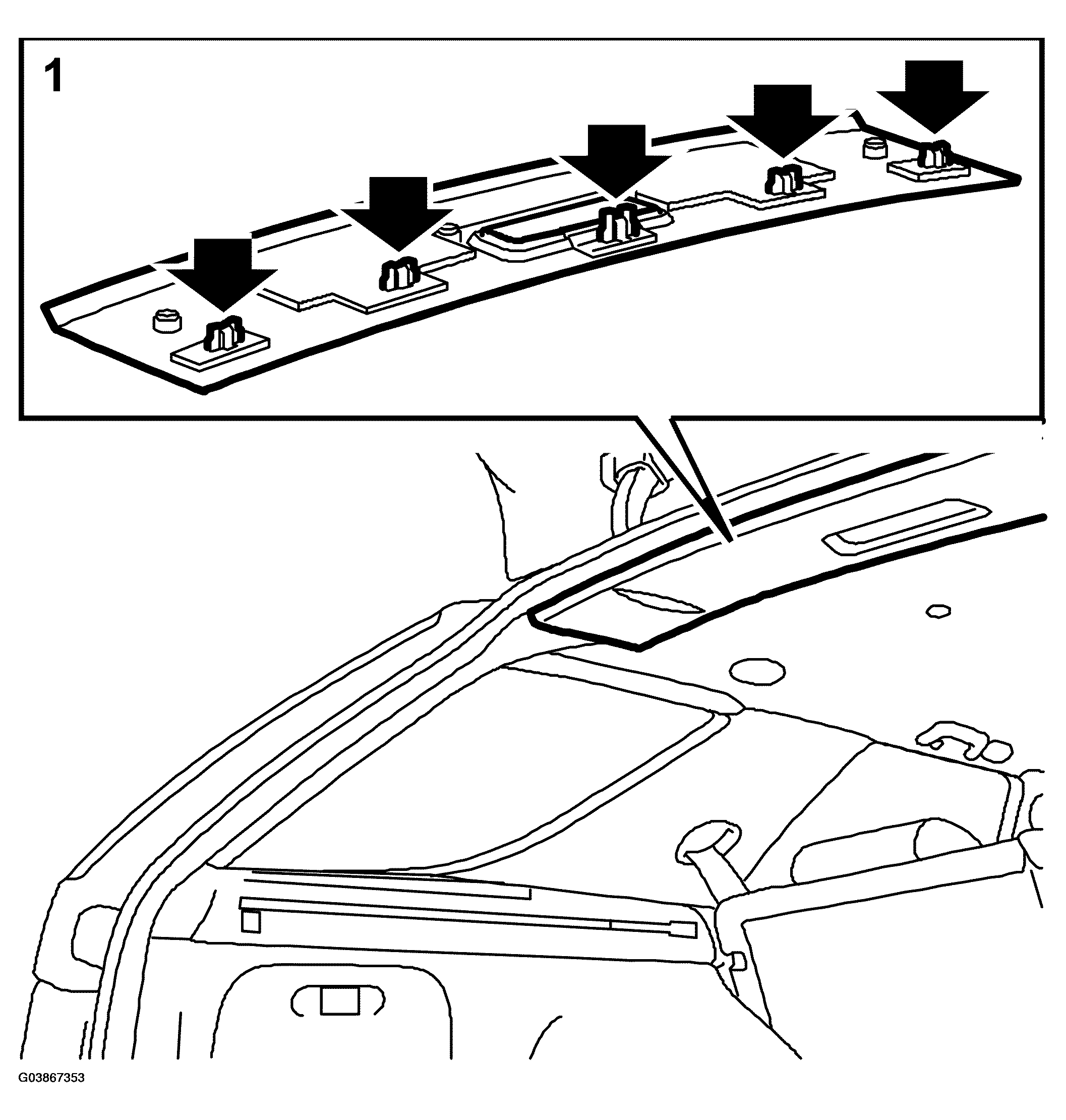

Fig 1: Identifying Roof Covering Luggage Compartment
G03867353Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Pull away the rear roof covering, fastened with clips.
  2. Unplug the luggage compartment light connector and lower the roof covering.

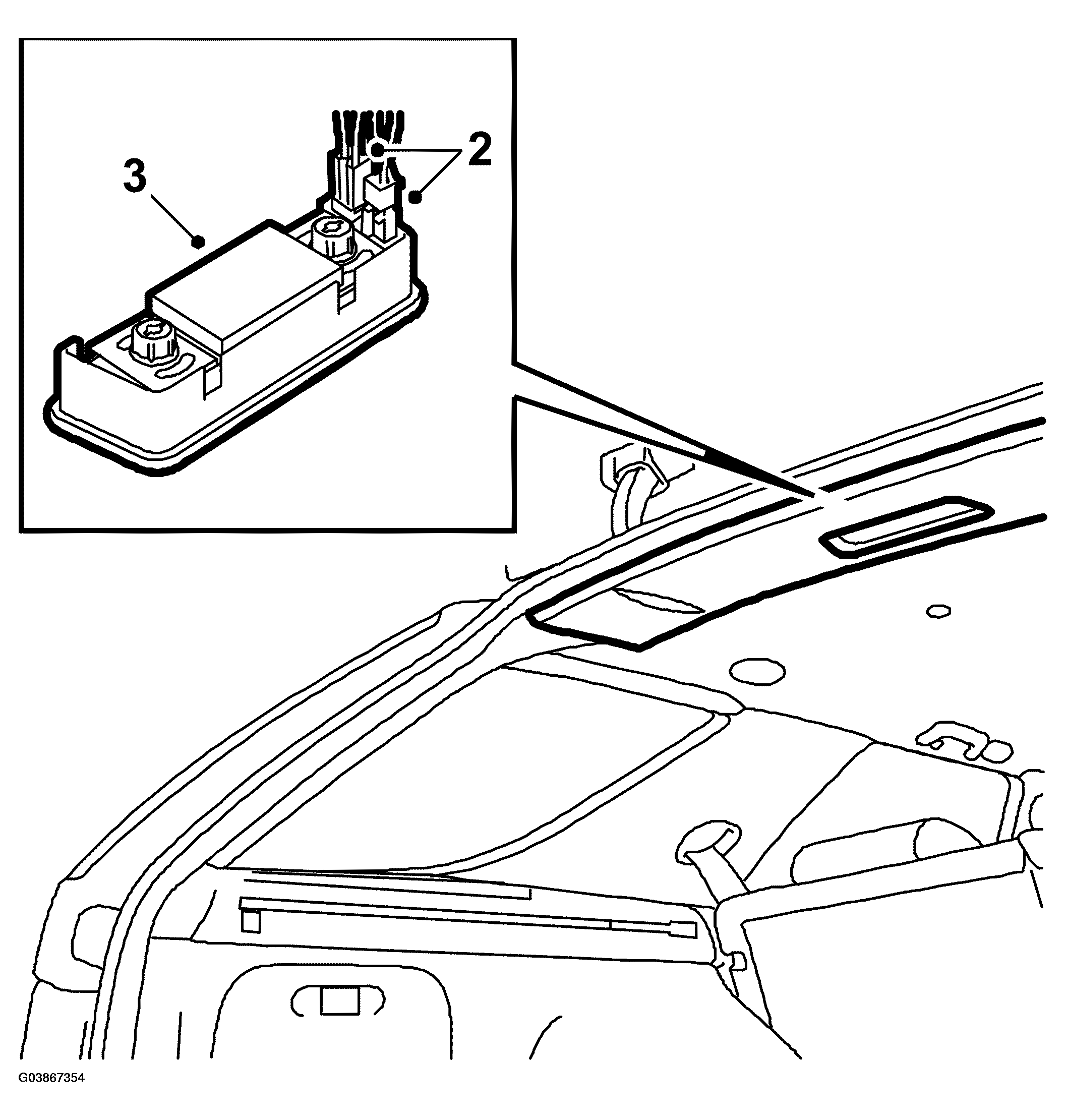

    Fig 2: Illustration For Steps 2-3
    G03867354Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Remove the light by inserting a screwdriver in the recesses and prying it off.
