Home >> Saab >> 2005 >> 9-5 Linear, Automatic >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Interior/Exterior Trim >> Interior Equipment >> Adjustment - Replacement >> Roof Covering Luggage Compartment, 5D >> To fit

To fit

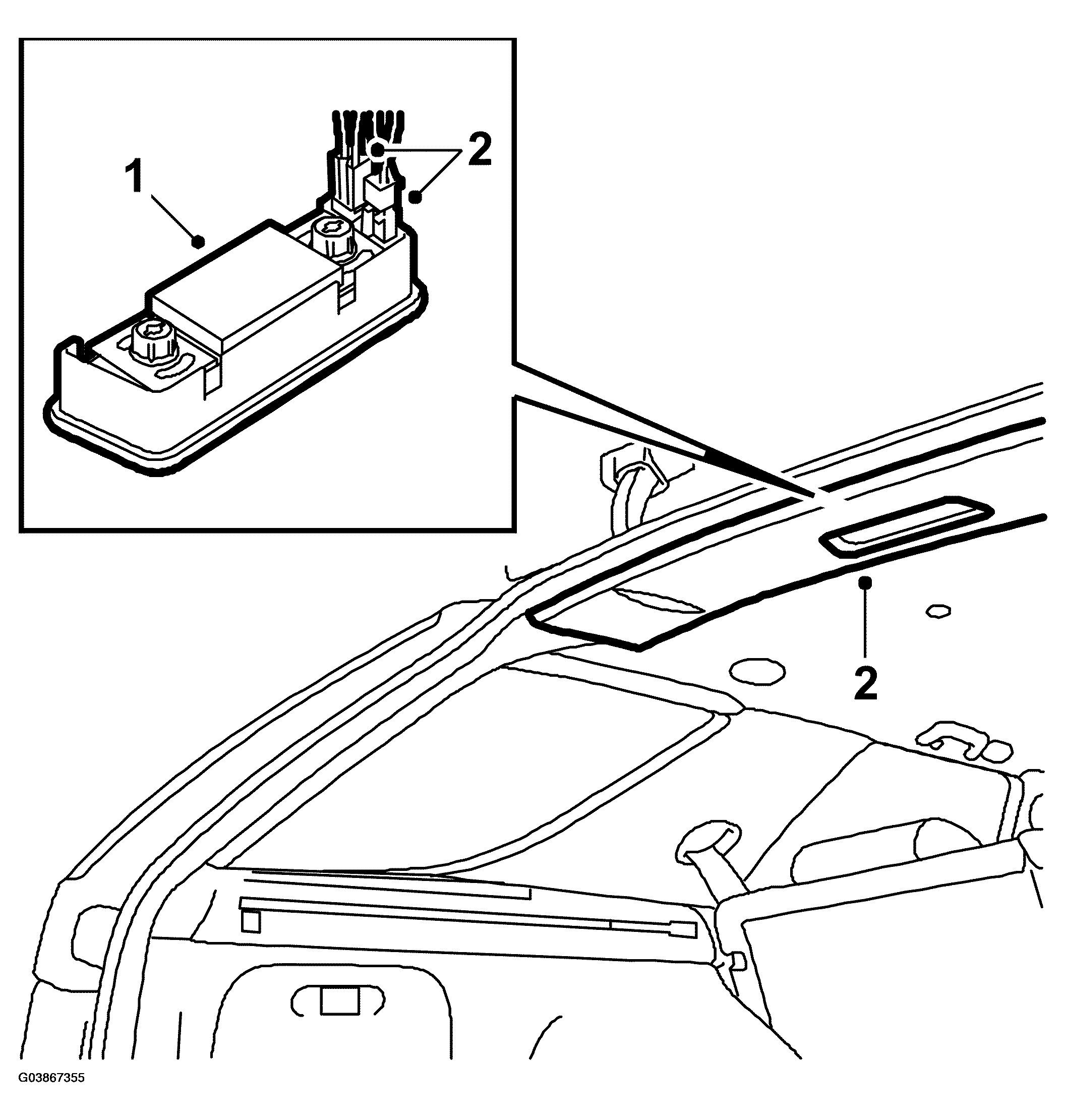

Fig 1: Illustration For Steps 1-2
G03867355Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Fit the lighting.
  2. Plug in the luggage compartment light connector and press the roof covering into place.

    Check the fit of the weatherstrip over the edge of the roof covering.
