To remove

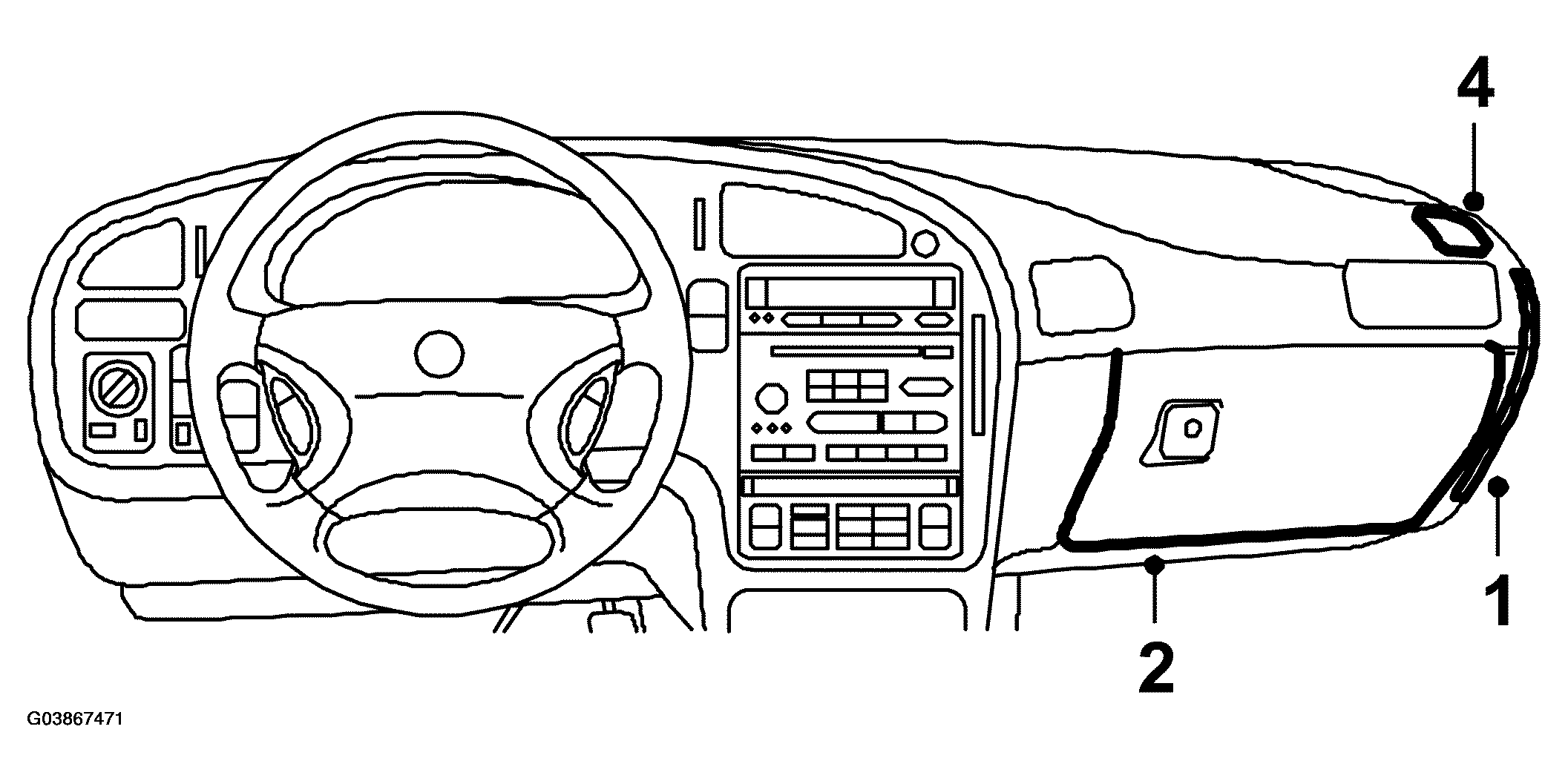

Fig 1: Illustration For Steps 1, 2 & 4
G03867471Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Remove the side panel on the passenger side.
  2. Remove the glove box.
  3. Lift out the air duct.
  4. Remove the air duct to the side defroster.
  5. Unscrew the air vent from the inside of the dashboard, 3 screws.

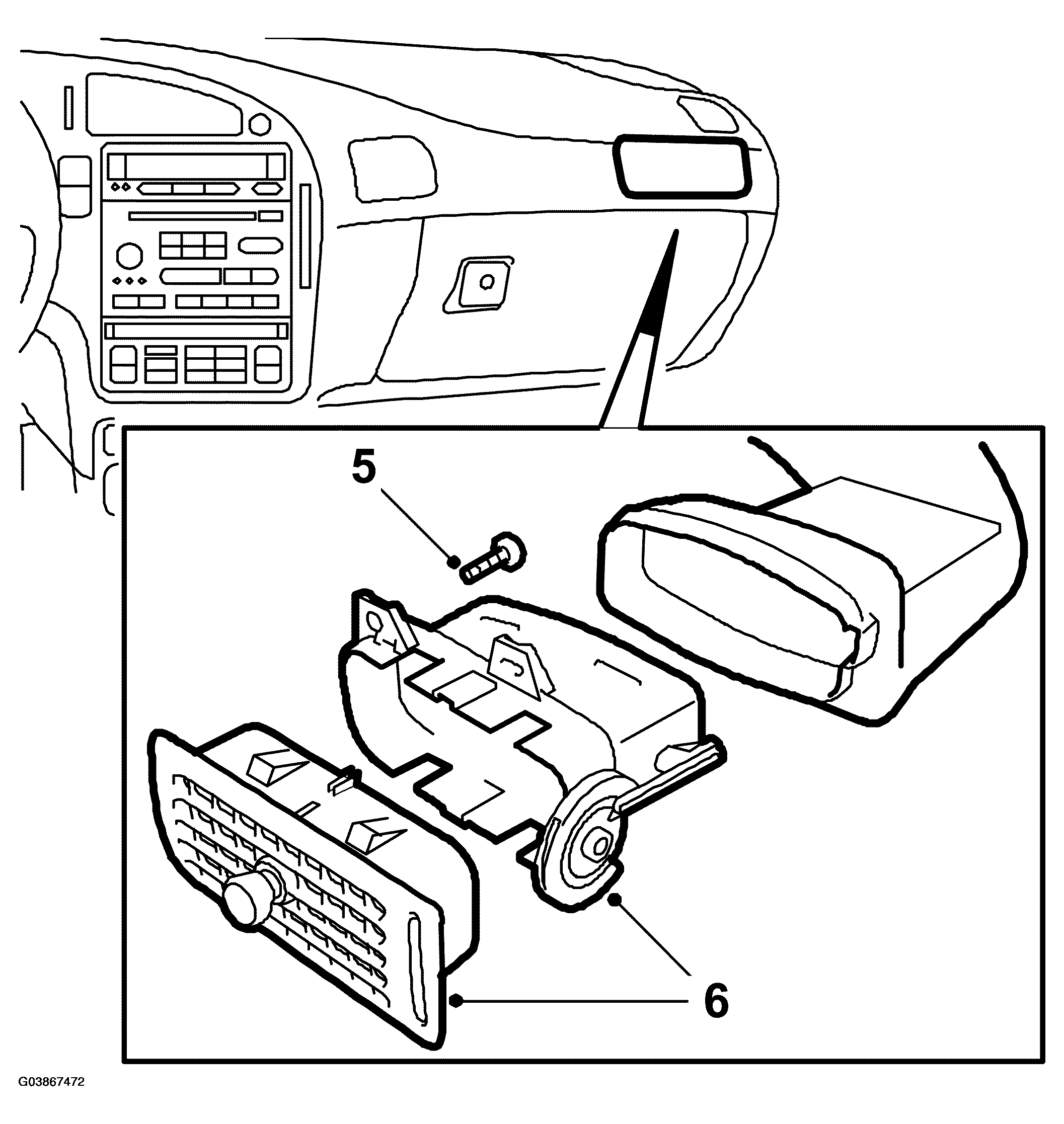

    Fig 2: Illustration For Steps 5-6
    G03867472Courtesy of SAAB-SCANIA OF AMERICA, INC.
  6. Remove the air vent in two sections: a control section and a grille section.
