To remove

NOTE: Removal will be easier if done by 2 persons.

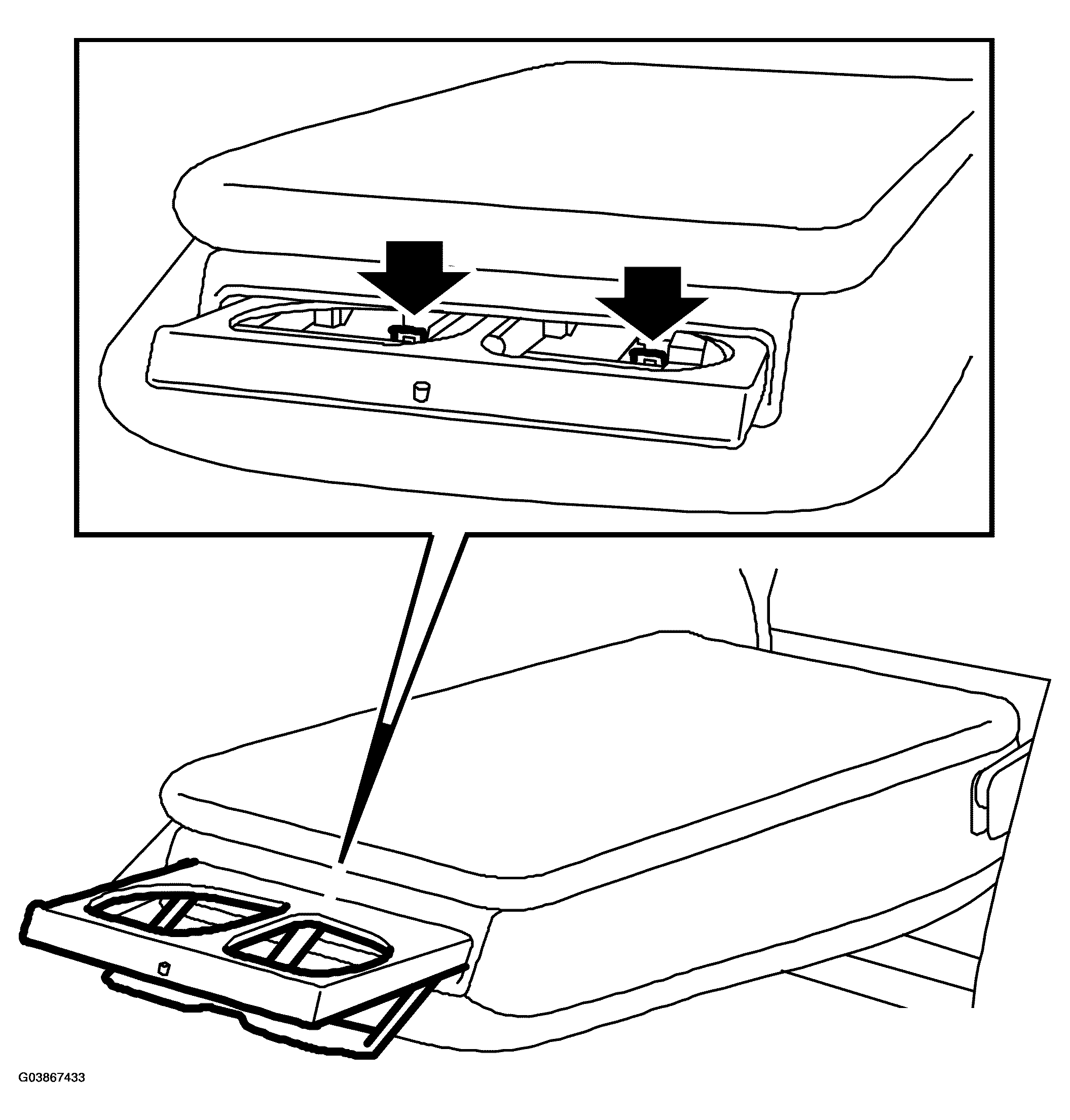

Fig 1: Identifying Rear Seat Cup Holder
G03867433Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Lower the rear seat armrest and press the cup holder halfway out.
  2. Use screwdrivers to bend aside the two locking tongues while withdrawing the cup holder from the armrest.

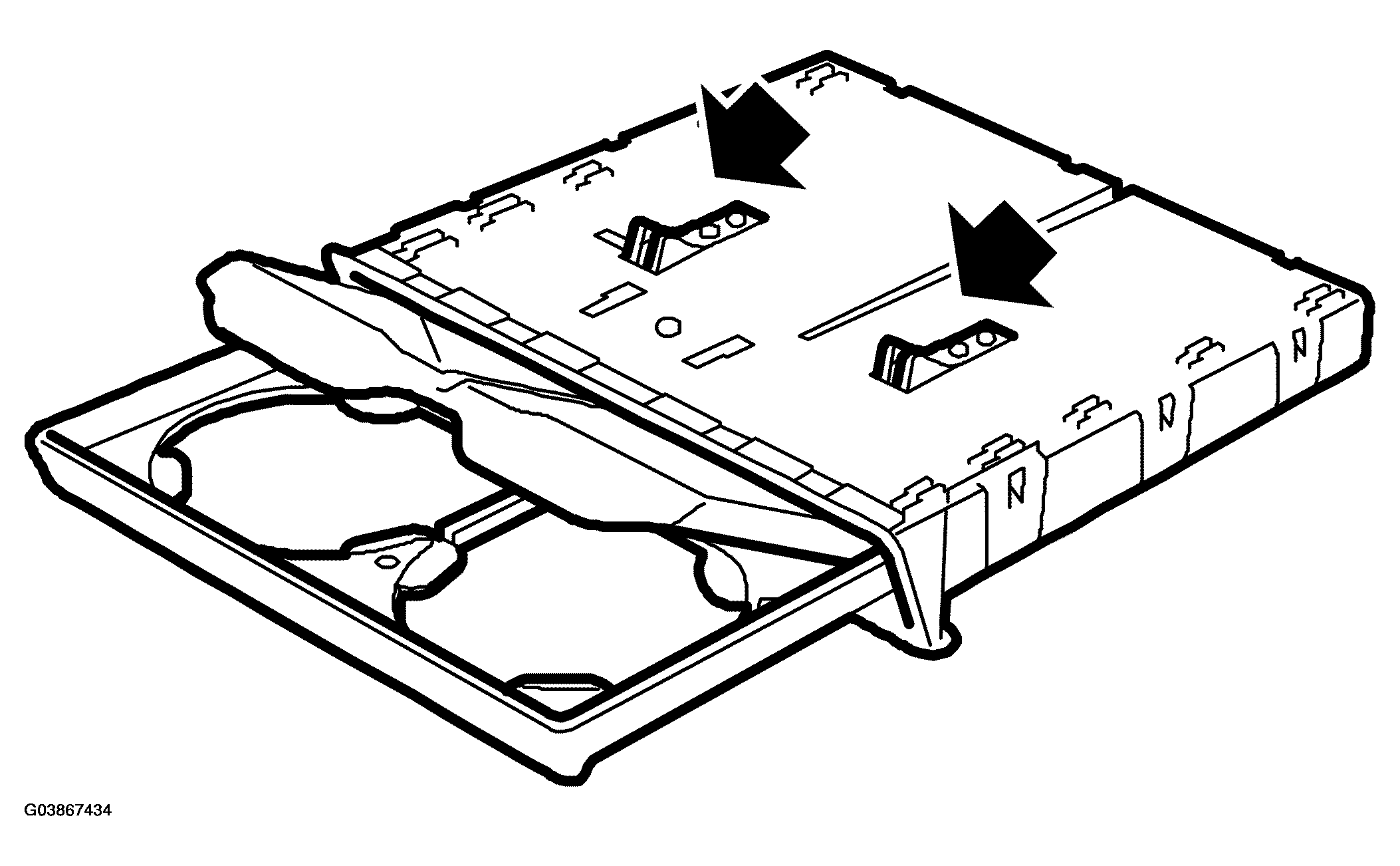

    Fig 2: Pressing Cupholder Out
    G03867434Courtesy of SAAB-SCANIA OF AMERICA, INC.
