To remove

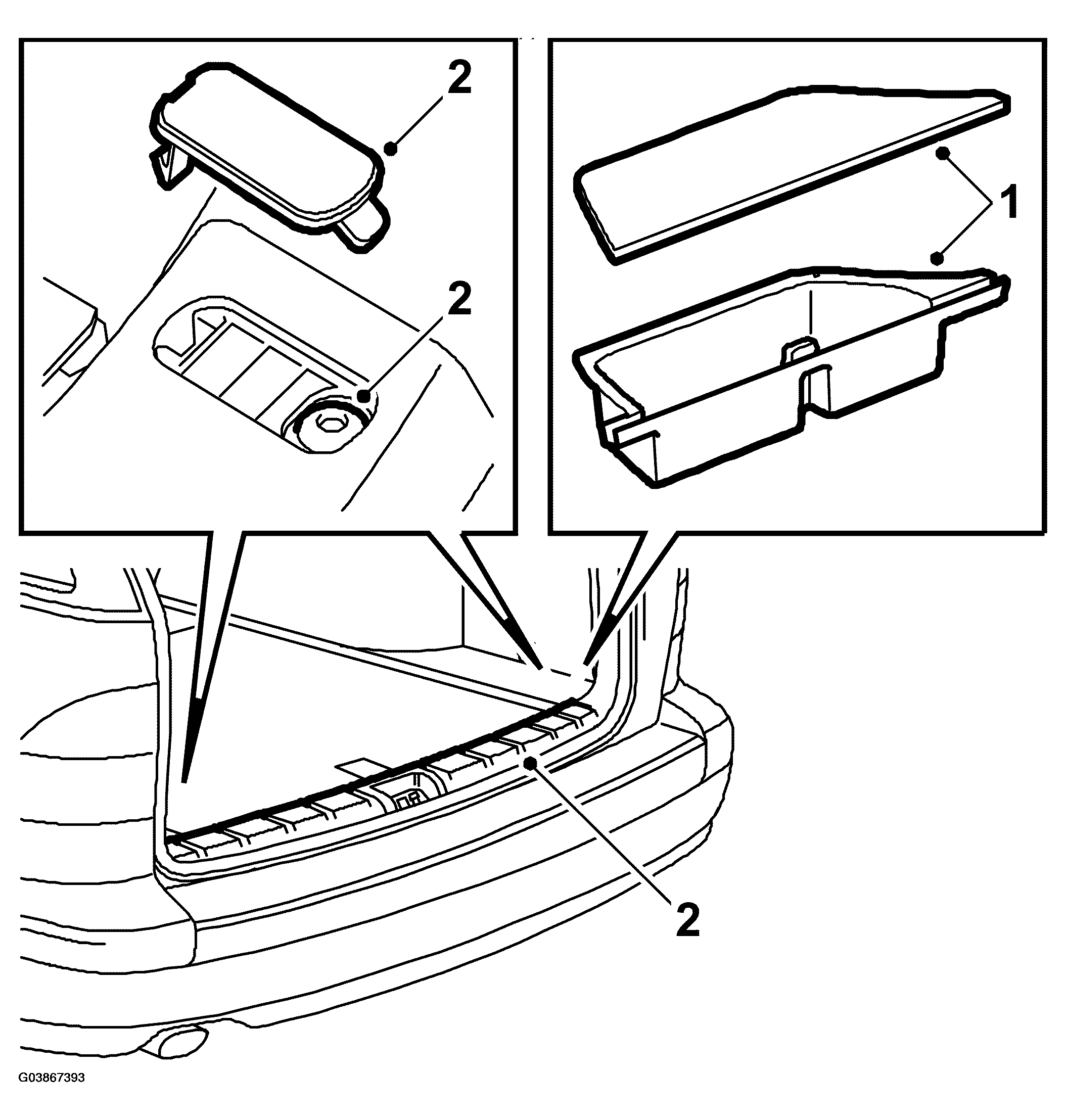

Fig 1: Illustration For Steps 1-2
G03867393Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Lift off the cover over the storage compartment and lift out the storage box.
  2. Remove the scuff plate, 2 covers, screws and clips.
  3. Detach the rear edge of the roof covering so that clearance for the D-pillar trim is obtained.

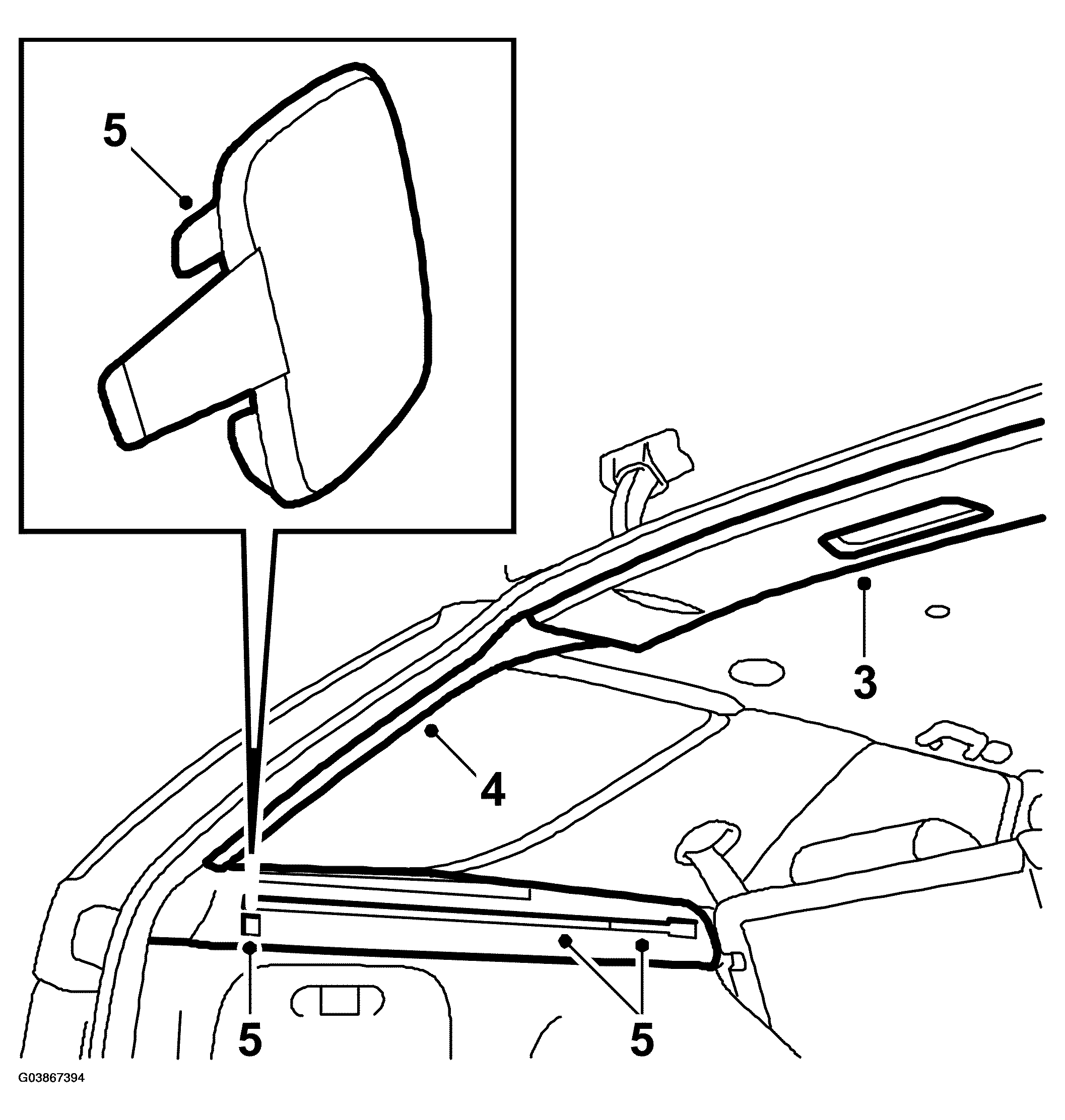

    Fig 2: Illustration For Steps 3-5
    G03867394Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Remove the D-pillar trim, fastened with clips.
  5. Remove the parcel shelf support, 1 cover and 3 screws.
  6. Remove the side bolster by first pulling the upper edge to release the catch. Then unhook the lower edge.

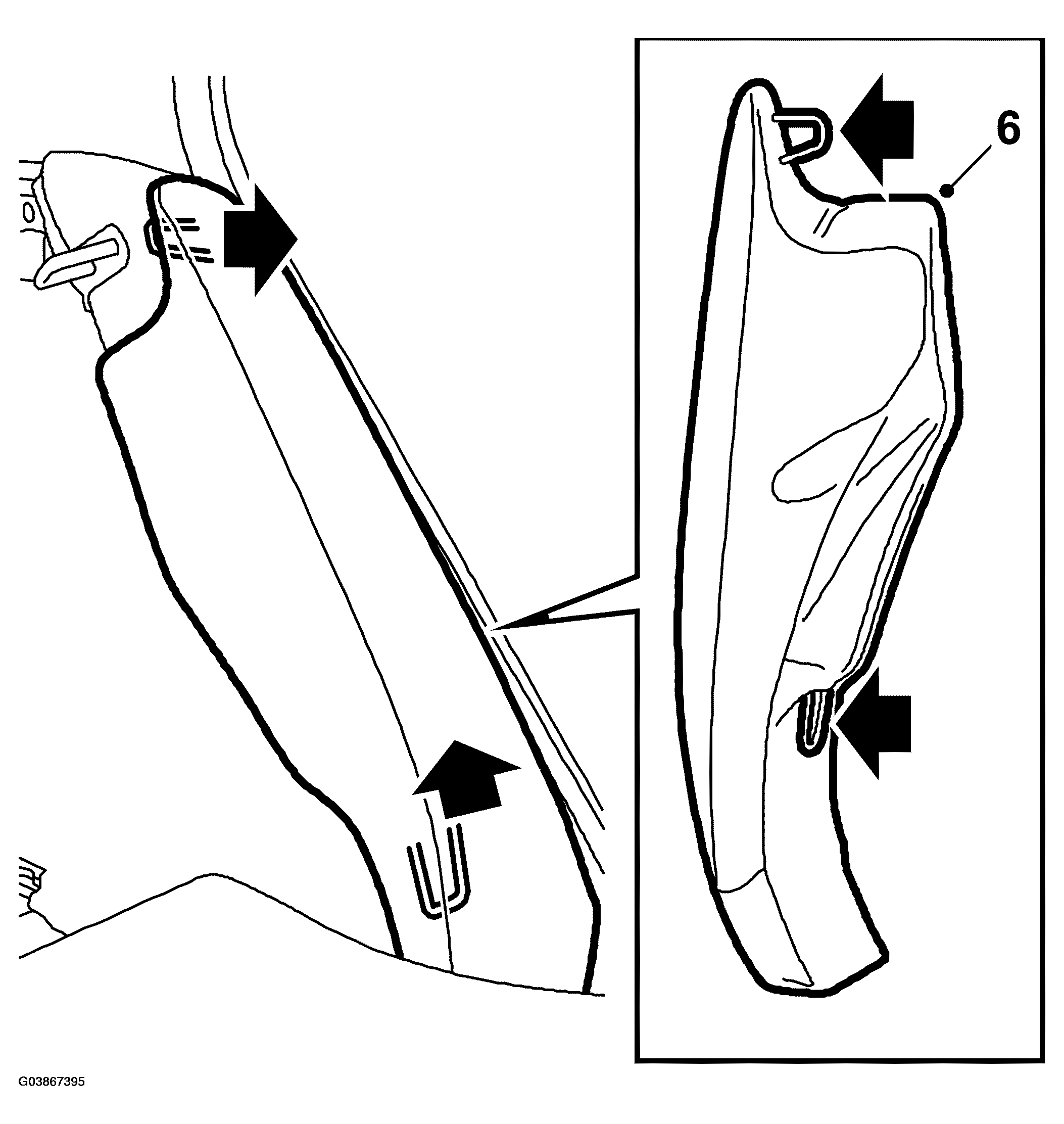

    Fig 3: Illustration For Step 6
    G03867395Courtesy of SAAB-SCANIA OF AMERICA, INC.
  7. Remove the 5 screws securing the top of the side trim.

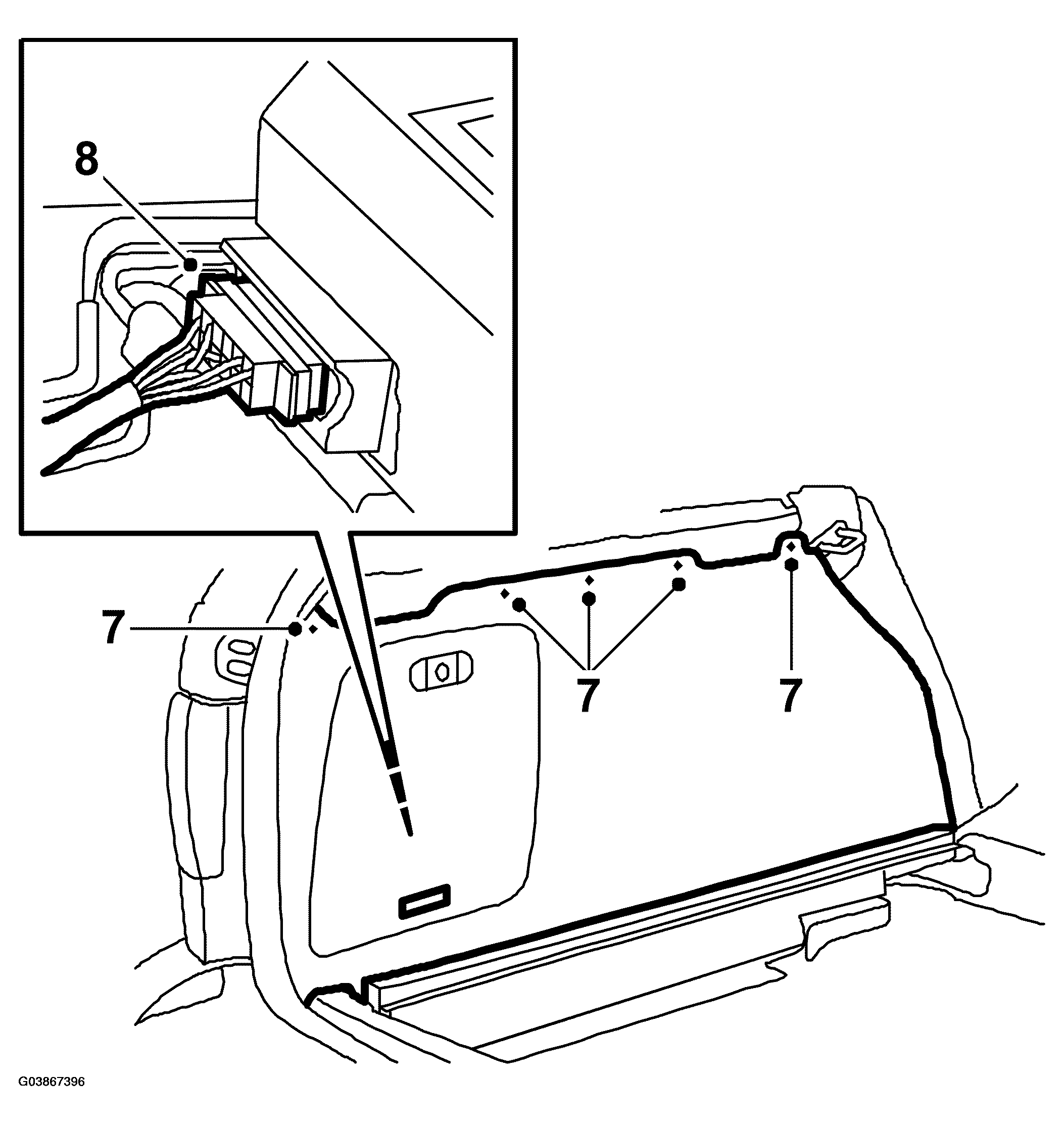

    Fig 4: Illustration For Steps 7-8
    G03867396Courtesy of SAAB-SCANIA OF AMERICA, INC.
  8. Fold out the side trim and unplug the connector for the CD player, if fitted.

    Lift out the side trim.
