To fit

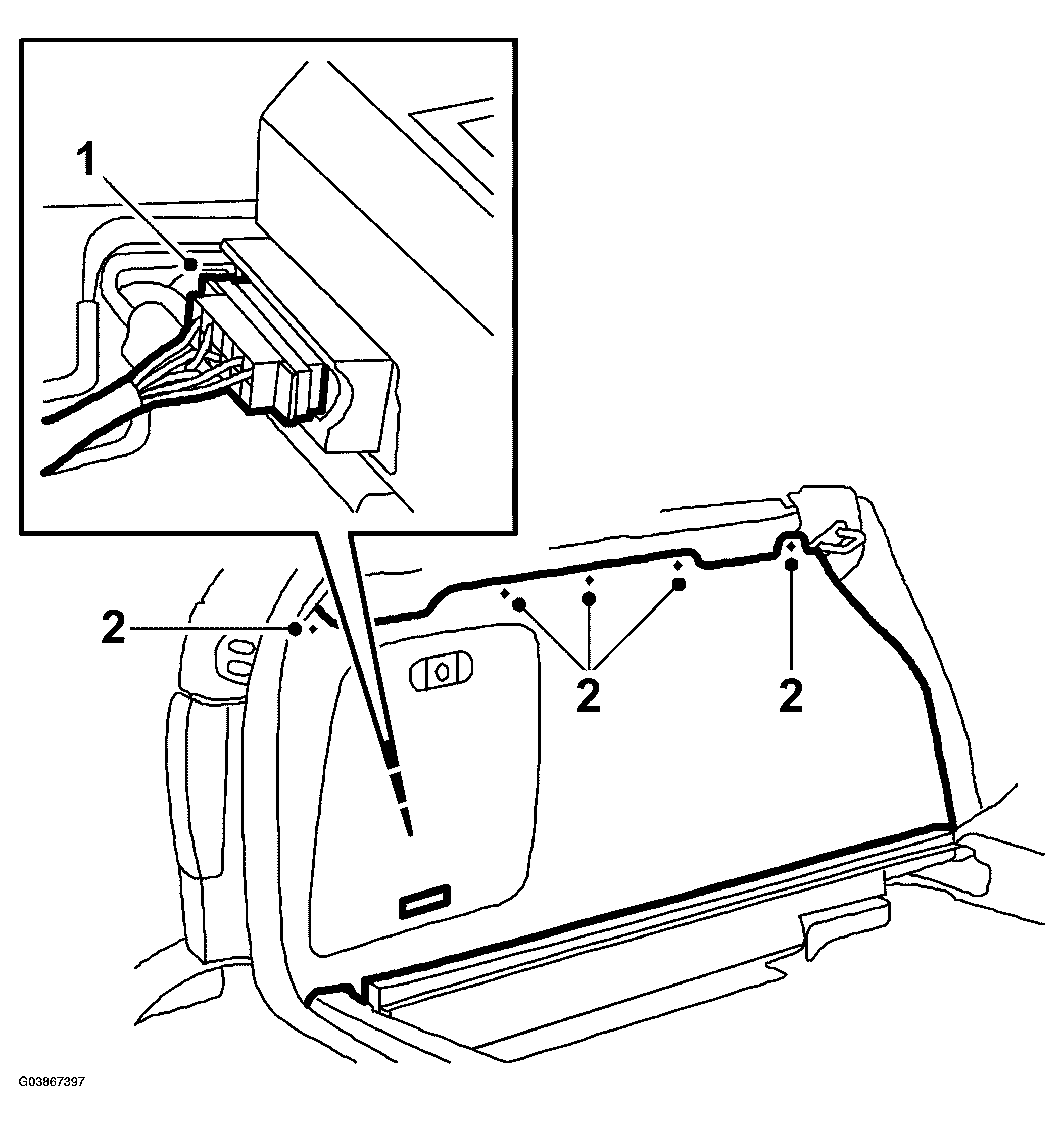

Fig 1: Illustration For Steps 1-2
G03867397Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Lift the side trim into place.

    Plug in the connector for the CD player, if fitted.

  2. Fit the screws securing the top of the side trim, starting with the rearmost screw so that the trim will be properly located.
  3. Fit the side bolster by first hooking in the lower edge. Then press the upper catch into place.

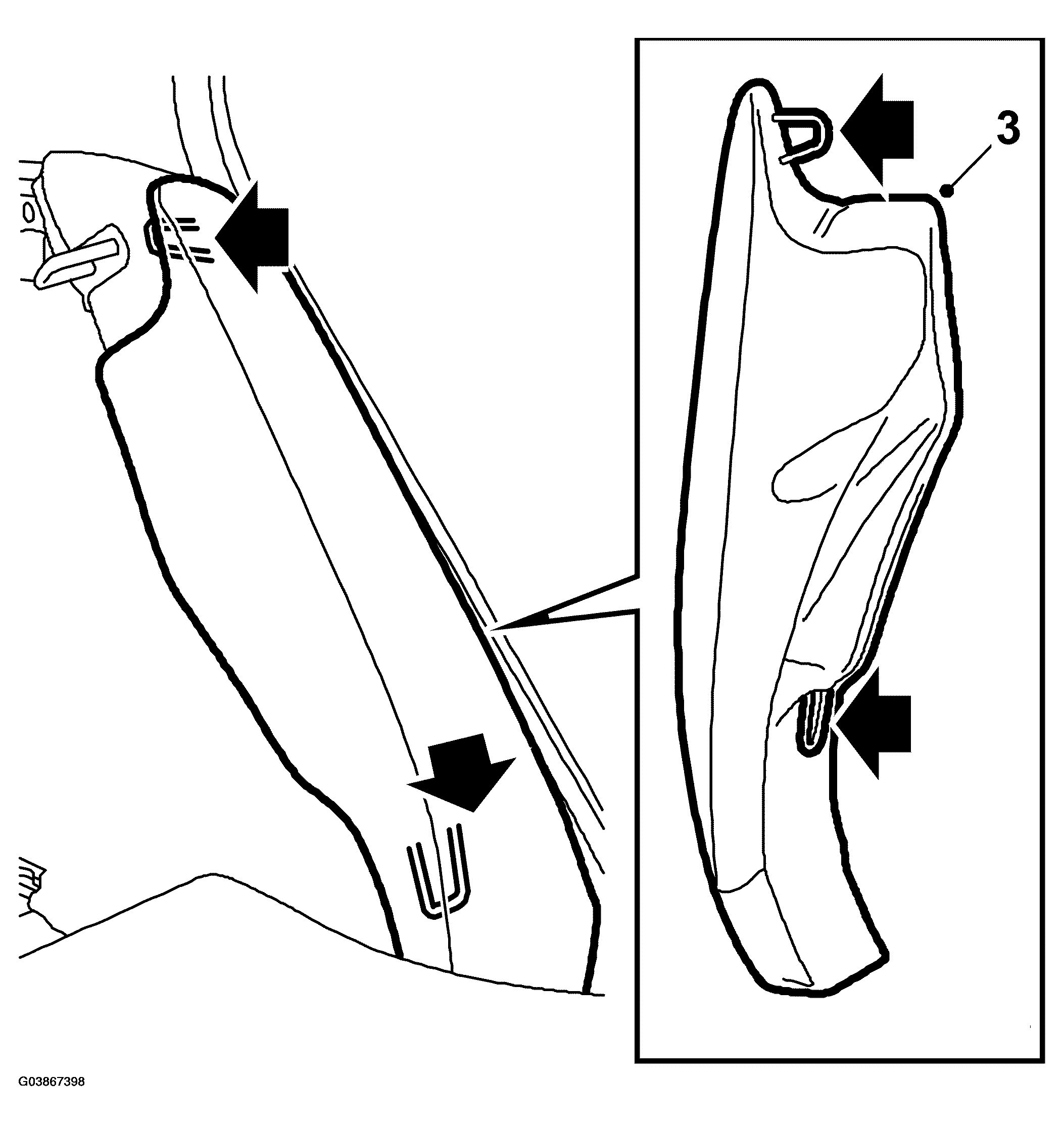

    Fig 2: Illustration For Step 3
    G03867398Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Fit the parcel shelf support, 3 screws and 1 cover.

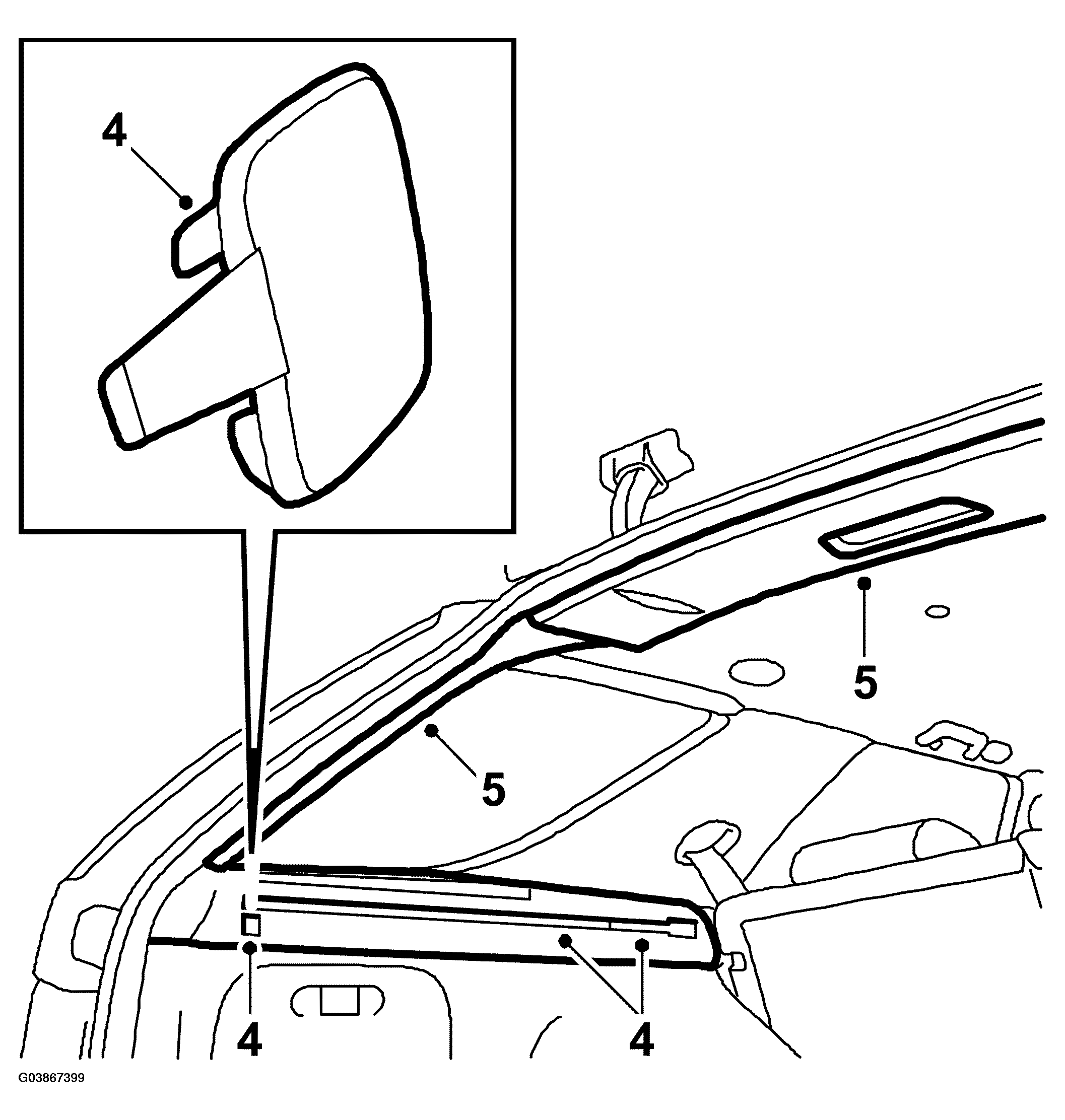

    Fig 3: Illustration For Steps 4-5
    G03867399Courtesy of SAAB-SCANIA OF AMERICA, INC.
  5. Fit the D-pillar trim, secured with clips. Press the rear roof covering into place.

    Adjust the weatherstrip over the edges of the D-pillar trim and roof covering.

  6. Fit the scuff plate, clips, 2 covers and screws. Adjust the position of the weatherstrip over the scuff plate.

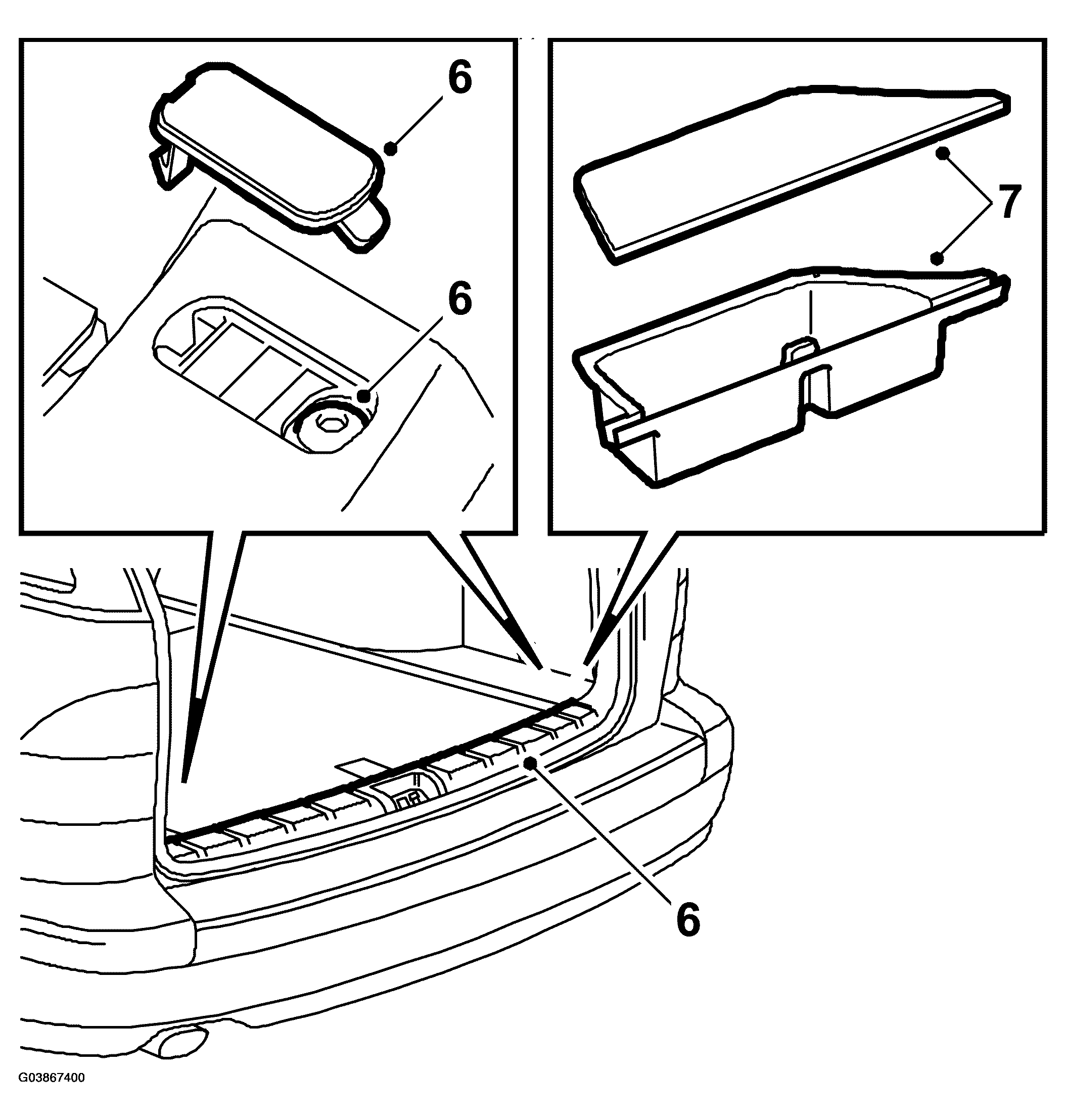

    Fig 4: Illustration For Step 6
    G03867400Courtesy of SAAB-SCANIA OF AMERICA, INC.
  7. Lift the storage box into place and fit the cover.
