To remove

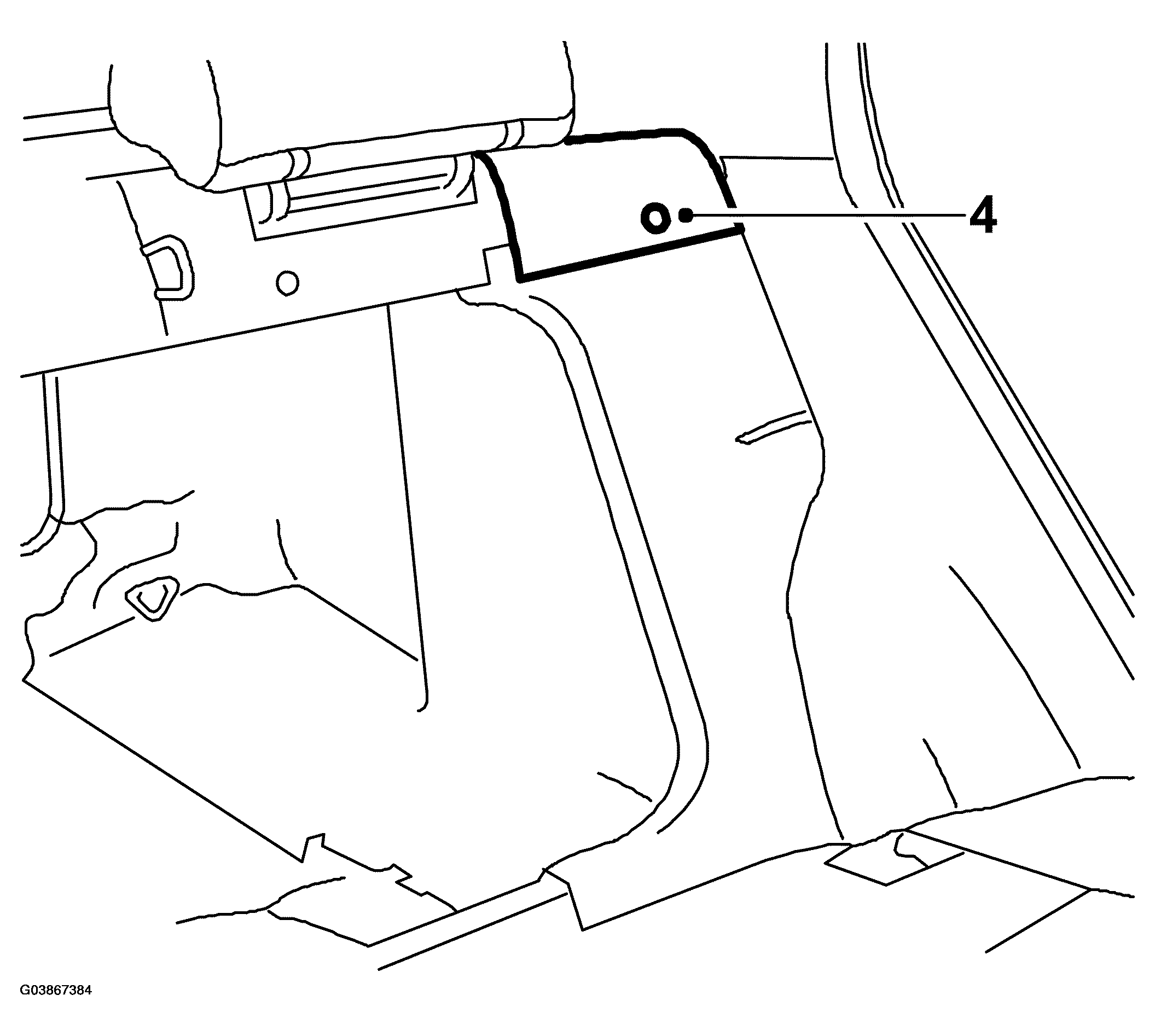

Fig 1: Illustration For Step 4
G03867384Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. If necessary, remove the CD changer on the left-hand side and/or the protective net on the right.
  2. Remove the scuff plate. See SIDE SCUFF PLATES  .
  3. Remove the floor panel.
  4. Remove the speaker grille from the parcel shelf on the side concerned (fastened with clips).
  5. Remove 3 plastic nuts holding the side trim.

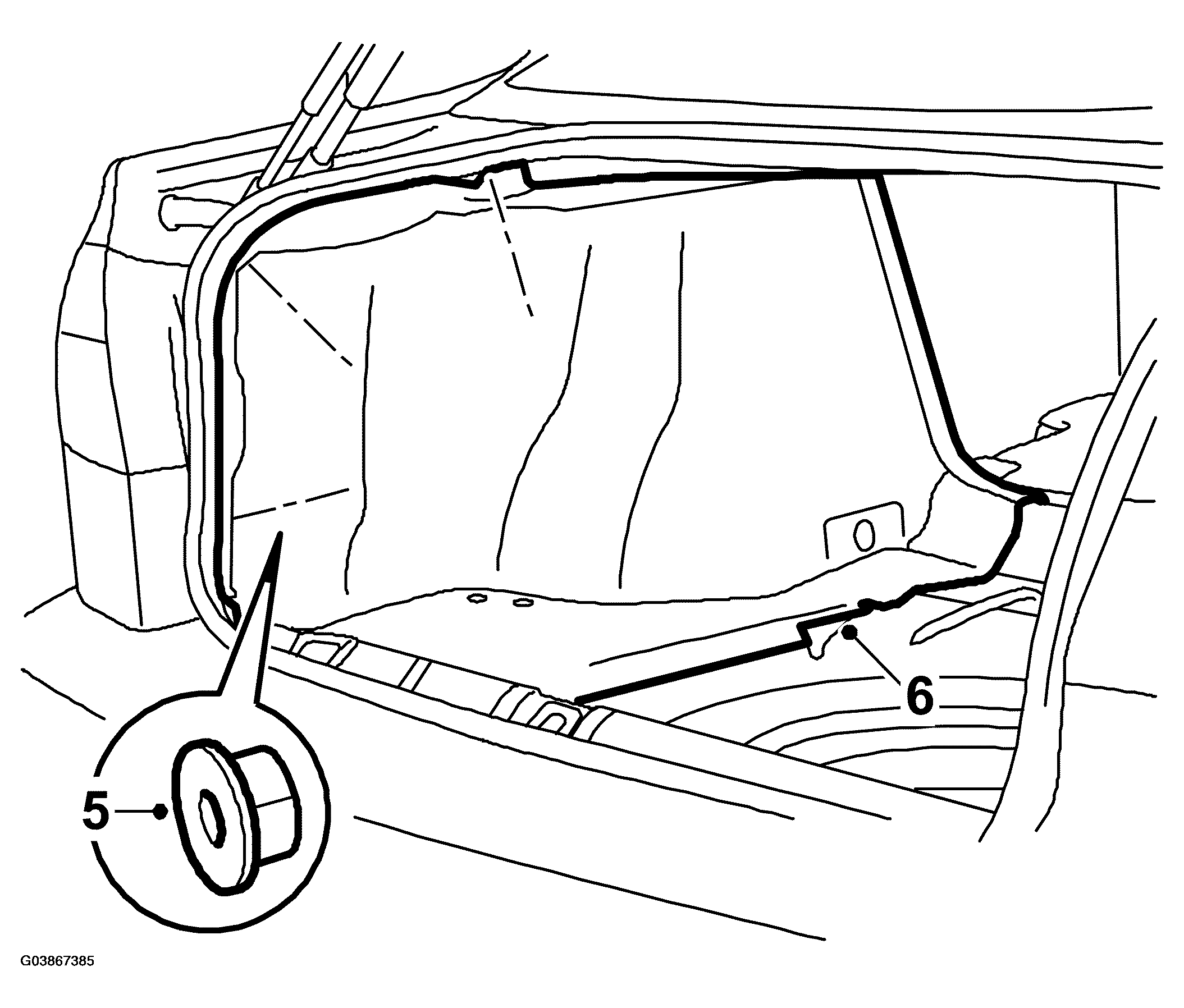

    Fig 2: Illustration For Steps 5-6
    G03867385Courtesy of SAAB-SCANIA OF AMERICA, INC.
  6. Lift out the side trim.
